SCUBA 600 Chrome pendant lamp 20W
Ref: 75753
Favourite
SCUBA 600 is a pendant lamp made of stainless steel and available in two sizes. It is designed for the exterior, but it also fits in several interior spaces. It has IP66, which gives it high protection against rain and solid bodies and a shock resistance of IK10. Industrial-style, the light beam is projected through one part of the tube. SCUBA can be installed directly on the ceiling or on the wall. It is equipped with an accessory (not included Ref. 75755), which can be used for both versions, to apply and to suspend.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Sales material
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: I
IP: 66
voltage: 100V-240V
Hertz: 50/60Hz
Cable length: 3000 mm
Max. Power: 20W
IK: 10
Material
Body/Structure: Stainless Steel 316L
Diffuser: PC
Finish
Body/Structure: Chrome
Diffuser: Opal
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Temperature: 3000K
Lumens: 3200lm
CRI: >80
Degrees of light aperture: 120º
Energy classification: B
Driver
Driver included: Yes
Sales material

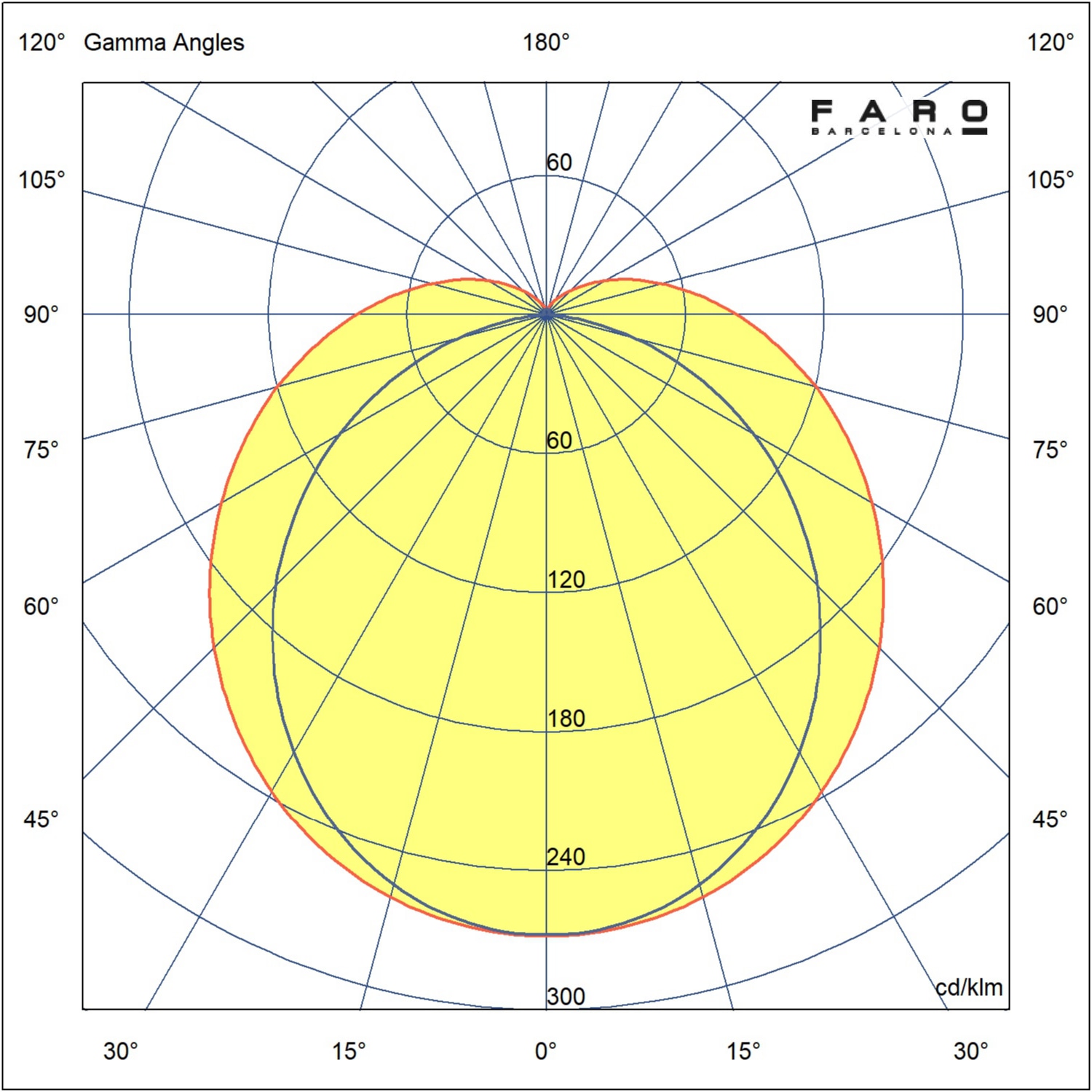

Dimensions and photometrics
