Ref: 02101501
Favourite
FOX 50 is a white round recessed lamp made of aluminium and easy to install. It is designed to lighting commercial and working spaces .
Collection
Related products
Catalog
Detachable and recyclable
Our products can be disassembled to facilitate the recycling of their components. Each component can be separated to ensure proper sorting and recycling. We contribute to a more sustainable future by promoting environmentally friendly practices from design to final disposal.
Technical features
View technical sheet
Download technical sheet
Instructions
Specifications
Recommended electrical equipment
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
III
IP:
20
Power supply current:
350 mA
Max. Power:
7W
Cutting size:
ø40mm
Material
Body/Structure:
Aluminium
Diffuser:
Glass
Finish
Body/Structure:
Matt White
Diffuser:
Transparent
Lighting characteristics
Light source included:
Yes
Light source:
COB LED
Dimmable:
Yes
Maximum ceiling thickness:
30mm
Temperature:
2700K
Lumens:
479lm
CRI:
>80
Degrees of light aperture:
36º
Energy classification:
F
Type of lighting:
ACENTO
Driver
Driver included:
No
Dimensions and photometrics
Download files
Download files
Technical data sheet
Instructions
Images

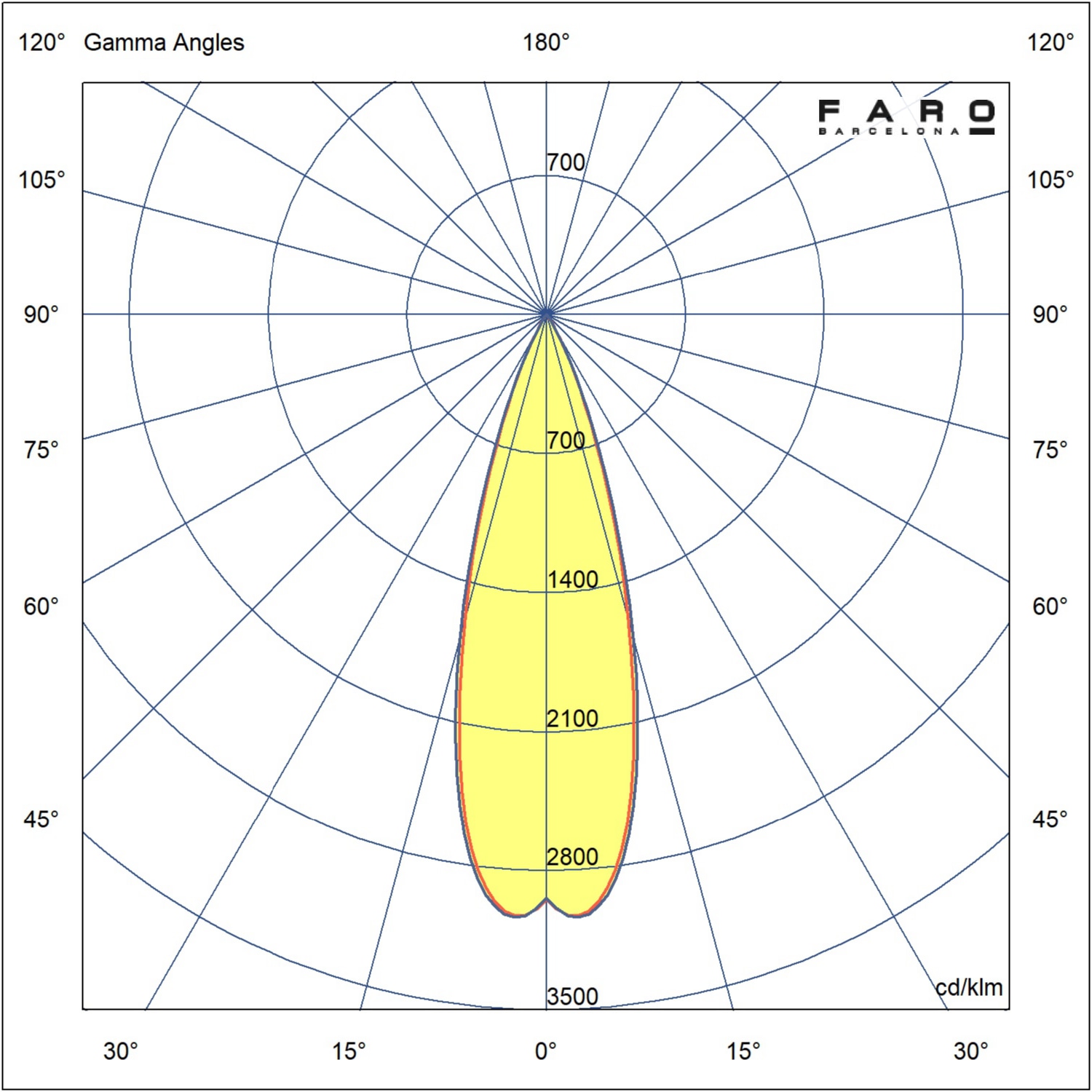

Photometric
2D / 3D
BIM
Energy label
