Home >  Collection >  INDOOR >  RECESSED >  Ceiling >  FOX Trimless black downlight 5W 2700K 25°
FOX Trimless black downlight 5W 2700K 25°
Ref: 02101102
Favourite
Black injected aluminium round spotlight, which its structure trimless enabling it to be discreetly integrated into the ceiling. FOX is designed for the illumination of commercial spaces and contract .
scroll to see more
Detachable and recyclable
Our products can be disassembled to facilitate the recycling of their components. Each component can be separated to ensure proper sorting and recycling. We contribute to a more sustainable future by promoting environmentally friendly practices from design to final disposal.
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Recommended electrical equipment
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: III
IP: 20
Power supply current: 500 mA
Max. Power: 5W
Cutting size: ø45mm
Material
Body/Structure: Aluminium
Diffuser: Glass
Finish
Body/Structure: Matt Black
Diffuser: Transparent
Lighting characteristics
Light source included: Yes
Light source: COB LED
Dimmable: Yes
Maximum ceiling thickness: >2mm
Temperature: 2700K
Lumens: 256lm
CRI: 90
Degrees of light aperture: 25º
Energy classification: G
Type of lighting: ACENTO
Driver
Driver included: No
Recommended electrical equipment
DRIVER 3-38W 300-1050mA DC10-54V Casambi See more
Architectural
DRIVER 3-38W 300-1050mA DC10-54V Casambi
Reference: 98310538
0.38-36W 350mA 2.5-50VDC DALI IND driver See more
Architectural
0.38-36W 350mA 2.5-50VDC DALI IND driver
Reference: 98310136D
0.38-36W 500mA 2.5-50VDC DALI IND driver See more
Architectural
0.38-36W 500mA 2.5-50VDC DALI IND driver
Reference: 98310336D
0.38-36W 350mA 2.5-50VDC IND driver See more
Architectural
0.38-36W 350mA 2.5-50VDC IND driver
Reference: 98310136
DRIVER 4-10W 350mA DC 12-28V TRIAC LC See more
Architectural
DRIVER 4-10W 350mA DC 12-28V TRIAC LC
Reference: 98310110LC
DRIVER 8-21W 500mA DC 16-42V TRIAC LC See more
Architectural
DRIVER 8-21W 500mA DC 16-42V TRIAC LC
Reference: 98310321LC
Dimensions and photometrics

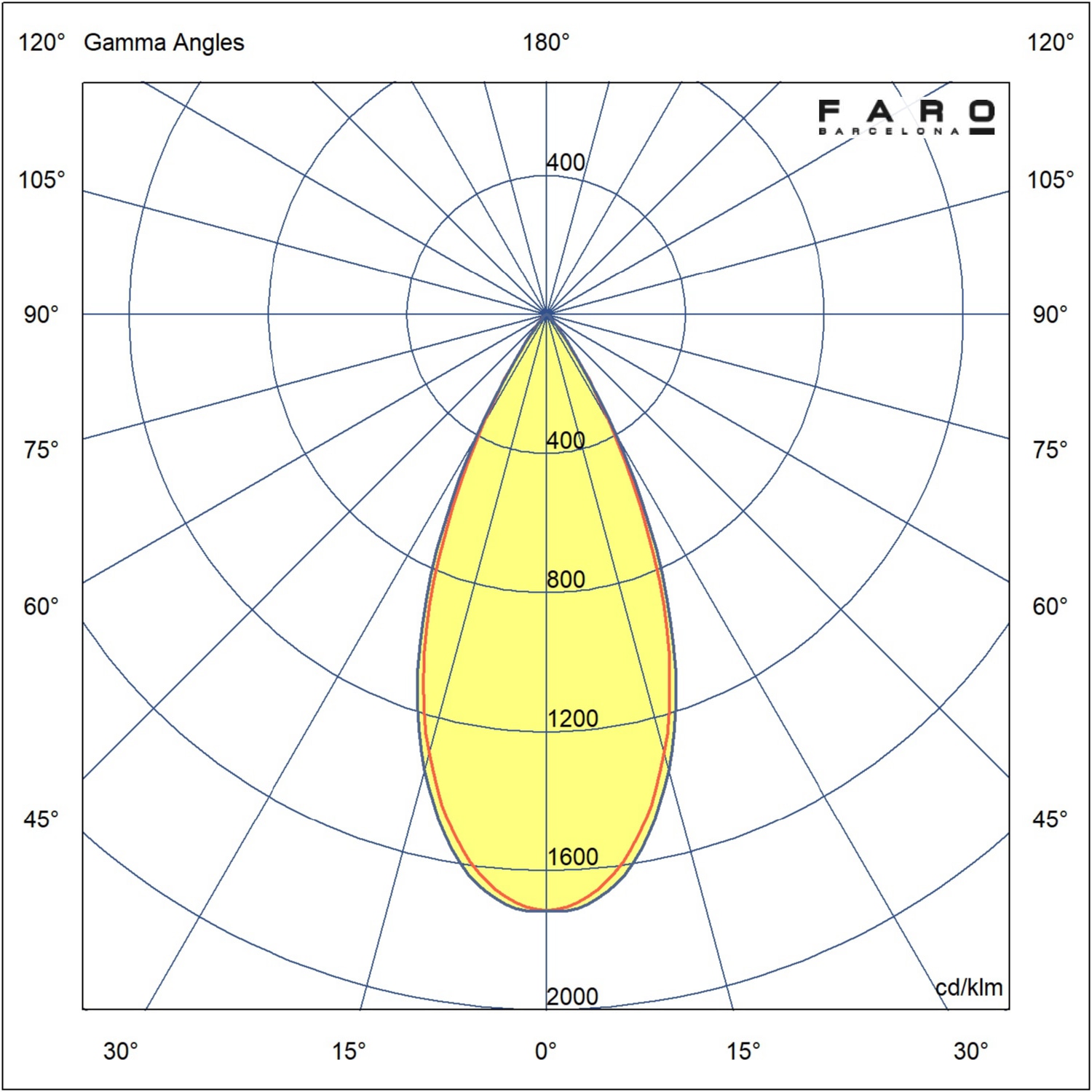

Technical drawing Photometric
