YAKARTA M Brown/walnut fan 110V

Related products

Ref: 33713-110

Favourite

Brown classic ceiling fan with 4 blades reversible. Its materials and finishes give it an attractive and elegant look. YAKARTA is ideal for the ventilation of rooms from 13 to 17'6m². Operated by pull chain. This fan has 3 adjustable speeds. A ceiling fan ideal for colonial environments.It comes with a reverse function, so you can also use it in winter. Airflow: 94,57 m3 min / 3340 CFM. Suitable for inclining roof and to be installed directly to the roof.

scroll to see more

Reverse function

Thanks to the reverse function, you can change the direction of the fan blades and use it both in summer and in winter. In summer, it will help achieve a cool atmosphere and in winter it will improve the efficiency of the heating system by making the hot air that accumulates in the ceiling circulate.

How to activate the fan

It as a chain system which is the simplest activation and easily locatable. Nevertheless, it is not the most recommended option for very high ceilings.

Diameter

It is very important to choose the right fan size by taking into account the size of the room. This “M” size fan is ideal for rooms between 13 and 17.6 m².

Installation for sloping ceilings

Suitable for sloping ceilings, which enables the shank to fall vertically so that the fan is always flat with respect to the ceiling and ensures the best operation and comfort.

Technical features

View technical sheet Download technical sheet

Specifications

General characteristics

Driver

General characteristics

Fixation: Ceiling

Type: I

IP: 20

voltage: 110V

Hertz: 50/60Hz

Fan Power (W): 14-23-51

Airflow (m3/min): 95

Airflow (CFM): 3354

RPM: 115-150-205

Reverse function: Yes

Engine type: AC

No. of blades: 4

Reversible blades: Yes

Pitched ceiling: Yes

Downrod diameter: 21

Material

Body/Structure: Steel

Blade material: Plywood

Finish

Body/Structure: Brown

Blade finish: Mahogany

Blade finish 2: Dark Walnut

Driver

Driver included: No

Additional information

Length of the included rods : 153

Optional downrod model: No dispone

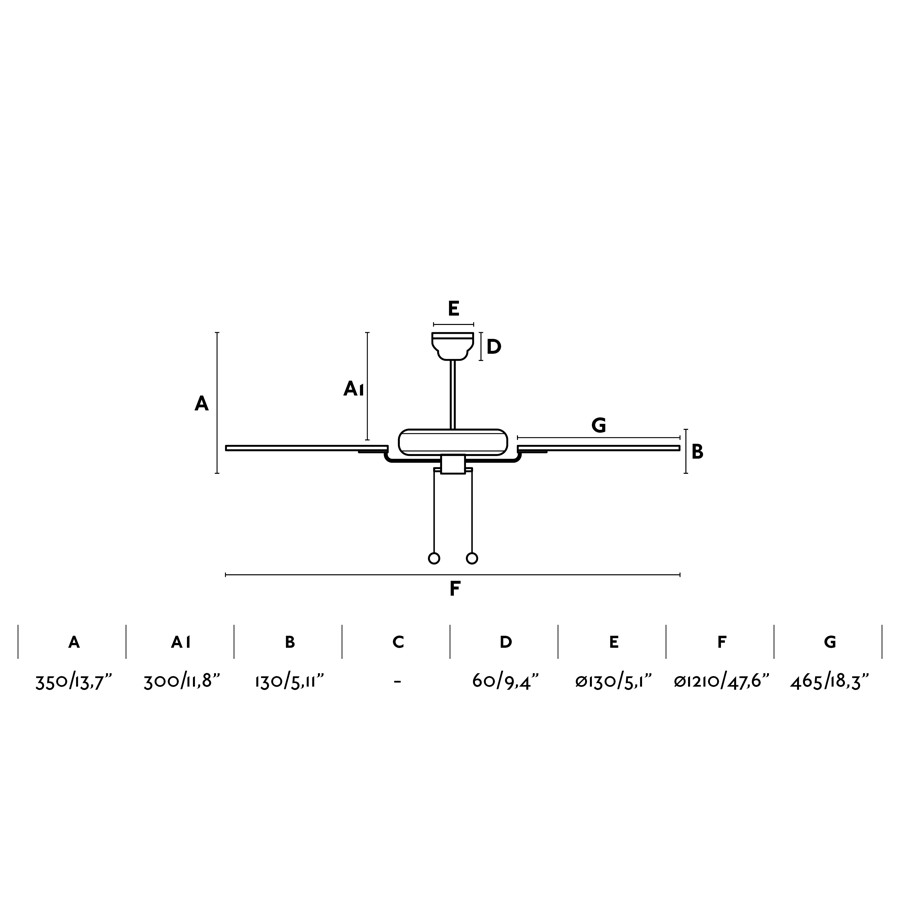

Measures
