Home Collection ARCHITECTURAL LINEAR SYSTEMS Ceiling VIA EVO surface 850 20W 4000K black prismatic DALI
VIA EVO surface 850 20W 4000K black prismatic DALI
Ref: 041006502DU
Favourite
System designed for the general lighting of spaces. VIA EVO enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or build different formats using corner luminaires or fittings. VIA EVO is a surface mounted luminaire in colour black with a length of 850 mm, with a colour temperature of 4000K , a power of 20W.
scroll to see more
ARCHITECTURAL CONFIGURATOR
Discover
Technical features
View technical sheet Download technical sheet Instructions
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling, Wall
Type: I
IP: 20
voltage: 220V-240V
Power supply current: 600 mA
Hertz: 50/60Hz
Max. Power: 20W
Material
Body/Structure: Aluminium
Diffuser: PMMA
Finish
Body/Structure: Black
Diffuser: Opal
Lighting characteristics
Light source: SMD LED
Dimmable: Yes
Temperature: 4000K
Lumens: 1786lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Degrees of light aperture: 23º
Energy classification: D
Type of lighting: AMBIENTAL
Driver
Driver included: Yes
Driver regulation: DALI

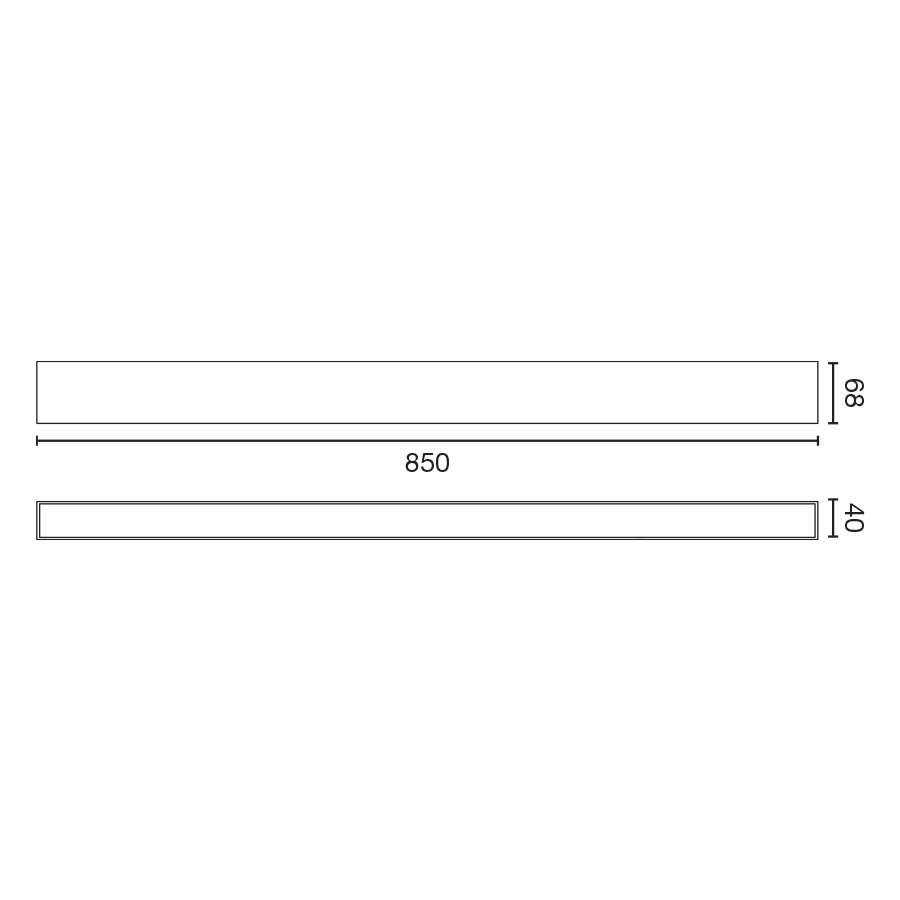

Dimensions and photometrics
Download files
Download files
Instructions
Technical data sheet
Instructions
Images

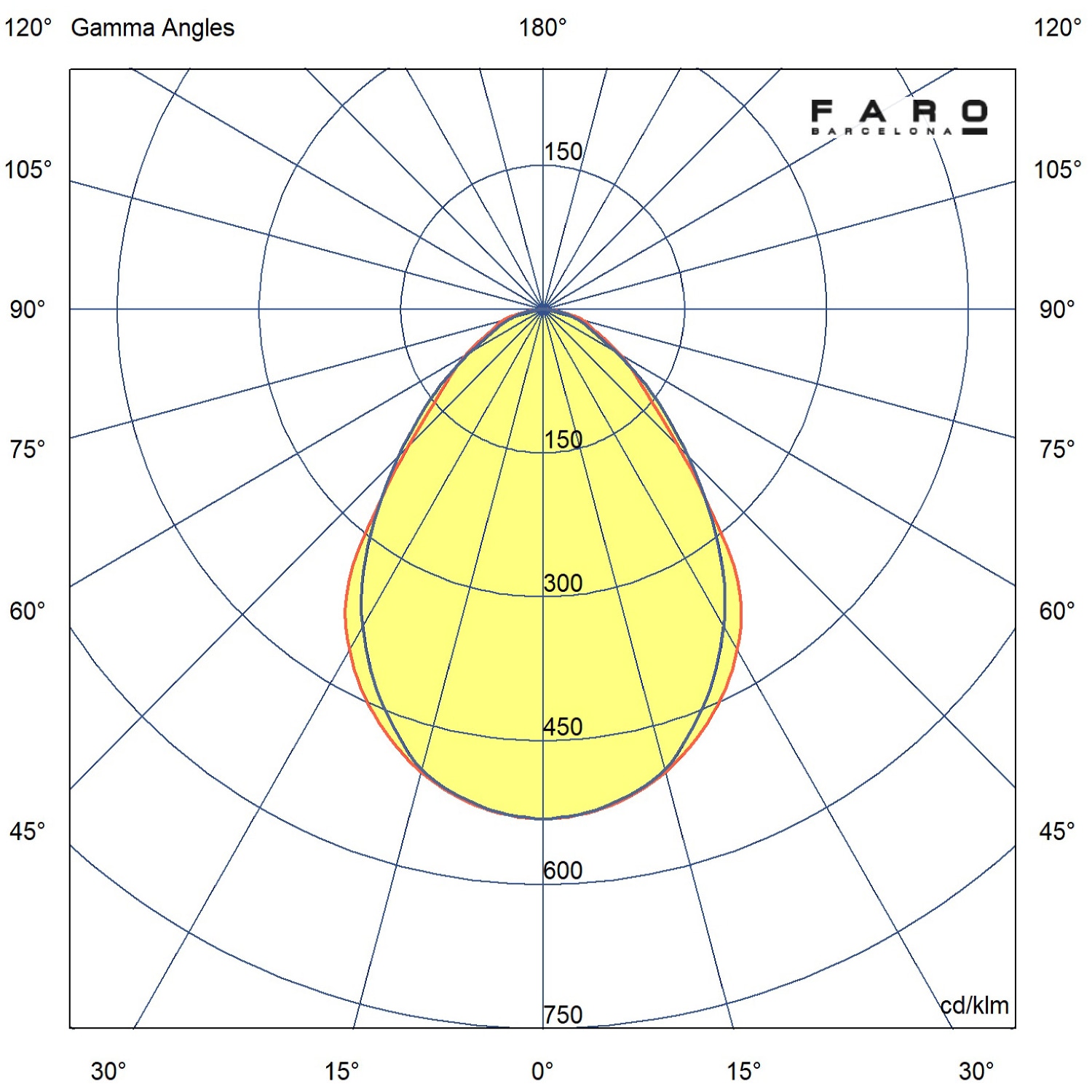

Photometric
