Home Collection ARCHITECTURAL LINEAR SYSTEMS Ceiling VIA EVO up&down 1130 UGR
VIA EVO up&down 1130 UGR<16 3000K 50° white DALI
Ref: 042021101D5-110
Favourite
System designed for the general lighting of spaces. VIA EVO enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or build different formats using corner luminaires or fittings. VIA EVO is a up&down luminaire in colour white with a length of 1130 mm, with a colour temperature of 3000K, CRI80, an angle of 50° and a control system DALI. Its UGR<16 makes it an ideal choice for office applications.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: I
IP: 20
voltage: 110V
Hertz: 50/60Hz
Max. Power: 24+32W
Control system: DALI
Material
Body/Structure: Aluminium + PC
Finish
Body/Structure: White
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: No
Temperature: 3000K
Lumens: 3354+2664lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Type of lighting: AMBIENTAL
Incandescent filament: 650
Driver
Driver included: Yes
Driver regulation: DALI
Accesories

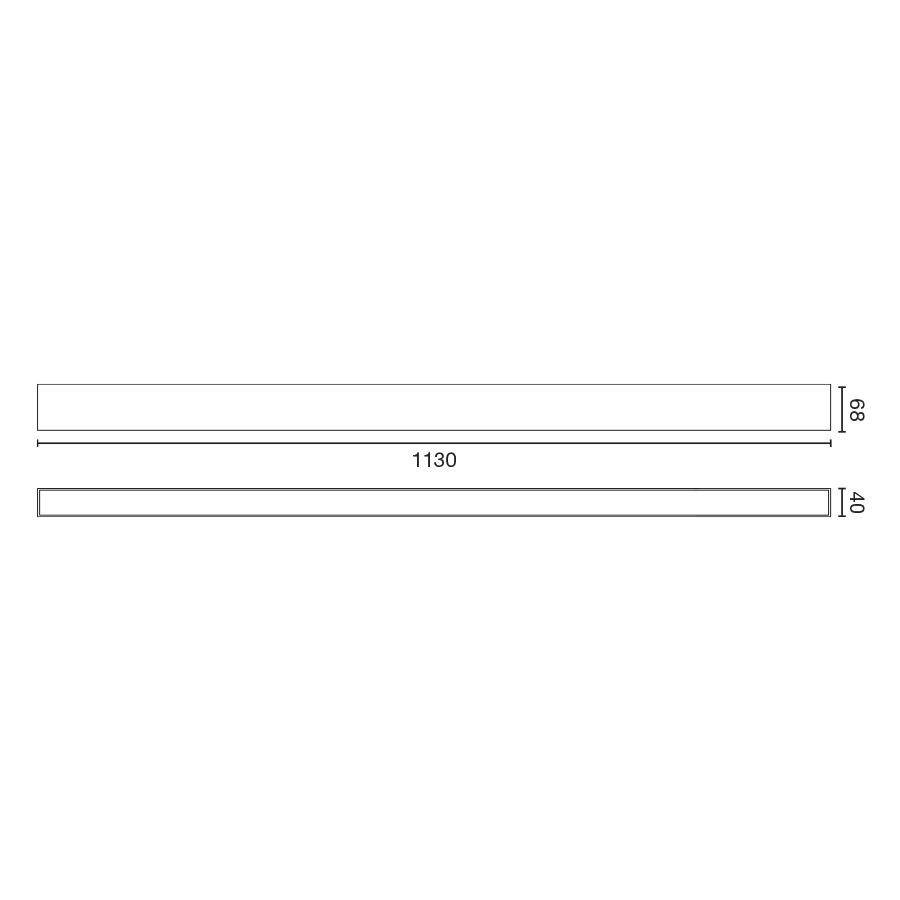

Measures
