Home Collection ARCHITECTURAL TRACK LUMINAIRE AND TRACKS Three-phase track VIA EVO TRACK 1130 surface white 16W UGR
VIA EVO TRACK 1130 surface white 16W UGR<19 3000K 80° DALI
Ref: 0410T1111D8-110
Favourite
System designed for the general lighting of spaces. VIA EVO TRACK enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or build different formats using corner luminaires or fittings. VIA EVO TRACK 80° is a surface luminaire in colour white with a length of 1130 mm and with a colour temperature of 3000K. Its UGR<19makes it an ideal choice for office applications. It also has a DALI control system.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Three-phase track
Type: I
IP: 20
voltage: 110V
Hertz: 50/60Hz
Max. Power: 25W
Control system: DALI
Material
Body/Structure: Aluminium + PC
Finish
Body/Structure: White+Gloss Black
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: Yes
Temperature: 3000K
Lumens: 3302lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Degrees of light aperture: 80º
Eficiencia: 134
Type of lighting: AMBIENTAL
Incandescent filament: 650
Driver
Driver included: Yes
Driver regulation: DALI
Accesories

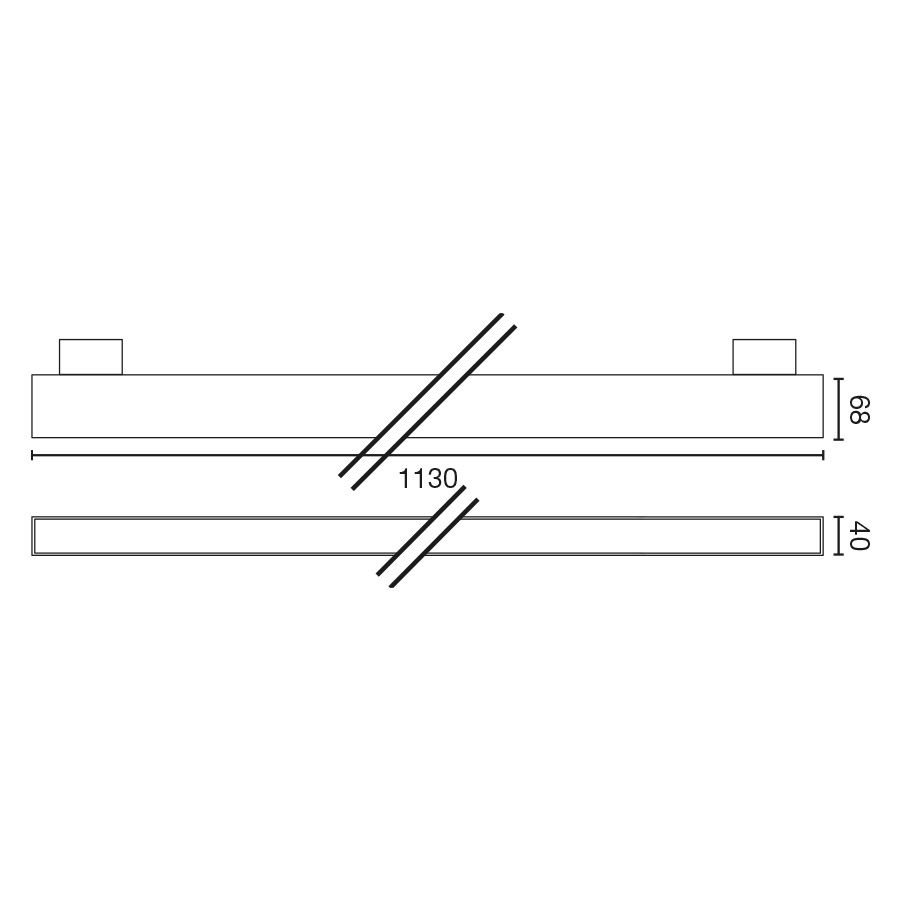

Measures
