VIA EVO surface 1130 UGR<19 4000K asymmetric black DALI
Ref: 041021202D0-110
Favourite

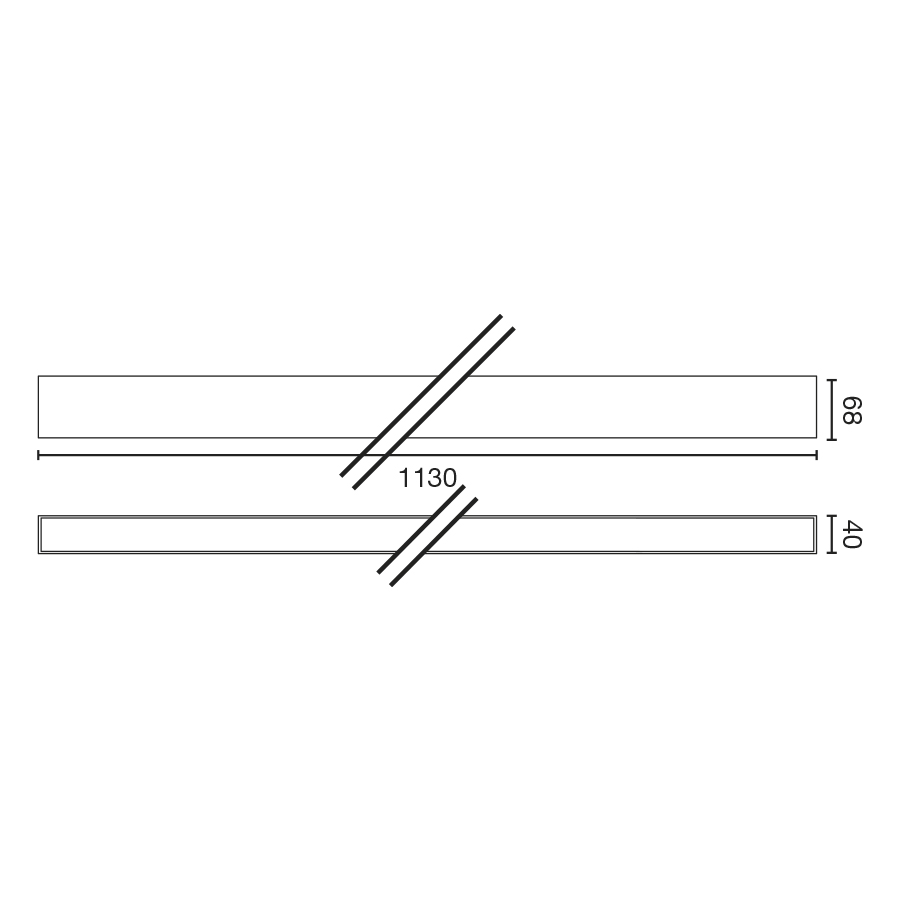

System designed for the general lighting of spaces. VIA EVO enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or build different formats using corner luminaires or fittings. VIA EVO is a surface asymmetric luminaire in colour black with a length of 1130 mm, with a colour temperature of 4000K and a control system DALI. Its UGR<19makes it an ideal choice for office applications.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling, Wall
Type: I
IP: 20
voltage: 110V
Hertz: 50/60Hz
Max. Power: 32W
Control system: DALI
Material
Body/Structure: Aluminium + PC
Diffuser: PMMA
Finish
Body/Structure: Black+Gloss Black
Diffuser: Opal
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: Yes
Temperature: 4000K
Lumens: 3851lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Degrees of light aperture: 90º
Energy classification: B
Eficiencia: 122
Type of lighting: AMBIENTAL
Incandescent filament: 650
Driver
Driver included: Yes
Driver regulation: DALI
