VIA EVO surface 1130 UGR<16 3000K 50° black
Ref: 0410211025-110
Favourite

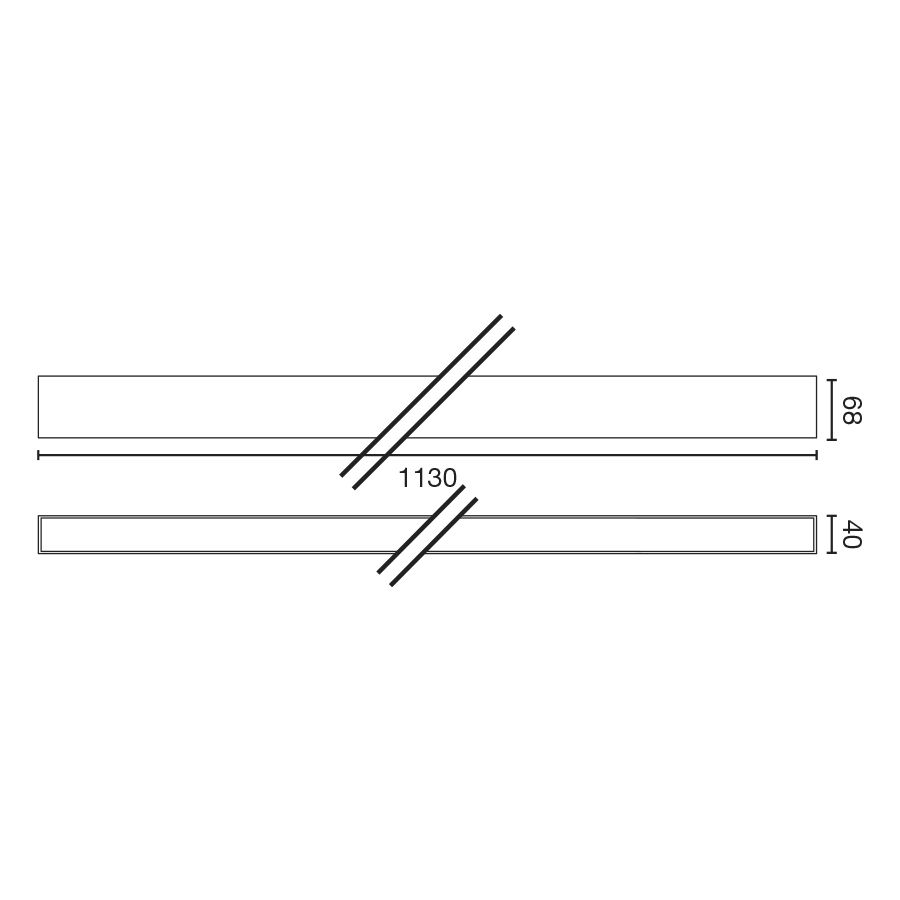

System designed for the general lighting of spaces. VIA EVO enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or build different formats using corner luminaires or fittings. VIA EVO is a surface luminaire in colour black with a length of 1130 mm, with a colour temperature of 3000K and an angle of 50°. Its UGR<16makes it an ideal choice for office applications.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling, Wall
Type: I
IP: 20
voltage: 110V
Power supply current: 800 mA
Max. Power: 32W
Material
Body/Structure: Aluminium + PC
Finish
Body/Structure: Black+Gloss Black
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: No
Temperature: 3000K
Lumens: 3989lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Degrees of light aperture: 50º
Energy classification: C
Type of lighting: AMBIENTAL
Driver
Driver included: Yes
Measures
