Home Collection ARCHITECTURAL LINEAR SYSTEMS Wall VIA EVO wall 850 20W 4000K black
VIA EVO wall 850 20W 4000K black
Ref: 041006552-110
Favourite
System designed for general lighting of spaces. VIA EVO enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or the building of different formats using light fixtures or corner accessories. VIA EVO is a surface lamp luminaire in colour black with a length of 850 mm, with a colour temperature of 4000K a power of 20W.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Wall
Type: I
IP: 20
voltage: 110V
Hertz: 50/60Hz
Max. Power: 20W
Control system: On/off
Material
Body/Structure: Aluminium + PC
Diffuser: PMMA
Finish
Body/Structure: Black
Diffuser: Opal
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: No
Temperature: 4000K
Lumens: 2195lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Degrees of light aperture: 110º
Energy classification: D
Eficiencia: 110
Type of lighting: AMBIENTAL
Incandescent filament: 650
Driver
Driver included: Yes
Accesories

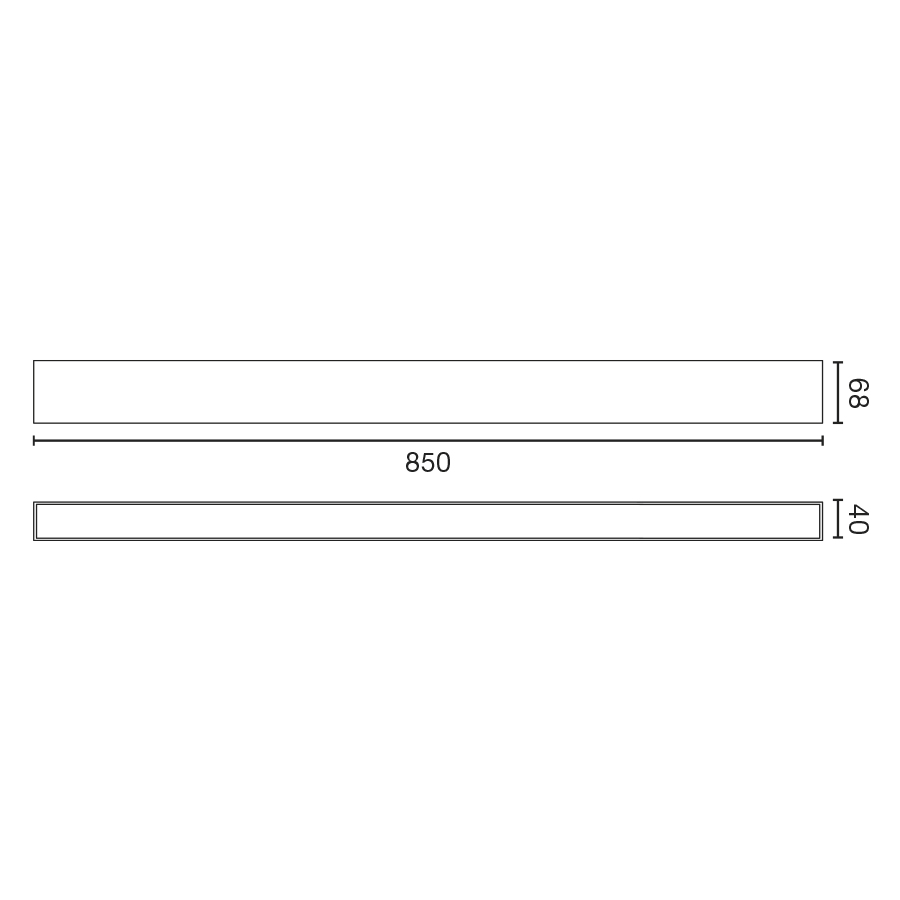

Measures
