VIA EVO recessed 1140 51W 4000K black DALI
Ref: 0410009002D-110
Favourite

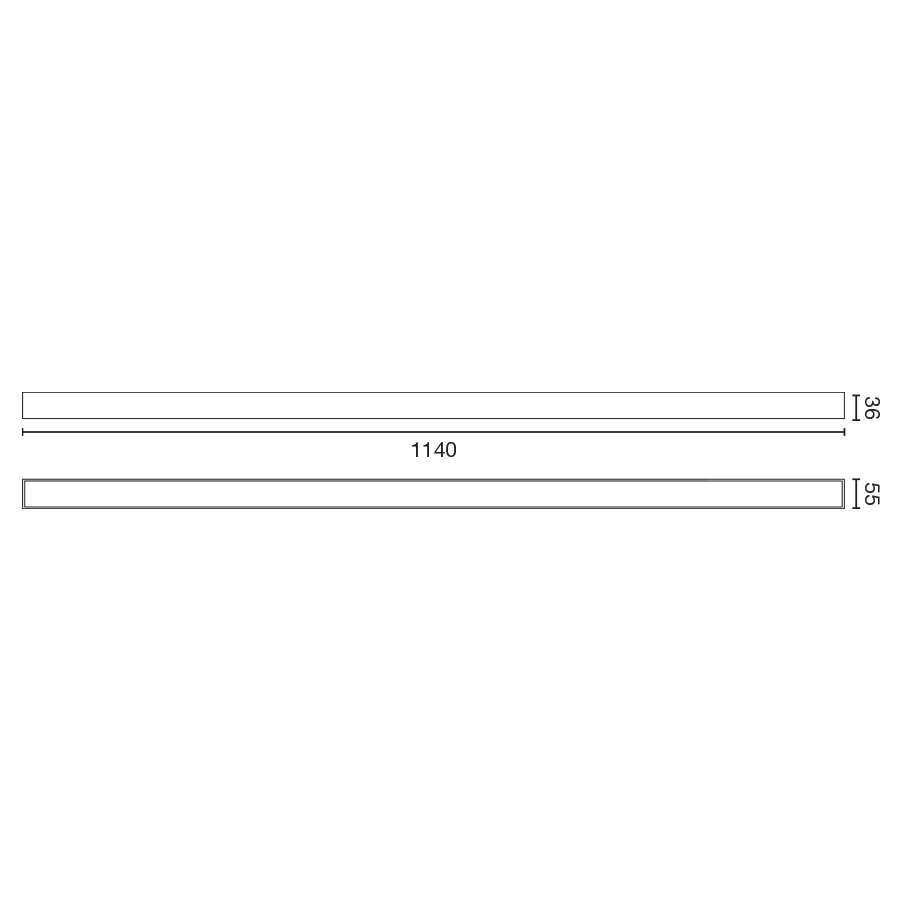

System designed for the general lighting of spaces. VIA EVO enables the creation of continuous lines of light with the accessory Ref.040000097 (not included). VIA EVO is a black recessed light fixture with a length of 1140 mm, with a colour temperature of 4000K, CRI80, a power of 51W and has the DALI control system.
scroll to see more
Technical features
View technical sheet
Download technical sheet
Instructions
Specifications
Accesories
General characteristics
Lighting characteristics
Driver
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
I
IP:
20
voltage:
110V
Hertz:
50/60Hz
Max. Power:
51W
Cutting size:
1134x50mm
Control system:
DALI
Minimum recessed height:
60mm
Material
Body/Structure:
Aluminium + PC
Diffuser:
PMMA
Finish
Body/Structure:
Black
Diffuser:
Opal
Lighting characteristics
Light source included:
Yes
Light source:
SMD LED
Dimmable:
Yes
Maximum ceiling thickness:
30mm
Lumens:
5265lm
CRI:
80
Lumen maintenance / LED lifespan:
50.000h L80 B10
Degrees of light aperture:
110º
Energy classification:
D
Eficiencia:
104
Type of lighting:
AMBIENTAL
Incandescent filament:
650
Driver
Driver included:
Yes
Driver regulation:
DALI
