VIA EVO recessed 860 20W 3000K white
Ref: 0410008301-110
Favourite
System designed for the general lighting of spaces. VIA EVO enables the creation of continuous lines of light with the accessory Ref.040000097 (not included). VIA EVO is a white recessed light fixture with a length of 860 mm, with a colour temperature of 3000K with CRI80 and a power of 20W.
scroll to see more
Technical features
View technical sheet
Download technical sheet
Instructions
Specifications
Accesories
General characteristics
Lighting characteristics
Driver
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
I
IP:
20
voltage:
110V
Hertz:
50/60Hz
Max. Power:
20W

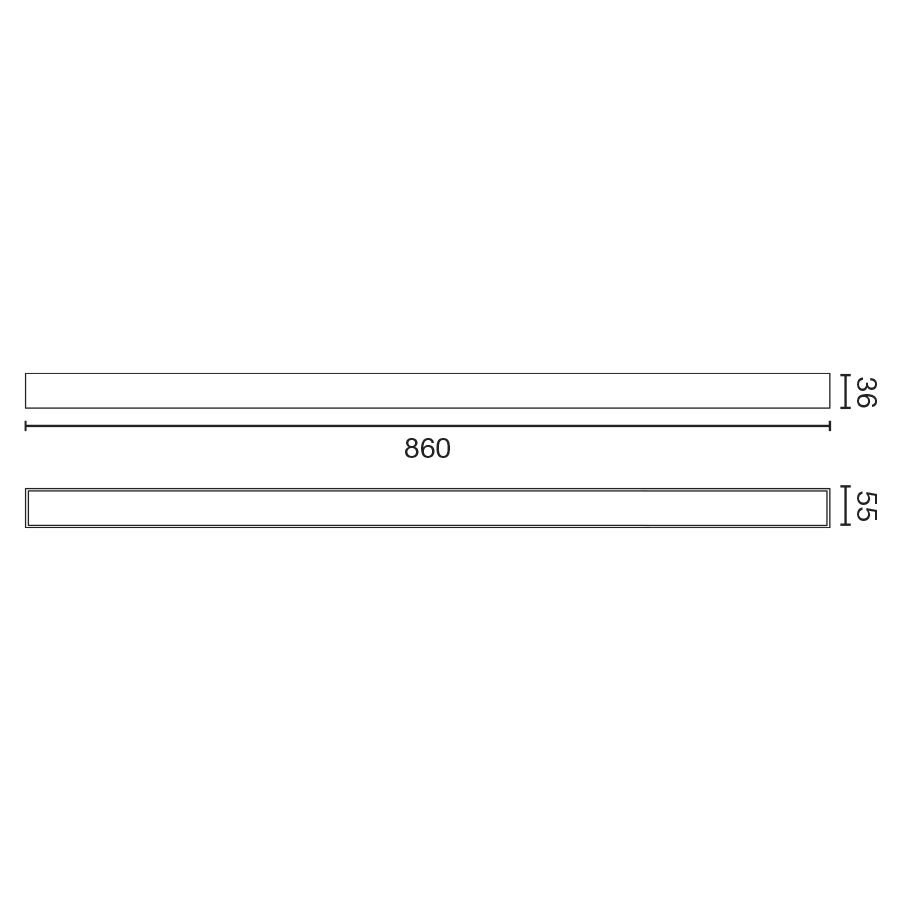

Cutting size:
854x50mm
Control system:
On/off
Minimum recessed height:
60mm
Material
Body/Structure:
Aluminium + PC
Diffuser:
PMMA
Finish
Body/Structure:
White
Diffuser:
Opal
Lighting characteristics
Light source included:
Yes
Light source:
SMD LED
Dimmable:
No
Maximum ceiling thickness:
30mm
Lumens:
2131lm
CRI:
80
Lumen maintenance / LED lifespan:
50.000h L80 B10
Degrees of light aperture:
110º
Energy classification:
C
Eficiencia:
108
Type of lighting:
AMBIENTAL
Incandescent filament:
650
