Home Collection ARCHITECTURAL LINEAR SYSTEMS Wall VIA L Surface prismatic TW white
VIA L Surface prismatic TW white
Ref: 041009511U
Favourite
VIA EVO L is a surface light fixture tunable white with a colour temperature of 2700-6500K with CRI>90. You can use it to create L configurations in the surface VIA EVO.
scroll to see more
ARCHITECTURAL CONFIGURATOR
Discover
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling, Wall
Type: I
IP: 20
voltage: 220V-240V
Hertz: 50/60Hz
Max. Power: 27W
Control system: DALI
Material
Body/Structure: Aluminium + PC
Diffuser: PMMA
Finish
Body/Structure: White
Diffuser: Prism
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: Yes
Temperature: 2700-6500K
Lumens: 2214lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Degrees of light aperture: 34º
Energy classification: F
Eficiencia: 82
Type of lighting: AMBIENTAL
Incandescent filament: 650
Driver
Driver included: Yes
Driver regulation: DALI
Accesories

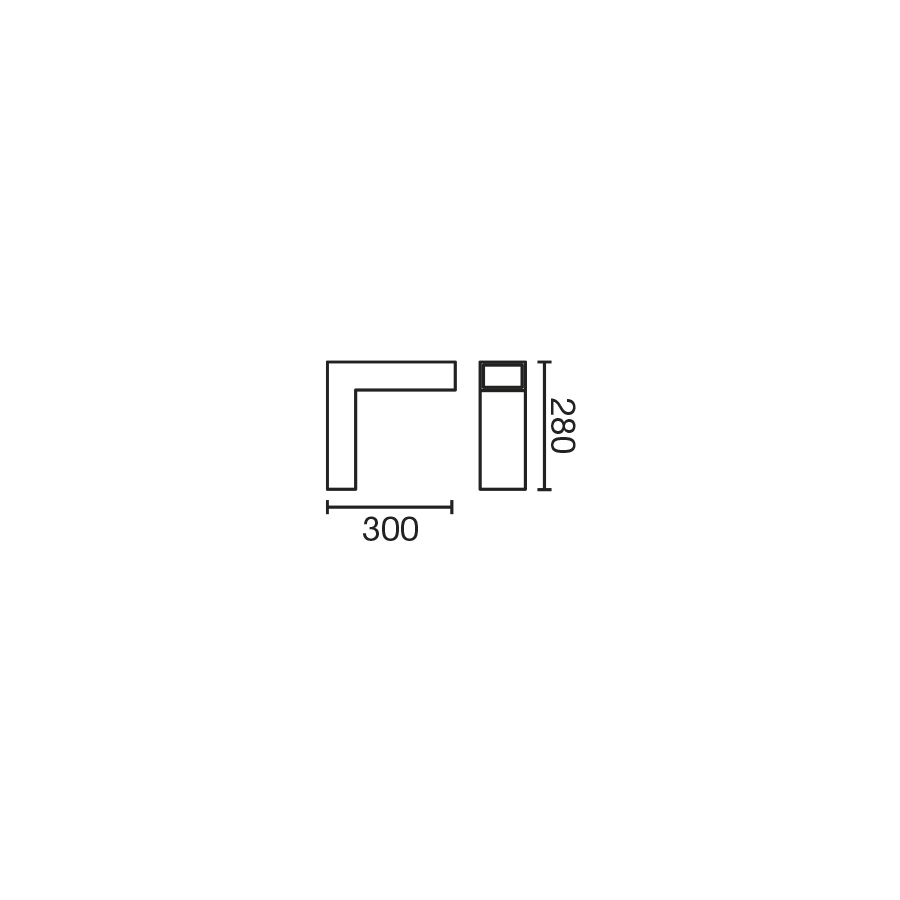

Measures
