Home >  Collection >  ARCHITECTURAL >  SPOTLIGHTS >  Three-phase track >  VIA EVO TRACK 1130 surface black UGR
VIA EVO TRACK 1130 surface black UGR<19 3000K 80° CASAMBI
Ref: 0410T1102W8
Favourite
System designed for the general lighting of spaces. VIA EVO TRACK enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or build different formats using corner luminaires or fittings. VIA EVO TRACK 80° is a surface luminaire in colour black with a length of 1130 mm and with a colour temperature of 3000K. Its UGR<19makes it an ideal choice for office applications. It also has a Casambi control system.
scroll to see more
Linear lighting system
VIA allows the creation of continuous lines of light. A system designed for general lighting of spaces such as offices.
Versatility
Linear luminaires in multiple sizes and configurations. Can be used in surface, suspended or recessed installations.
Connectivity
We work with the CASAMBI home automation system. This contributes to energy savings, improves the user experience and brings well-being to people.
  • Point to point control.
  • Program the switching on and off of luminaires.
  • Group the control of luminaires.
  • Create specific scenes and animations.
  • Create galleries for each type of space.
  • Modify the intensity of the light.
  • You can use the on/off installation only by changing the luminaires.
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Three-phase track
Type: I
IP: 20
voltage: 220V-240V
Hertz: 50/60Hz
Max. Power: 32W
Control system: CASAMBI
UGR: 19
Material
Body/Structure: Aluminium + PC
Diffuser: PMMA
Finish
Body/Structure: Black+Gloss Black
Diffuser: Transparent
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: Yes
Temperature: 3000K
Lumens: 4104lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Degrees of light aperture: 80º
Energy classification: C
Eficiencia: 130
Type of lighting: AMBIENTAL
Incandescent filament: 650
Driver
Driver included: Yes
Driver regulation: CASAMBI
Accesories
VIA EVO Accessory to continuous lines See more
Architectural
VIA EVO Accessory to continuous lines
Reference: 040000097
Dimensions and photometrics

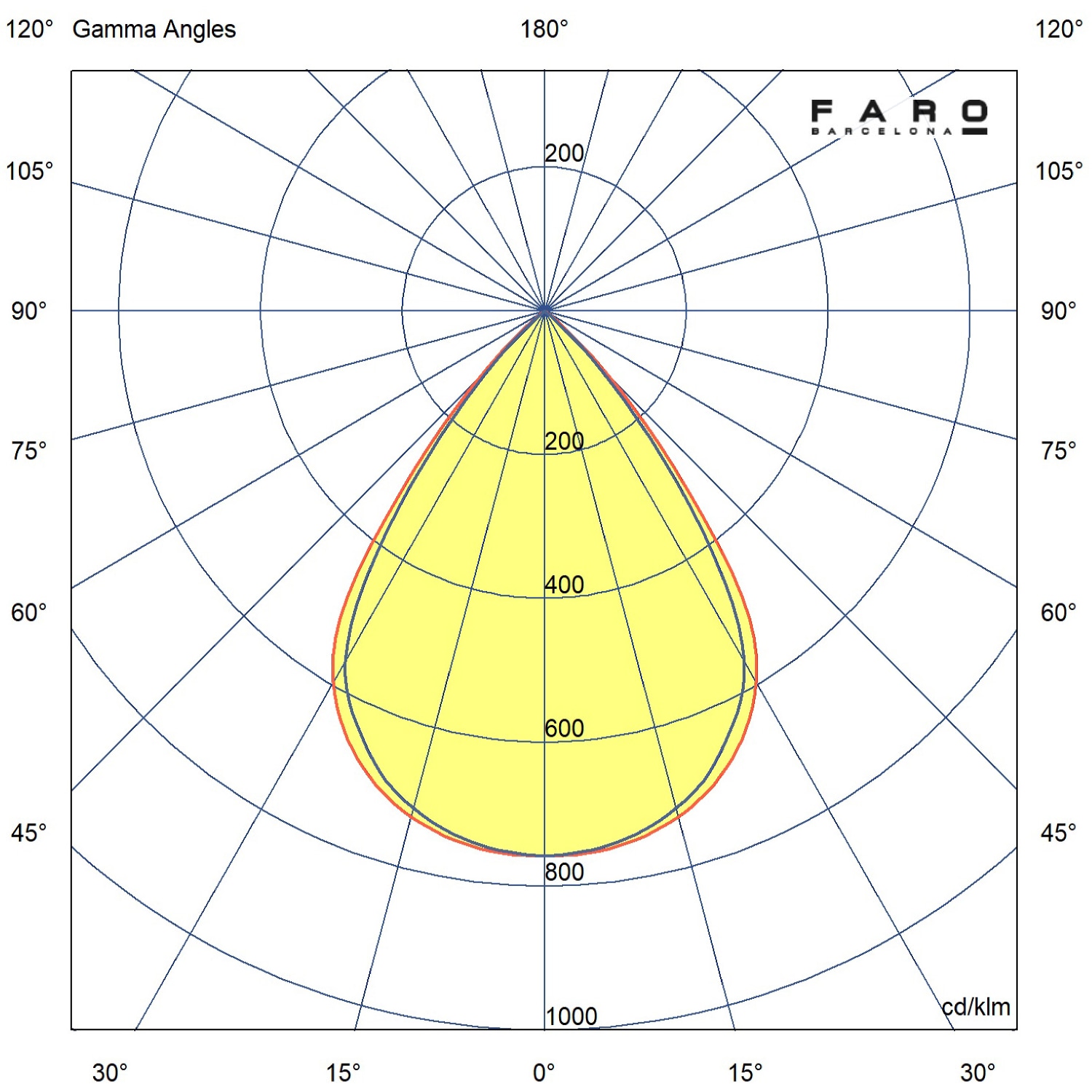

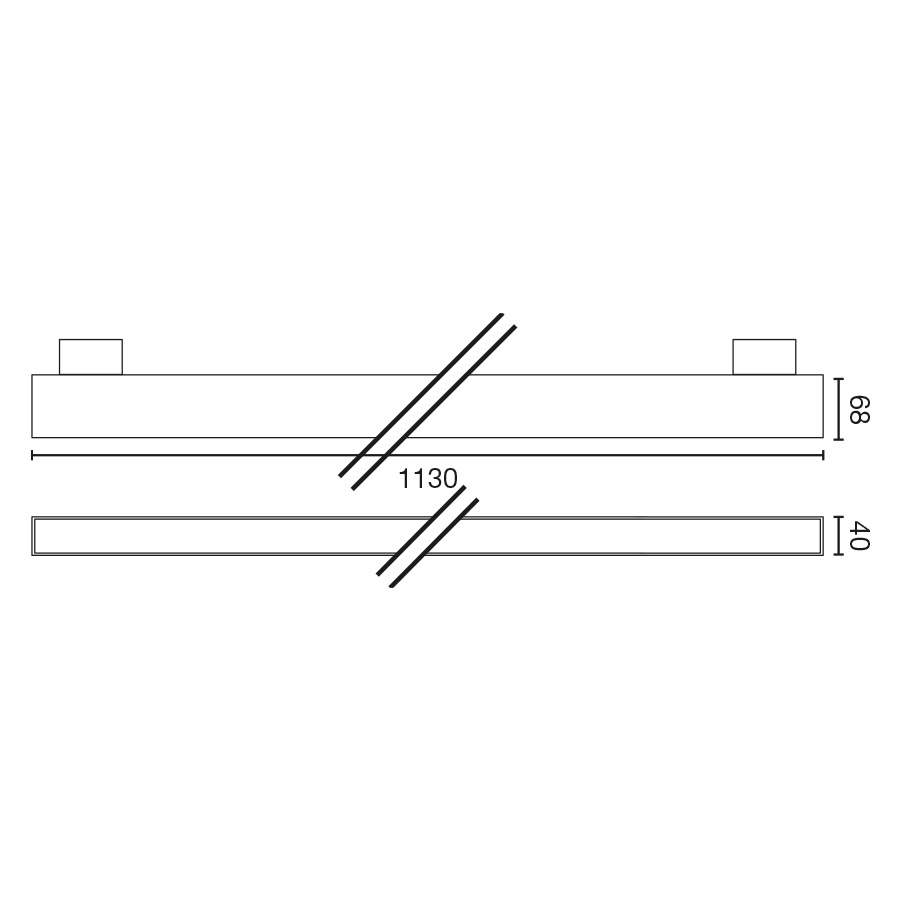

Technical drawing Photometric
Download files
Download files
Instructions
Technical data sheet
Instructions
Images
Photometric
Technical Files
Energy label
