Home Collection ARCHITECTURAL TRACK LUMINAIRE AND TRACKS Three-phase track VIA EVO TRACK 1130 surface black UGR
VIA EVO TRACK 1130 surface black UGR<16 50° DALI
Ref: 0410T01025
Favourite
System designed for the general lighting of spaces. VIA EVO TRACK enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or build different formats using corner luminaires or fittings. VIA EVO TRACK is a surface luminaire in colour negre with a length of 1130 mm, an angle of 50° and a control system DALI. Its UGR<16 makes it an ideal choice for office applications.
scroll to see more
Linear lighting system
VIA allows the creation of continuous lines of light. A system designed for general lighting of spaces such as offices.
Versatility
Linear luminaires in multiple sizes and configurations. Can be used in surface, suspended or recessed installations.
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Three-phase track
Type: I
IP: 20
voltage: 220V-240V
Hertz: 50/60Hz
Max. Power: 54W
Control system: DALI
UGR: 16
Material
Body/Structure: Aluminium + PC
Diffuser: PMMA
Finish
Body/Structure: Black+Gloss Black
Diffuser: Transparent
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: Yes
Temperature: 2700-6500K
Lumens: 4830lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Degrees of light aperture: 50º
Energy classification: C
Eficiencia: 90
Type of lighting: AMBIENTAL
Incandescent filament: 650
Driver
Driver included: Yes
Driver regulation: DALI
Accesories

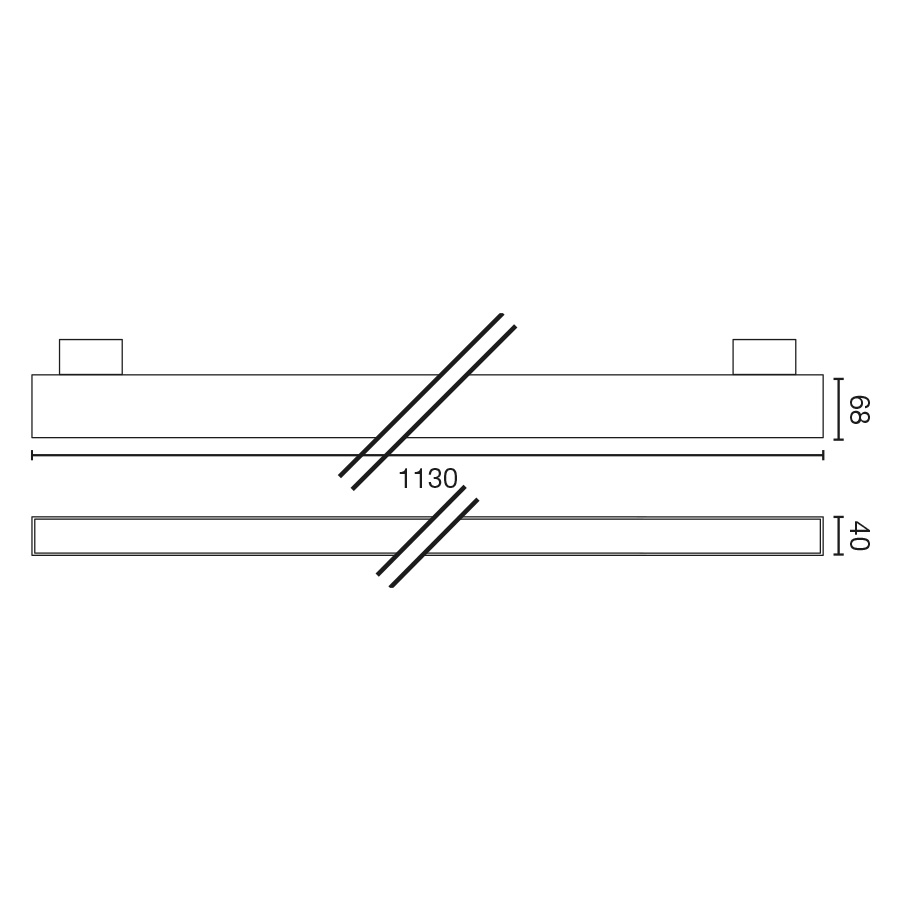

Dimensions and photometrics
Download files
Download files
Instructions
Technical data sheet
Instructions
Images

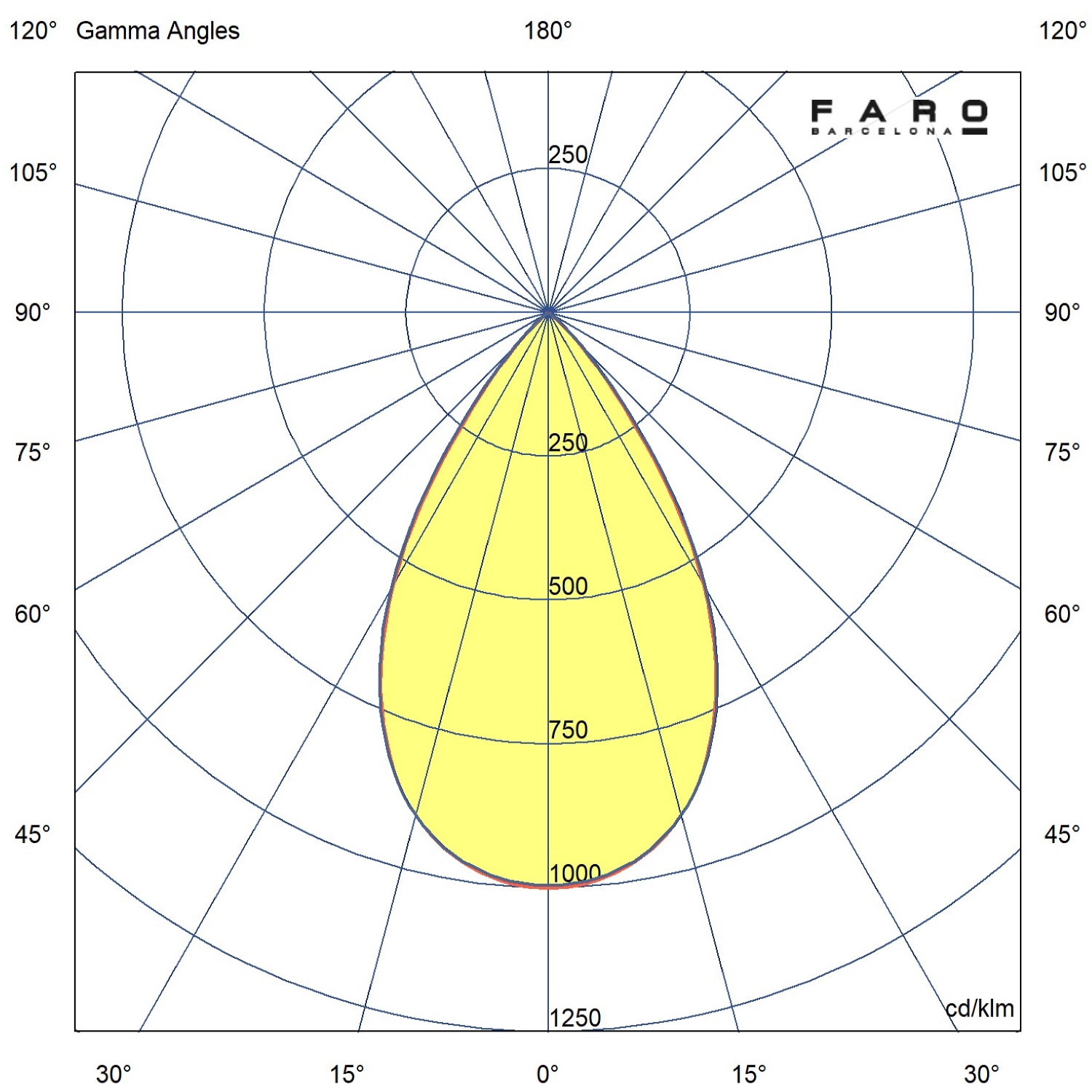

Photometric
