Home Collection ARCHITECTURAL LINEAR SYSTEMS Ceiling VIA EVO 1130 surface black 16W UGR
VIA EVO 1130 surface black 16W UGR<19 4000K Low Output asim Casambi
Ref: 041021212W0
Favourite
System designed for the general lighting of spaces. VIA EVO enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or build different formats using corner luminaires or fittings. VIA EVO 16W is a surface luminaire in colour black with a length of 1130 mm, with a colour temperature of 4000K, asymmetric and a control system Casambi. Its UGR<19makes it an ideal choice for office applications.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling, Wall
Type: I
IP: 20
voltage: 220V-240V
Hertz: 50/60Hz
Max. Power: 17W
Control system: CASAMBI
Material
Body/Structure: Aluminium + PC
Diffuser: PMMA
Finish
Body/Structure: Black+Gloss Black
Diffuser: Transparent
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: Yes
Temperature: 4000K
Lumens: 2169lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Degrees of light aperture: ASIMº
Energy classification: C
Eficiencia: 124
Type of lighting: AMBIENTAL
Incandescent filament: 650
Driver
Driver included: Yes
Driver regulation: 1-10V
Accesories

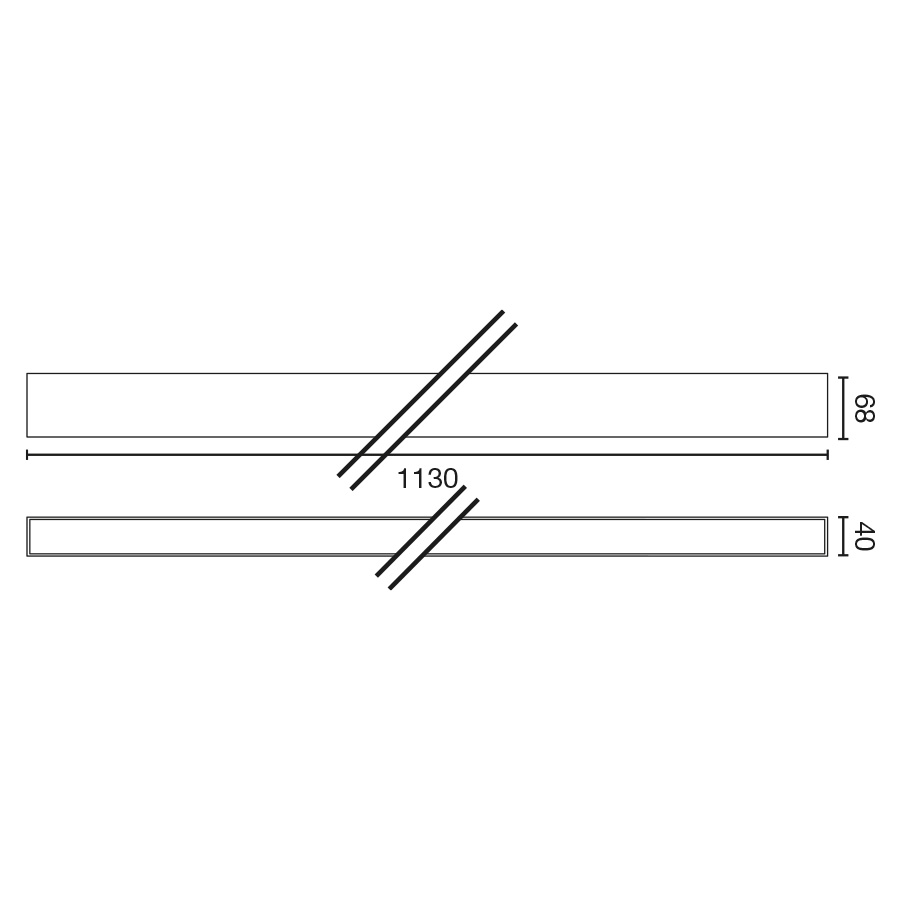

Dimensions and photometrics
Download files
Download files
Instructions
Technical data sheet
Instructions
Images

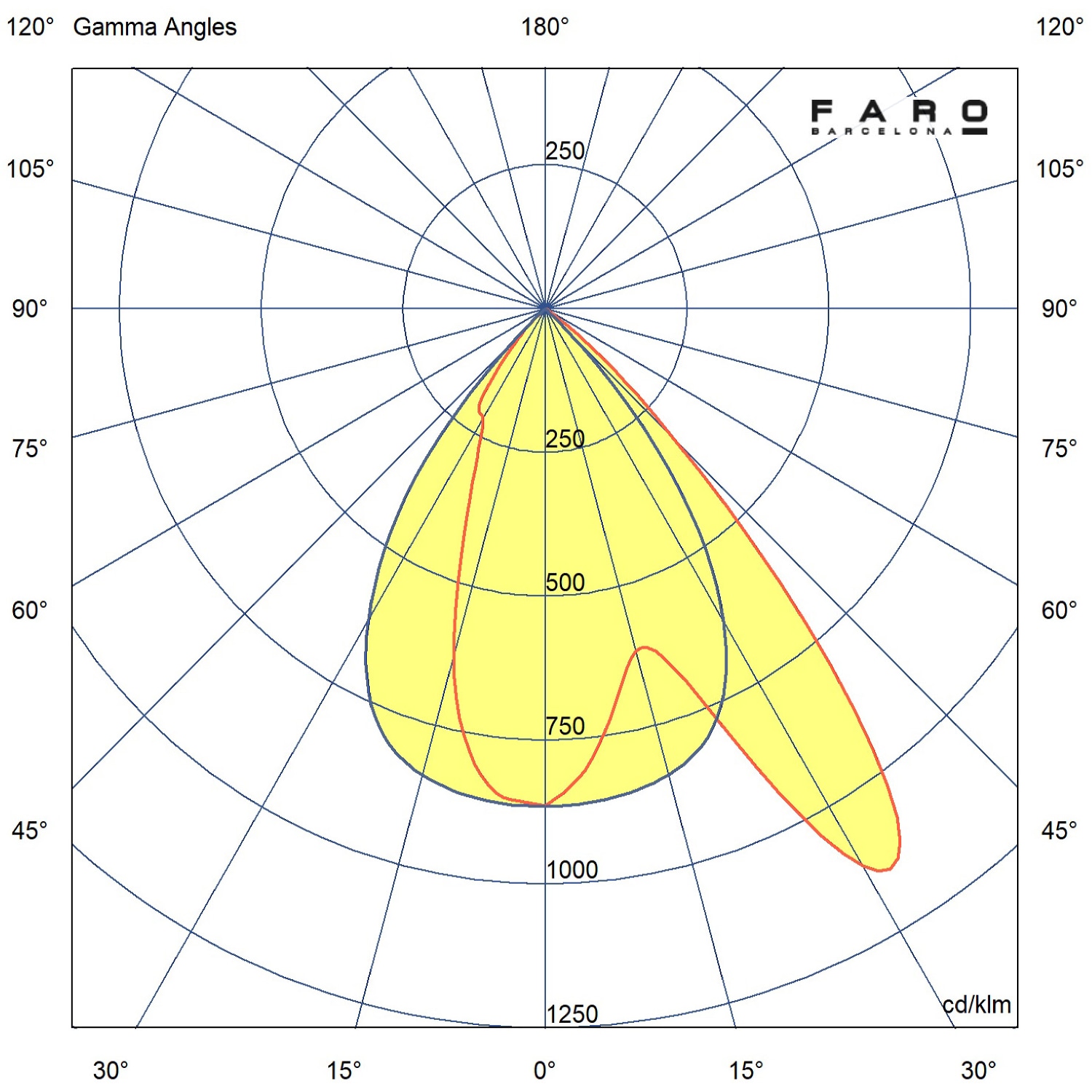

Photometric
Technical Files
Energy label
