Ref: 0334193011W
Favourite
TULIPA is the ideal solution when quality light and great visual comfort are required. IP65 version.
Related products
Catalog
Technical features
View technical sheet
Download technical sheet
Instructions
Specifications
Accesories
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
II
IP:
65
voltage:
220V-240V
Power supply current:
350 mA
Hertz:
50/60Hz
Flush box dimensions :
102x102x115
Max. Power:
7W
Cutting size:
ø 76mm
Control system:
CASAMBI
Minimum recessed height:
115mm
UGR:
16
Material
Body/Structure:
Aluminium + Aluminium
Finish
Body/Structure:
White+Black
Lighting characteristics
Light source included:
Yes
Light source:
COB LED
Dimmable:
Yes
Maximum ceiling thickness:
25mm
Temperature:
3000K
Lumens:
367lm
CRI:
90
Lumen maintenance / LED lifespan:
50.000h L80 B10
Degrees of light aperture:
15º
Light direction:
Direct
Energy classification:
F
Type of lighting:
ACENTO
Incandescent filament:
650
Driver
Driver included:
Yes
Power factor:
0.85

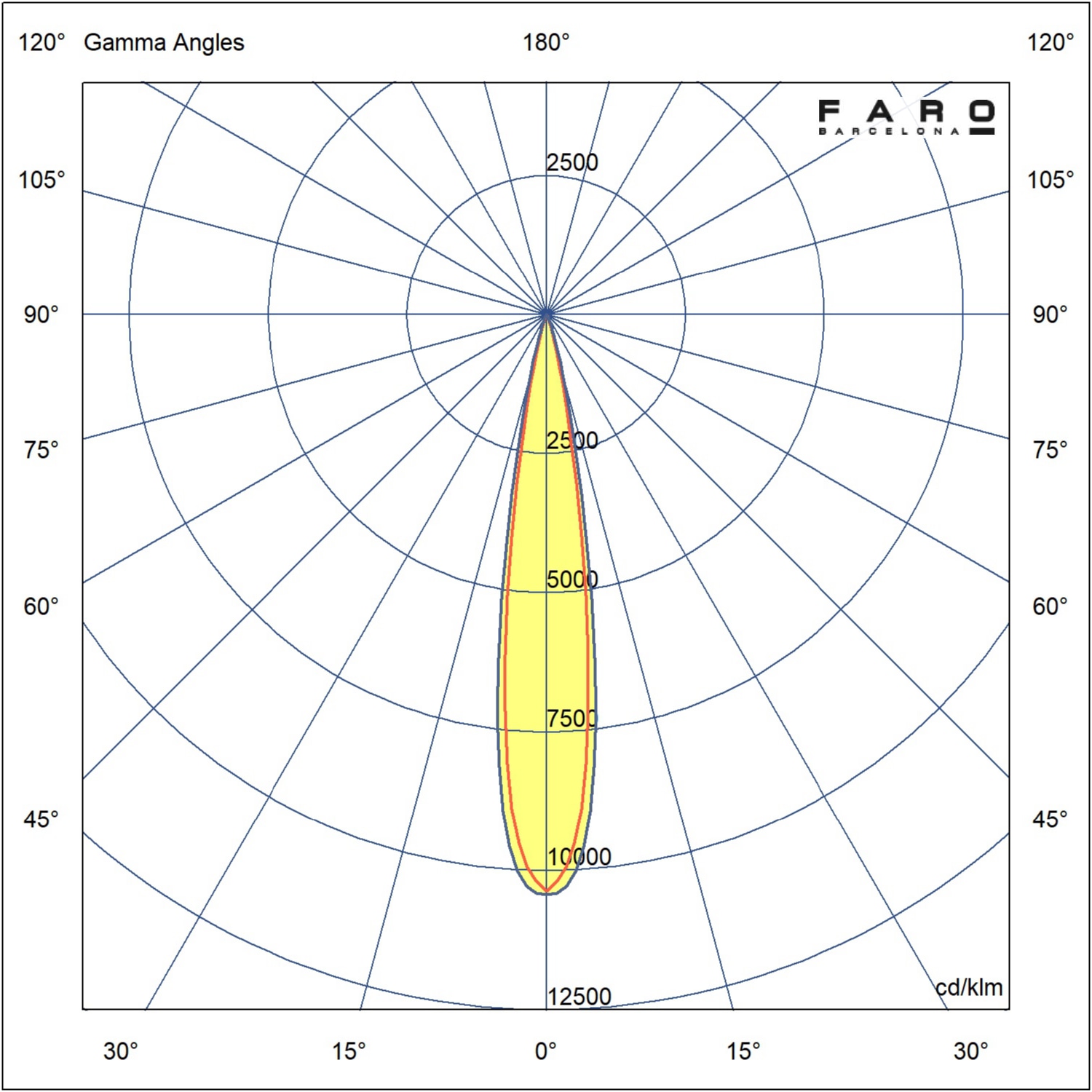

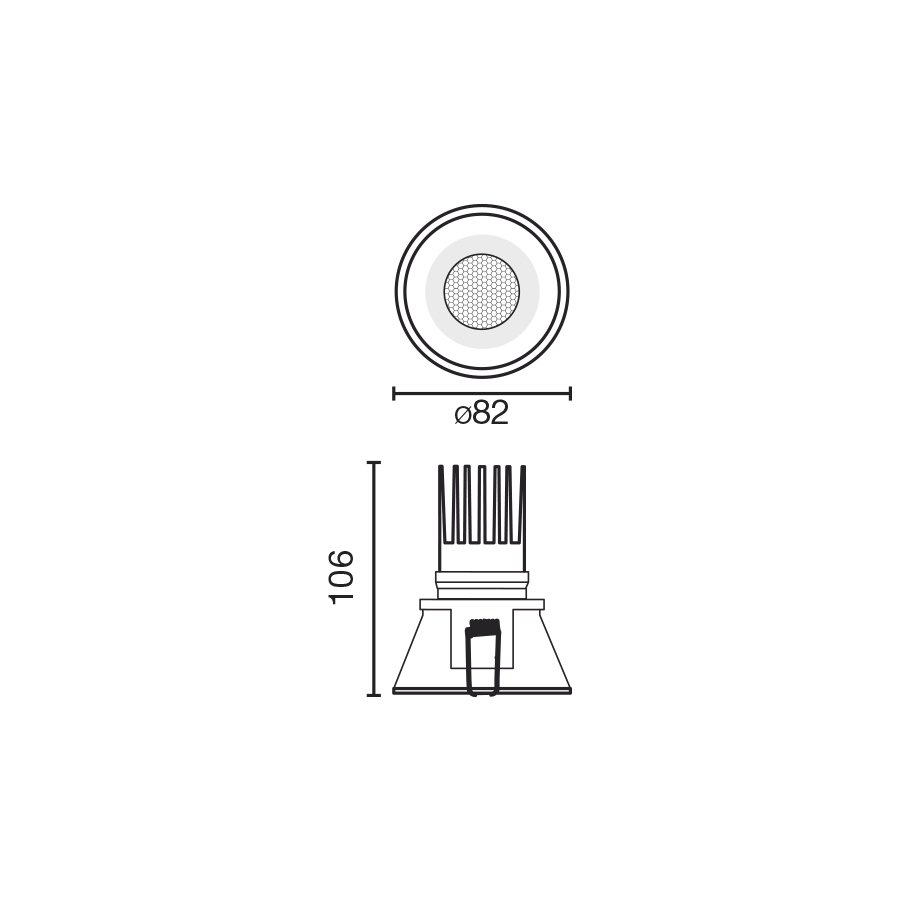

Dimensions and photometrics
See 3D projection
Load interactive experience
Download files
Download files
Technical data sheet
Instructions
Images
Photometric
2D / 3D
Downloading file. The process may take up to one minute. Please wait.
