10W light kit for the MINI PUNT model of ceiling fans, with dimmer to adjust light intensity. Provides an elegant style, energy efficiency, and easy installation for any environment.
Related products
Catalog
Selectable color temperature and adjustable intensity
This fan includes a switch integrated into the light kit that allows you to set one of the 3 light color temperatures (2700K, 3000K or 4000K) at the time of installation. The intensity can be adjusted via a TRIAC control system.
Technical features
View technical sheet
Download technical sheet
Instructions
General characteristics
Lighting characteristics
General characteristics
Type:
I
IP:
20
voltage:
220V-240V
Hertz:
50/60Hz
Max. Power:
10W
Control system:
TRIAC
Light kit model:
Estándar
Material
Body/Structure:
Steel
Diffuser:
Glass
Finish
Body/Structure:
Matt Black
Diffuser:
Opal
Lighting characteristics
Light source:
SMD LED
Temperature:
2700/ 3000/ 4000K
Lumens:
550lm
CRI:
80
Lumen maintenance / LED lifespan:
50.000h
Degrees of light aperture:
135º
Light direction:
Direct
Energy classification:
E
Measures
Download files
Download files
Technical data sheet
Instructions
Images

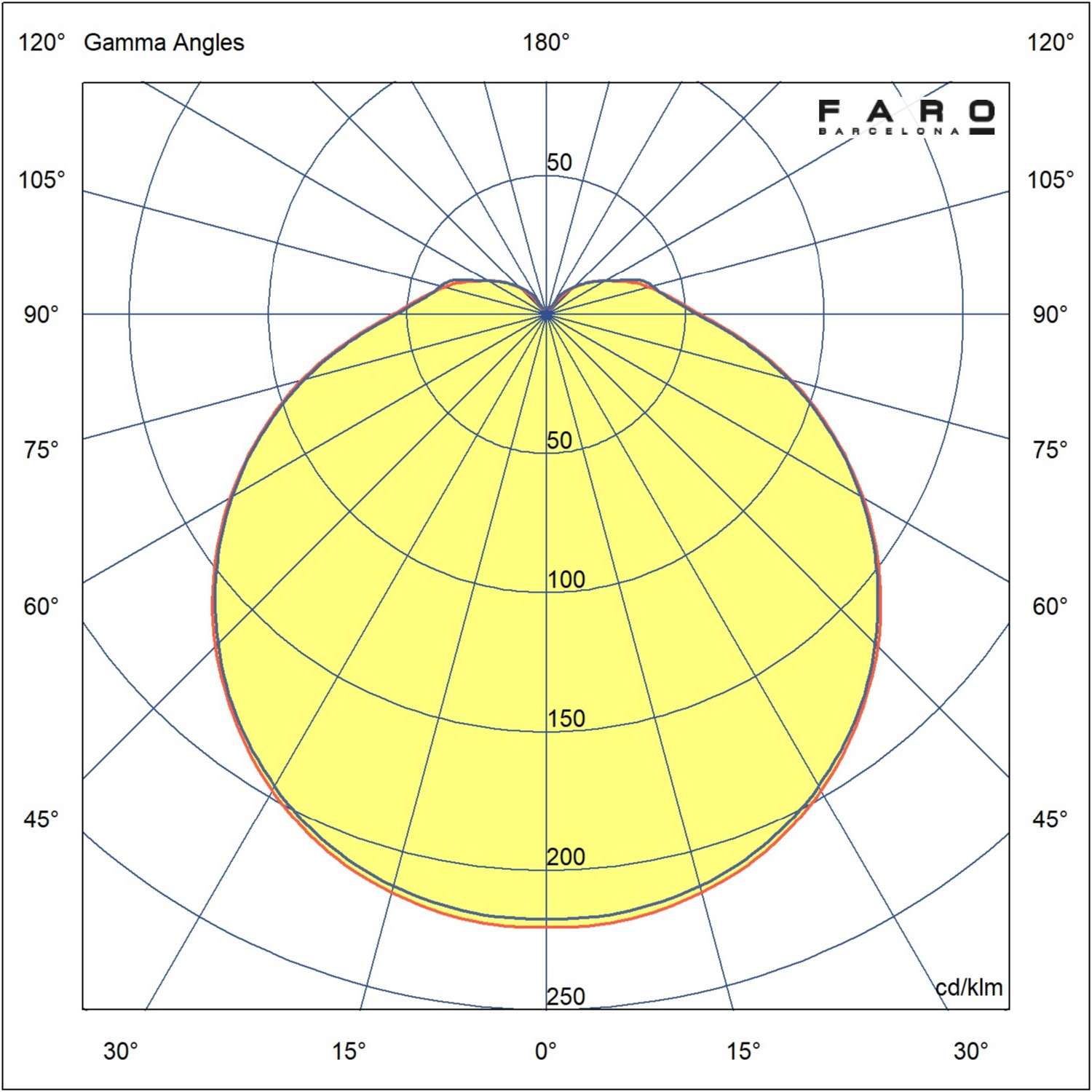

Photometric
Energy label
