Punt Tub is a ceiling fan surface in blade finish walnut, with size S. Equipped with a motor DC, it offers 6 adjustable speeds and is suitable for sloped ceilings. Works via rotary regulators 0‑10/1‑10V passive. Allows selecting and setting the colour temperature of the integrated LED light.
Related products
Catalog
How to activate the fan
Control your fan with 0-10V / 1-10V active, compatible with dimmer or rotary mechanisms, discover more here https://faro.es/es/blog/fan-integration/
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “S” size fan is ideal for rooms smaller than 13 m².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Selectable color temperature and adjustable intensity
This fan includes a switch integrated into the light kit that allows you to set one of the 3 light color temperatures (2700K, 3000K or 4000K) at the time of installation. The intensity can be adjusted via a TRIAC control system.
Technical features
View technical sheet
Download technical sheet
Instructions
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
I
IP:
20
voltage:
220V-240V
Hertz:
50/60Hz
Max. Power:
10W
Fan Power (W):
3-5-7-12-18-26
Airflow (m3/min):
41-53-80-108-126-141
Airflow (CFM):
1464-1899-2829-3820-4463-4997
RPM:
113-150-195-244-286-327
Reverse function:
No
Engine type:
DC
No. of blades:
3
Reversible blades:
No
Pitched ceiling:
No
Control system:
TRIAC
Light kit model:
Estándar
Material
Body/Structure:
Steel
Diffuser:
Glass
Blade material:
ABS
Finish
Body/Structure:
Matt Black
Diffuser:
Opal
Blade finish:
Walnut
Lighting characteristics
Light source:
SMD LED
Temperature:
2700/ 3000/ 4000K
Lumens:
550lm
CRI:
80
Lumen maintenance / LED lifespan:
50.000h
Degrees of light aperture:
135º
Light direction:
Direct
Energy classification:
E
Additional information
Optional downrod model:
No dispone

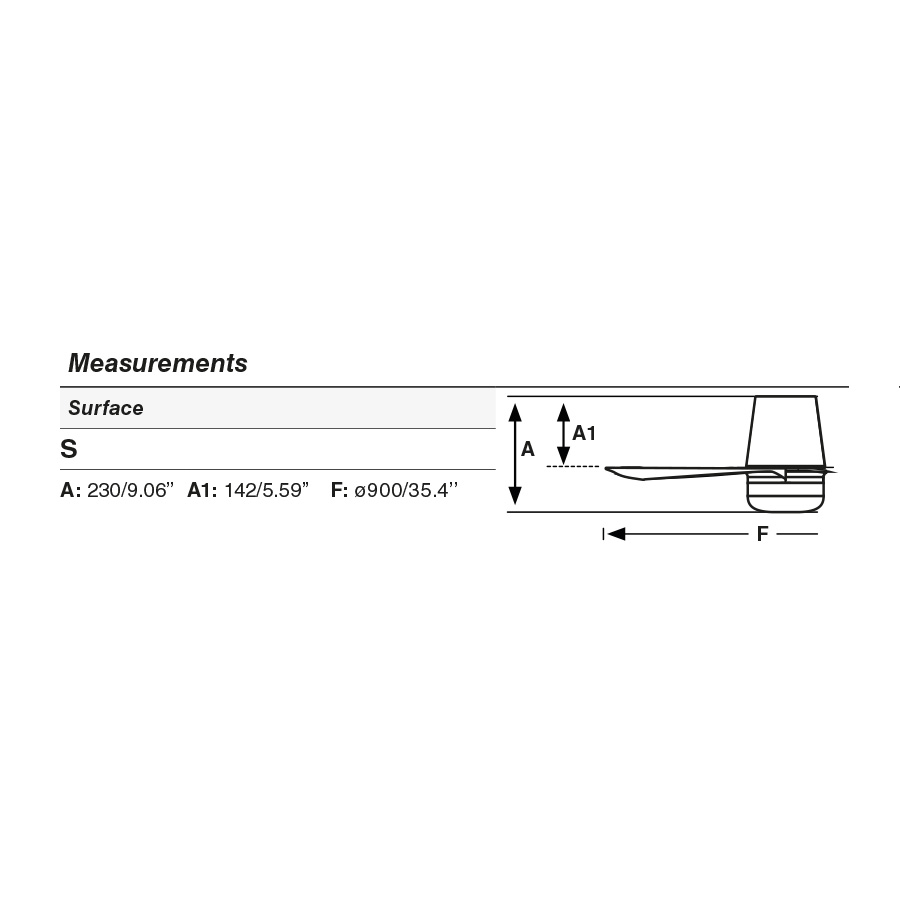

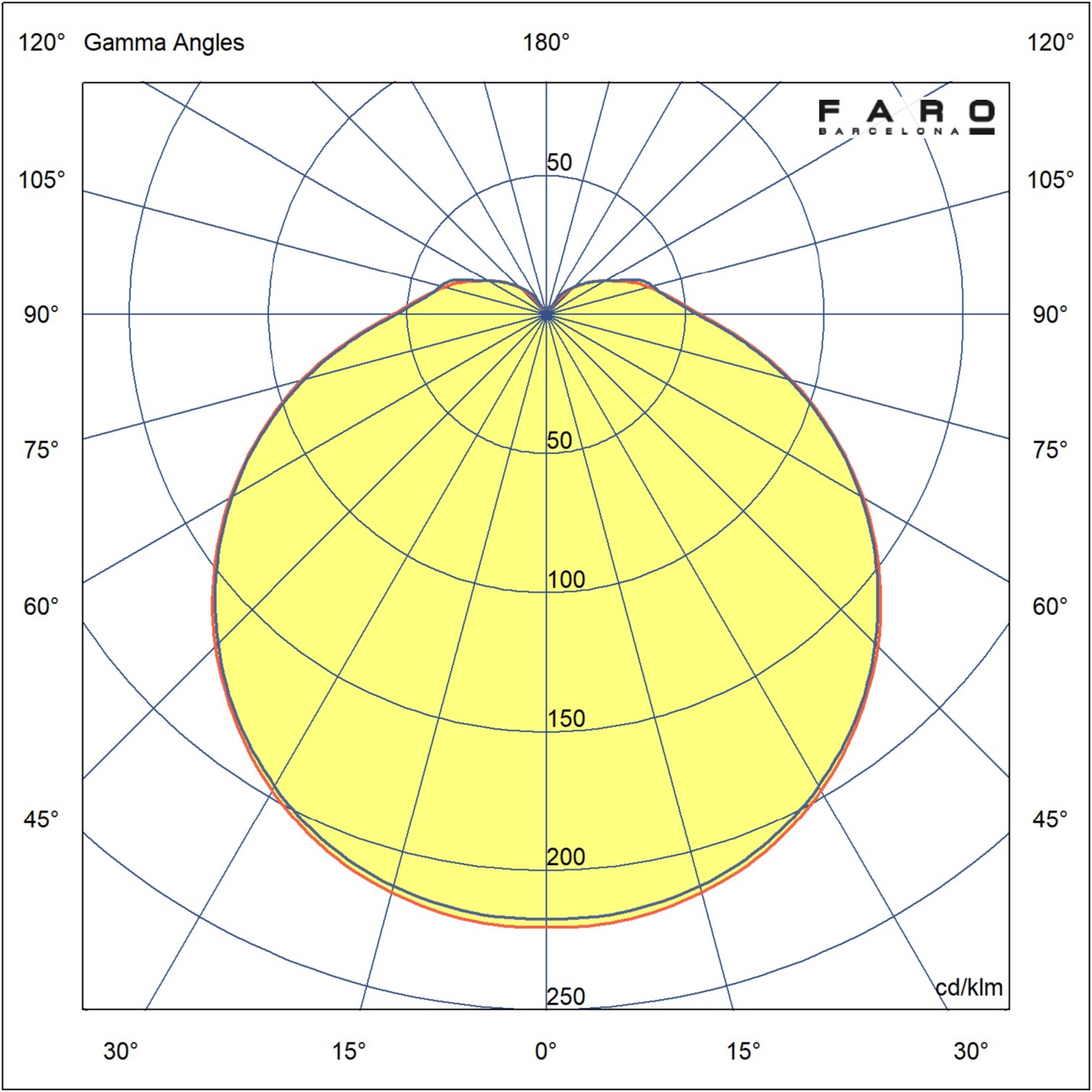

Dimensions and photometrics
