Punt Tub is a ceiling fan surface in blade finish matt white, with size S. Equipped with a motor DC, it offers 6 adjustable speeds, features a reverse function and is suitable for sloped ceilings. Compatibility with TUYA systems allows its integration via home‑automation and remote‑control solutions. Allows selecting and setting the colour temperature of the integrated LED light.
Related products
Catalog
Reverse function
Thanks to the reverse function, you can change the direction of the fan blades and use it both in summer and in winter. In summer, it will help achieve a cool atmosphere and in winter it will improve the efficiency of the heating system by making the hot air that accumulates in the ceiling circulate.
How to activate the fan
Control your fan with the TUYA application. This intelligent control has the same functionalities as a remote control. It operates with 2.4 GHz WIFI. It is compatible with Alexa and Google Assistant. Discover its advantages here.
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “S” size fan is ideal for rooms smaller than 13 m².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Selectable color temperature and adjustable intensity
This fan includes a switch integrated into the light kit that allows you to set one of the 3 light color temperatures (2700K, 3000K or 4000K) at the time of installation. The intensity can be adjusted via a TRIAC control system.
Technical features
View technical sheet
Download technical sheet
Instructions
Specifications
Accesories
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
I
IP:
20
voltage:
220V-240V
Hertz:
50/60Hz
Max. Power:
10W
Fan Power (W):
3-5-7-12-18-26
Airflow (m3/min):
41-53-80-108-126-141
Airflow (CFM):
1464-1899-2829-3820-4463-4997
RPM:
113-150-195-244-286-327
Reverse function:
Yes
Engine type:
DC
No. of blades:
3
Reversible blades:
No
Pitched ceiling:
No
Control system:
TRIAC
Fan memory:
Yes
Light kit memory:
Yes
Confirmation sound on/off:
Yes
Remote control lock on/off:
Yes
Light kit model:
Estándar
Material
Body/Structure:
Steel
Diffuser:
Glass
Blade material:
ABS
Finish
Body/Structure:
Matt White
Diffuser:
Opal
Blade finish:
Matt White
Lighting characteristics
Light source:
SMD LED
Temperature:
2700/ 3000/ 4000K
Lumens:
550lm
CRI:
80
Lumen maintenance / LED lifespan:
50.000h
Degrees of light aperture:
135º
Light direction:
Direct
Energy classification:
E
Additional information
Optional downrod model:
No dispone

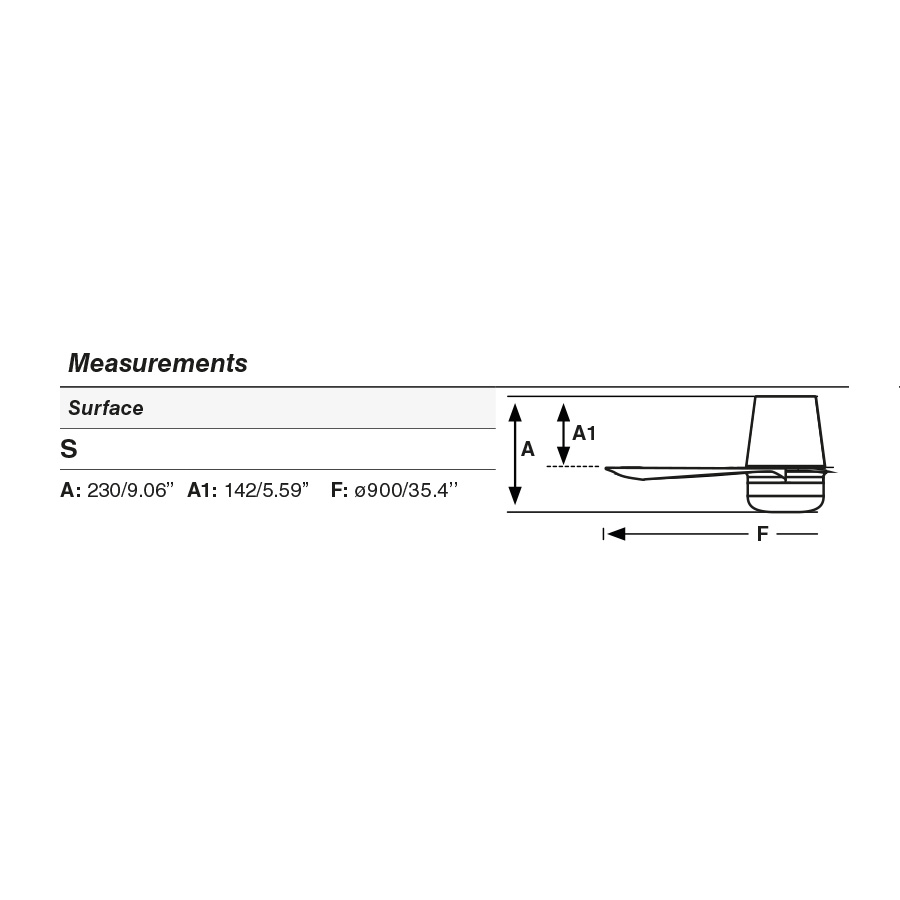

Dimensions and photometrics
Download files
Download files
Technical data sheet
Instructions
Images

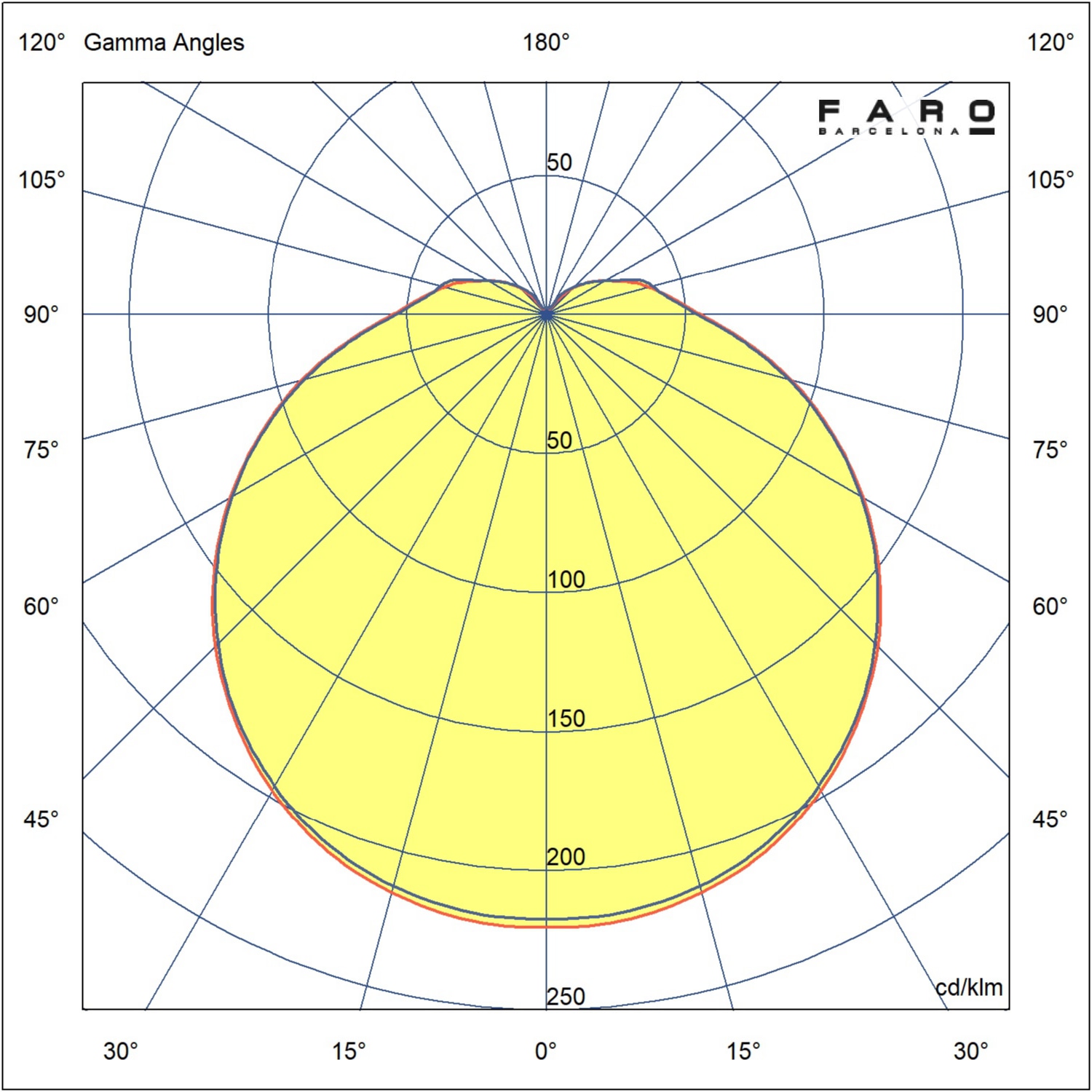

Photometric
