Punt Tub is a ceiling fan surface in blade finish matt black, with size M. Equipped with a motor DC, it offers 6 adjustable speeds and is suitable for sloped ceilings. Works via rotary regulators 0‑10/1‑10V passive.
Related products
Catalog
How to activate the fan
Control your fan with 0-10V / 1-10V active, compatible with dimmer or rotary mechanisms, discover more here https://faro.es/es/blog/fan-integration/
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “M” size fan is ideal for rooms between 13 and 17.6 m².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Colour temperature
This fan has a colour temperature of 4000K, which will provide you with a warm light.
Technical features
View technical sheet
Download technical sheet
Instructions
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
I
IP:
20
voltage:
220V-240V
Hertz:
50/60Hz
Max. Power:
10W
Fan Power (W):
5-7-9-13-19-28
Airflow (m3/min):
80-102-125-143-165-177
Airflow (CFM):
2877-3662-4485-5118-5924-6318
RPM:
90-115-135-158-185-210
Reverse function:
No
Engine type:
DC
No. of blades:
3
Reversible blades:
No
Pitched ceiling:
No
Light kit model:
Tek
Material
Body/Structure:
Steel
Diffuser:
Glass
Blade material:
ABS
Finish
Body/Structure:
Matt Black
Diffuser:
Translucent
Blade finish:
Matt Black
Lighting characteristics
Light source:
COB LED
Temperature:
4000K
Lumens:
798lm
CRI:
90
Degrees of light aperture:
60º
Light direction:
Direct
Energy classification:
F
Additional information
Optional downrod model:
No dispone

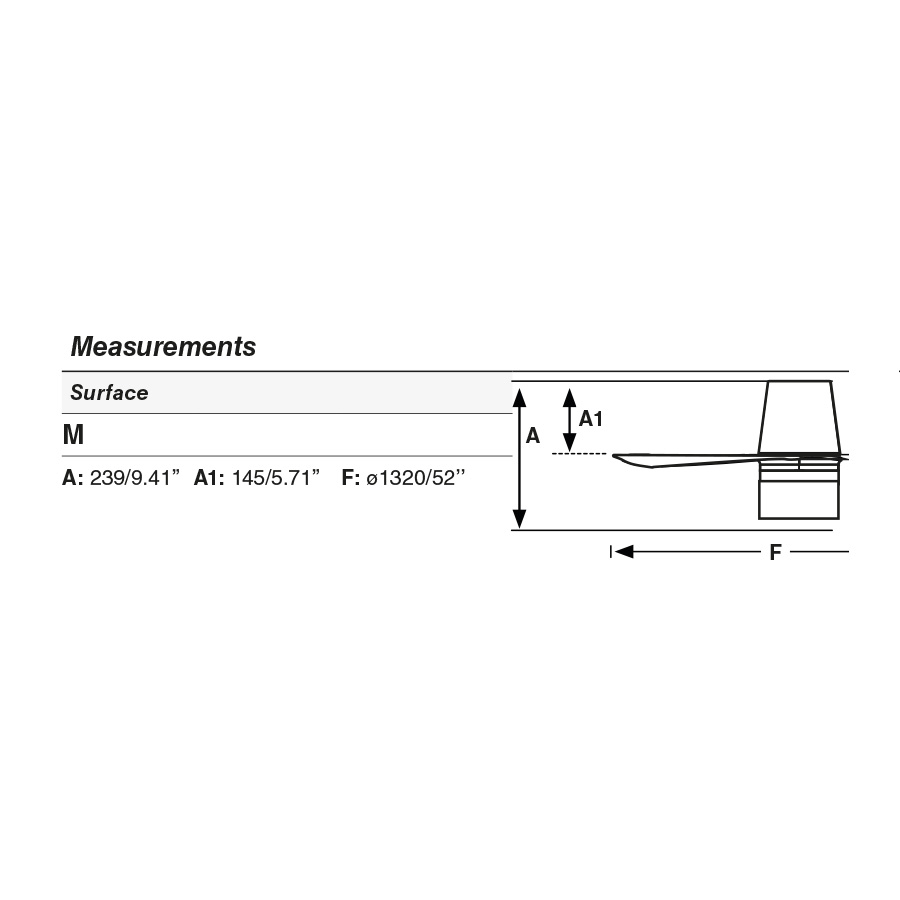

Dimensions and photometrics
Download files
Download files
Technical data sheet
Instructions
Images

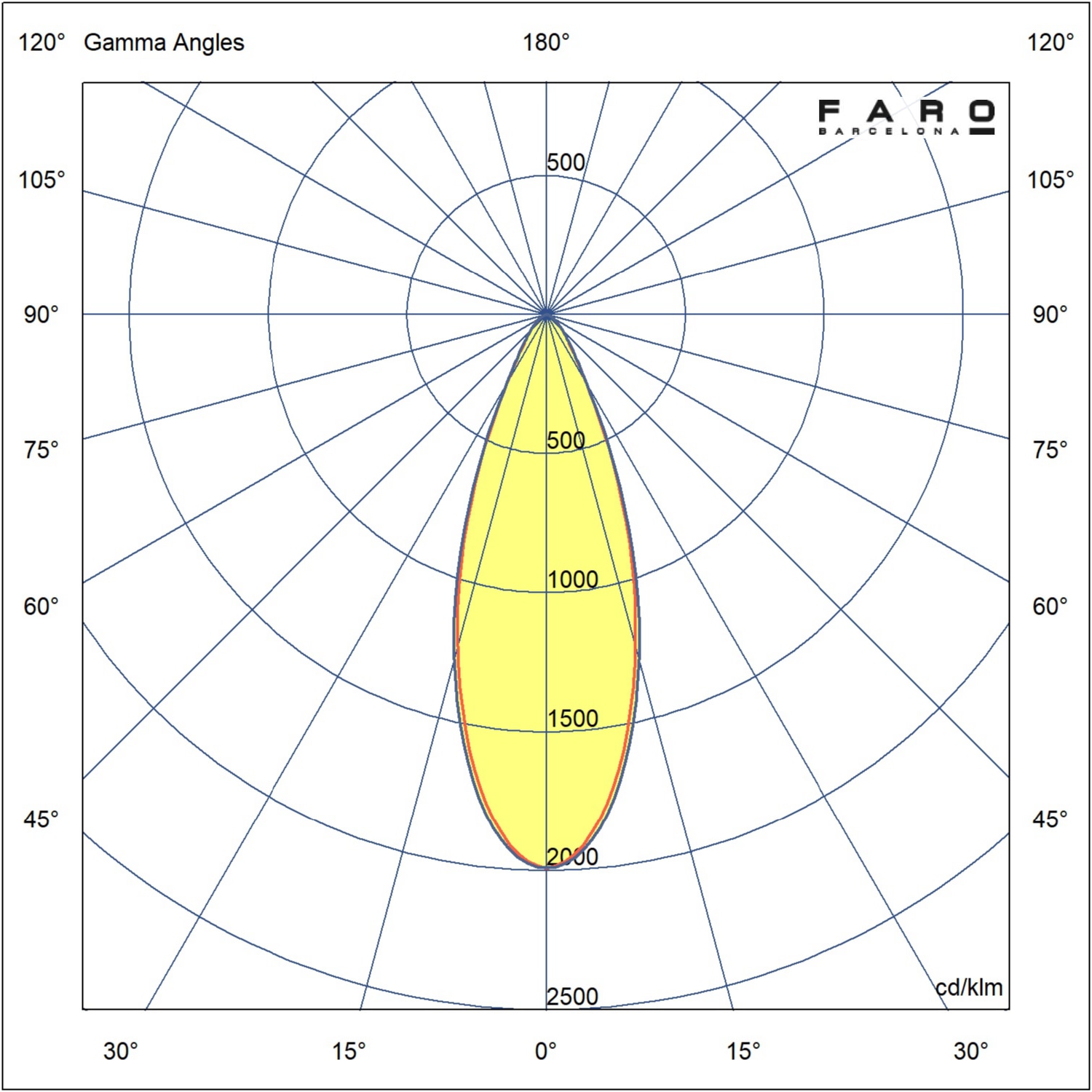

Photometric
