PUNT is a ceiling fan with a modern and minimalist design. White version with 3 maple blades.
Related products
Catalog
Reverse function
Thanks to the reverse function, you can change the direction of the fan blades and use it both in summer and in winter. In summer, it will help achieve a cool atmosphere and in winter it will improve the efficiency of the heating system by making the hot air that accumulates in the ceiling circulate.
How to activate the fan
It has a remote control which will allow you to control your fan in a more comfortable and simpler way. Discover here how to sync it.
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “M” size fan is ideal for rooms between 13 and 17.6 m².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Installation for sloping ceilings
Suitable for sloping ceilings, which enables the shank to fall vertically so that the fan is always flat with respect to the ceiling and ensures the best operation and comfort.
Technical features
View technical sheet
Download technical sheet
Instructions
Specifications
Accesories
General characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
I
IP:
20
voltage:
100V-120V
Hertz:
50/60Hz
Fan Power (W):
5-7-9-13-19-28
Airflow (m3/min):
80-102-125-143-165-177
Airflow (CFM):
2877-3662-4485-5118-5924-6318
RPM:
90-115-135-158-185-210
Reverse function:
Yes
Engine type:
DC
No. of blades:
3
Reversible blades:
No
Pitched ceiling:
Yes
Maximum tilt (º):
12
RAL Pantone structure 1:
RAL 9016
Downrod diameter:
26
Fan memory:
Yes
Light kit memory:
Yes
Confirmation sound on/off:
Yes
Remote control lock on/off:
Yes
Material
Body/Structure:
Steel
Blade material:
ABS
Finish
Body/Structure:
Matt White
Blade finish:
Maple
Additional information
Length of the included rods :
100
Optional downrod model:
Universal 26mm

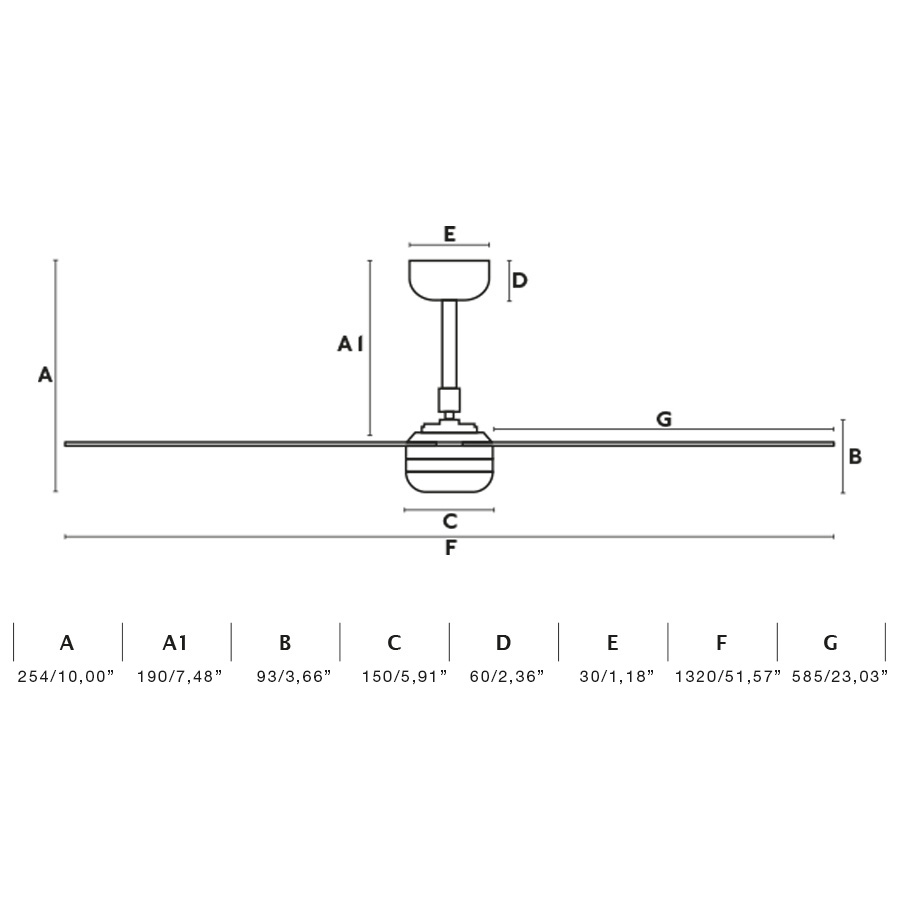

Measures
