PALMA is an outdoor ceiling fan with blades that simulate a palm leaf. Brown version with IP44 protection. Integrated Smart WiZ system.
Related products
Catalog
Reverse function
Thanks to the reverse function, you can change the direction of the fan blades and use it both in summer and in winter. In summer, it will help achieve a cool atmosphere and in winter it will improve the efficiency of the heating system by making the hot air that accumulates in the ceiling circulate.
How to activate the fan
It has a programmable remote control which will allow you to control your fan in a more comfortable and simpler way.
Fan with intelligent control
Control your fan with the WiZ application. This intelligent control has the same functionalities as a remote control. It operates with 2.4 GHz WIFI. It is compatible with Alexa, Google Assistant and Siri. Discover its advantages here.
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “M” size fan is ideal for rooms between 13 and 17.6 m².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Installation for sloping ceilings
Suitable for sloping ceilings, which enables the shank to fall vertically so that the fan is always flat with respect to the ceiling and ensures the best operation and comfort.
Suitable for exteriors
Thanks to its IP44, you can install this fan both inside and outside the dwelling, ideal for porches and terraces.
Technical features
View technical sheet
Download technical sheet
Instructions
Specifications
Accesories
General characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
I
IP:
44
voltage:
100V-240V
Hertz:
50/60Hz
Fan Power (W):
4-5-9-15-24-35
Airflow (m3/min):
52-73-98-131-152-179
Airflow (CFM):
1850-2577-3456-4637-5372-6321
RPM:
69-100-136-170-200-230
Reverse function:
Yes
Engine type:
DC
No. of blades:
3
Reversible blades:
No
Pitched ceiling:
Yes
Maximum tilt (º):
12
Downrod diameter:
26
Additional rod including cable:
Si
Material
Body/Structure:
Steel
Blade material:
ABS
Finish
Body/Structure:
Dark Brown
Blade finish:
Dark Brown
Additional information
Length of the included rods :
100
Optional downrod model:
Universal 26mm seaside

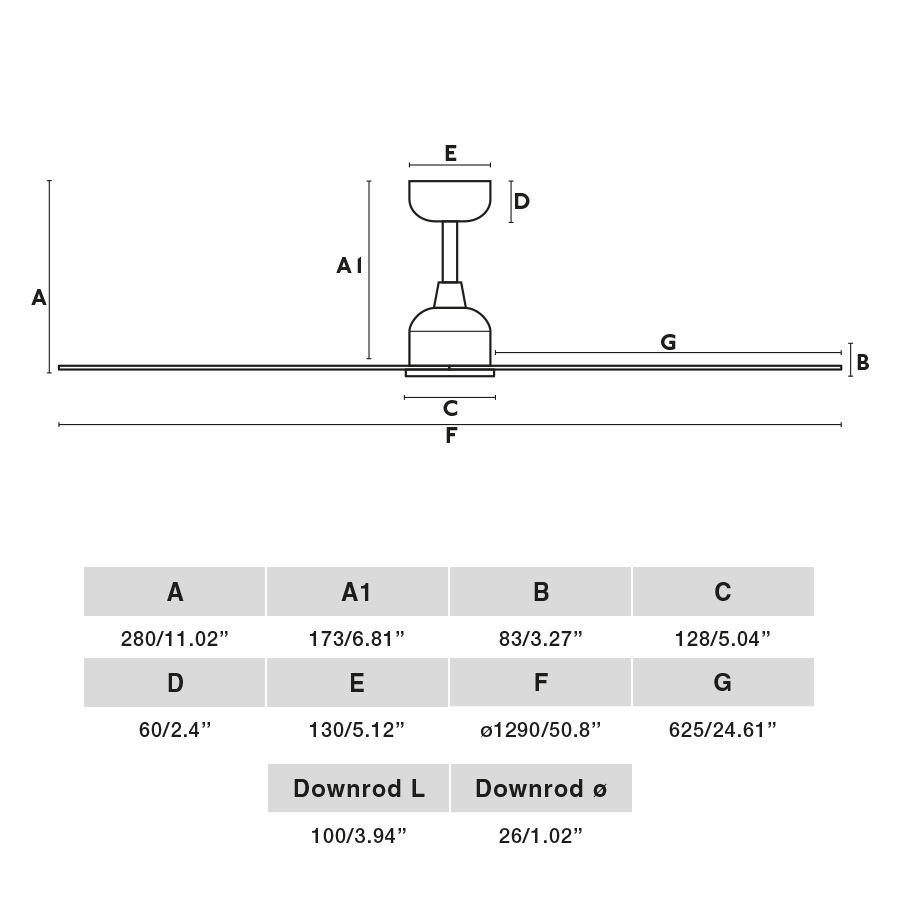

Measures
See 3D projection
