Home >  Collection >  ARCHITECTURAL >  LINEAR SYSTEMS >  Neso track >  NESO TOP 3000K 20° black Casambi
NESO TOP 3000K 20° black Casambi
Ref: 5010693012W
Favourite
NESO TOP is a luminaire of the NESO family. It is added to the rails with the magnetic system. The 20° version is ideal for use as accent lighting in shop windows, shopfronts, restaurants or hotels, and also in exhibition rooms or museums. The Casambi system enables light intensity to be regulated wirelessly. With a heat temperature of 3000K, this downlight allows warm, comfortable atmospheres to be created.
scroll to see more
Magnetic
Neso is a magnetic track system that provides the flexibility to combine different types of luminaires to achieve general and accent lighting. The luminaires are attached to the track with magnets, allowing for easy and hassle-free repositioning - unleash your imagination and creativity to the fullest!
Versatility
Neso integrates perfectly into the architecture. You can install it on the ceiling or wall and make all the combinations you want.Tracks are available for recessed, suspended and surface installation.
Connectivity
We work with the CASAMBI home automation system. This contributes to energy savings, improves the user experience and brings well-being to people.
  • Point to point control.
  • Program the switching on and off of luminaires.
  • Group the control of luminaires.
  • Create specific scenes and animations.
  • Create galleries for each type of space.
  • Modify the intensity of the light.
  • You can use the on/off installation only by changing the luminaires.
ARCHITECTURAL CONFIGURATOR
Discover
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Recommended electrical equipment
Sales material
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: CARRIL NESO
Type: III
IP: 20
voltage: 24VDC
Max. Power: 5W
Material
Body/Structure: Aluminium
Finish
Body/Structure: Black
Lighting characteristics
Light source included: Yes
Light source: COB LED
Temperature: 3000K
Lumens: 371lm
CRI: 90
Lumen maintenance / LED lifespan: 50.000h L70 B10
Degrees of light aperture: 20º
Energy classification: F
Type of lighting: ACENTO
Driver
Driver regulation: CASAMBI
Recommended electrical equipment
POWER SUPPLY 24VDC 120W See more
Architectural
POWER SUPPLY 24VDC 120W
Reference: 98324120
Sales material
FOCUS ON Neso
Dimensions and photometrics

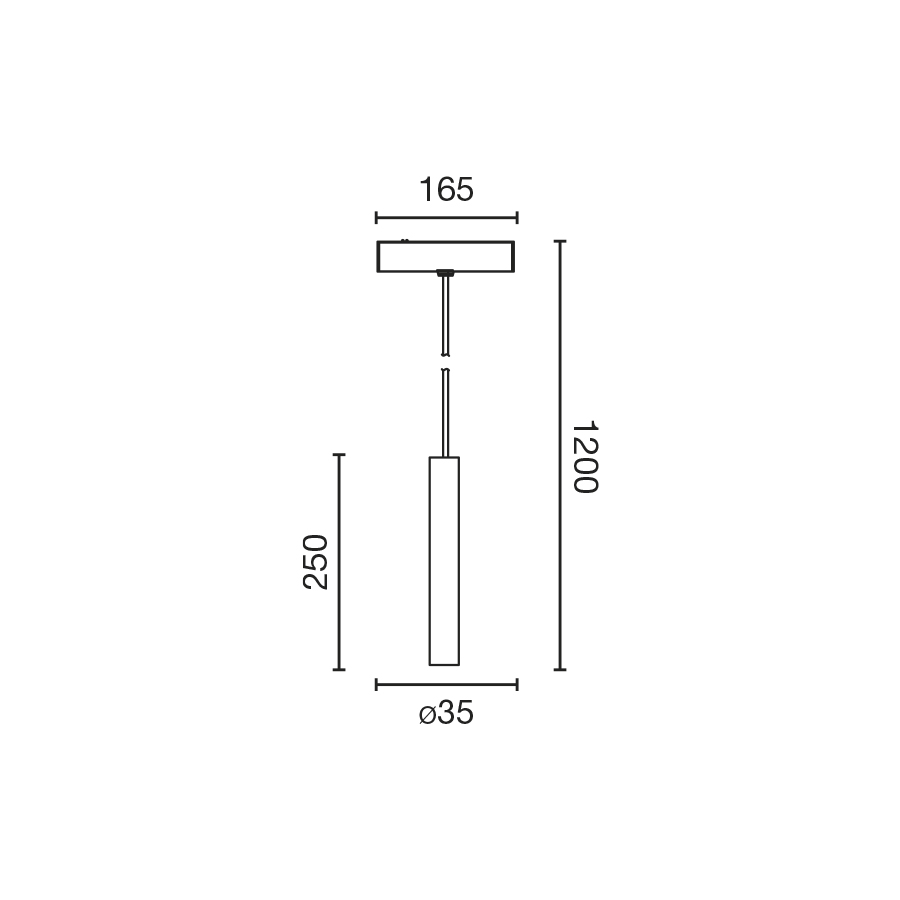

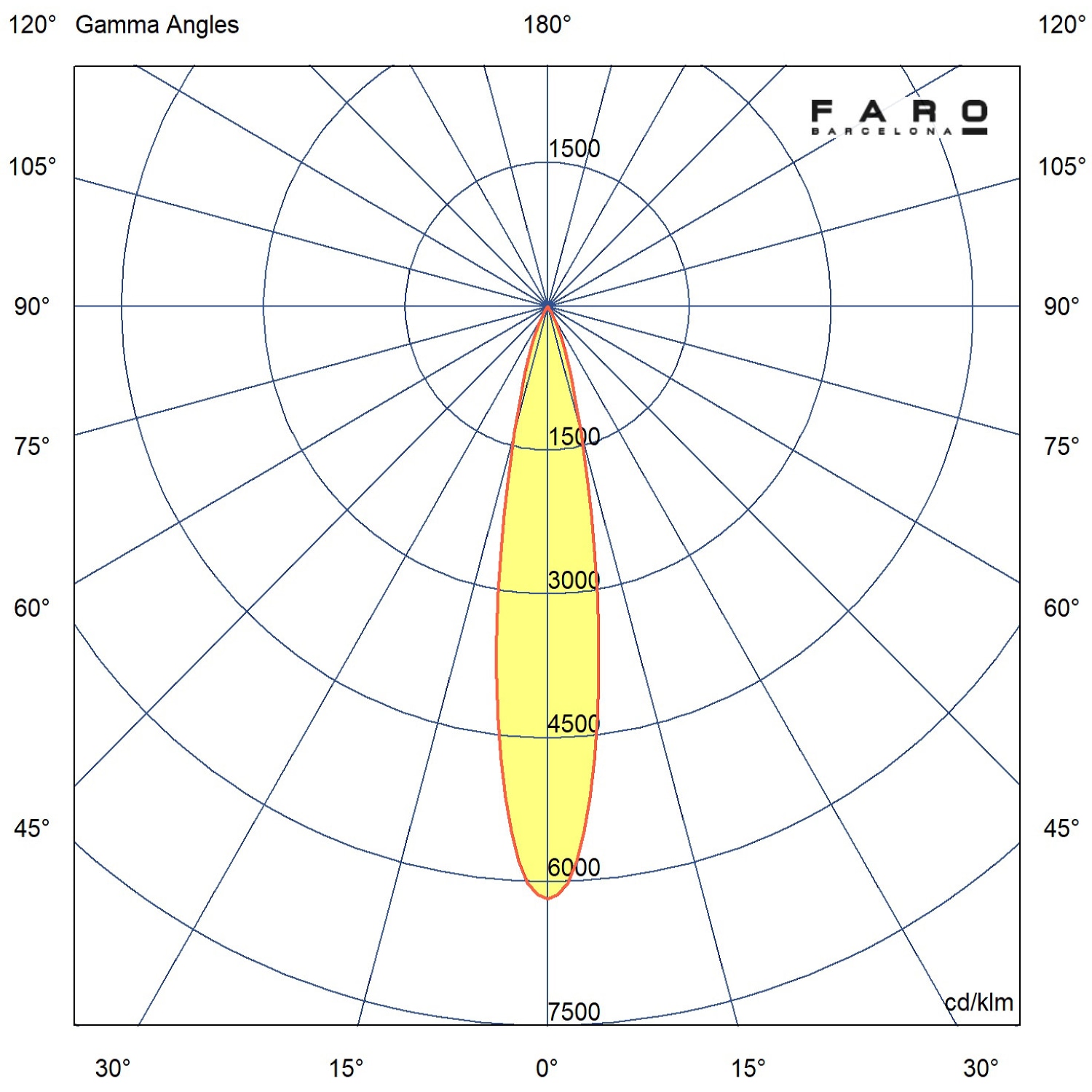

Technical drawing Photometric
Download files
Download files
Instructions
Technical data sheet
Instructions
Images
Photometric
Technical Files
Energy label
