MINI PUNT TUB S is a white ceiling fan with white blades, ideal for rooms smaller than 13 m². Operated by remote control with programmer, included. This ceiling fan with energy-saving DC motor has 6 adjustable speedsand summer-winter reverse function.
Related products
Catalog
Reverse function
Thanks to the reverse function, you can change the direction of the fan blades and use it both in summer and in winter. In summer, it will help achieve a cool atmosphere and in winter it will improve the efficiency of the heating system by making the hot air that accumulates in the ceiling circulate.
How to activate the fan
It has a remote control which will allow you to control your fan in a more comfortable and simpler way. Discover here how to sync it.
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “S” size fan is ideal for rooms smaller than 13 m².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Direct ceiling installation
It is recommended that ceiling fans do not hang below 2,20 m. We sometimes do not have that space so being able to install your fan directly onto the ceiling, without the need to use the shank, is very useful.
Technical features
View technical sheet
Download technical sheet
Instructions
Specifications
Accesories
General characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
I
IP:
20
voltage:
220V-240V
Hertz:
50/60Hz
Fan Power (W):
3-5-7-12-18-26
Airflow (m3/min):
41-53-80-108-126-141
Airflow (CFM):
1464-1899-2829-3820-4463-4997
RPM:
113-150-195-244-286-327
Reverse function:
Yes
Engine type:
DC
No. of blades:
3
Reversible blades:
No
Pitched ceiling:
No
Additional rod including cable:
No
Fan memory:
Yes
Light kit memory:
Yes
Confirmation sound on/off:
Yes
Remote control lock on/off:
Yes
Material
Body/Structure:
Aluminium
Blade material:
ABS
Finish
Body/Structure:
Matt White
Blade finish:
Matt White
Additional information
Optional downrod model:
No dispone

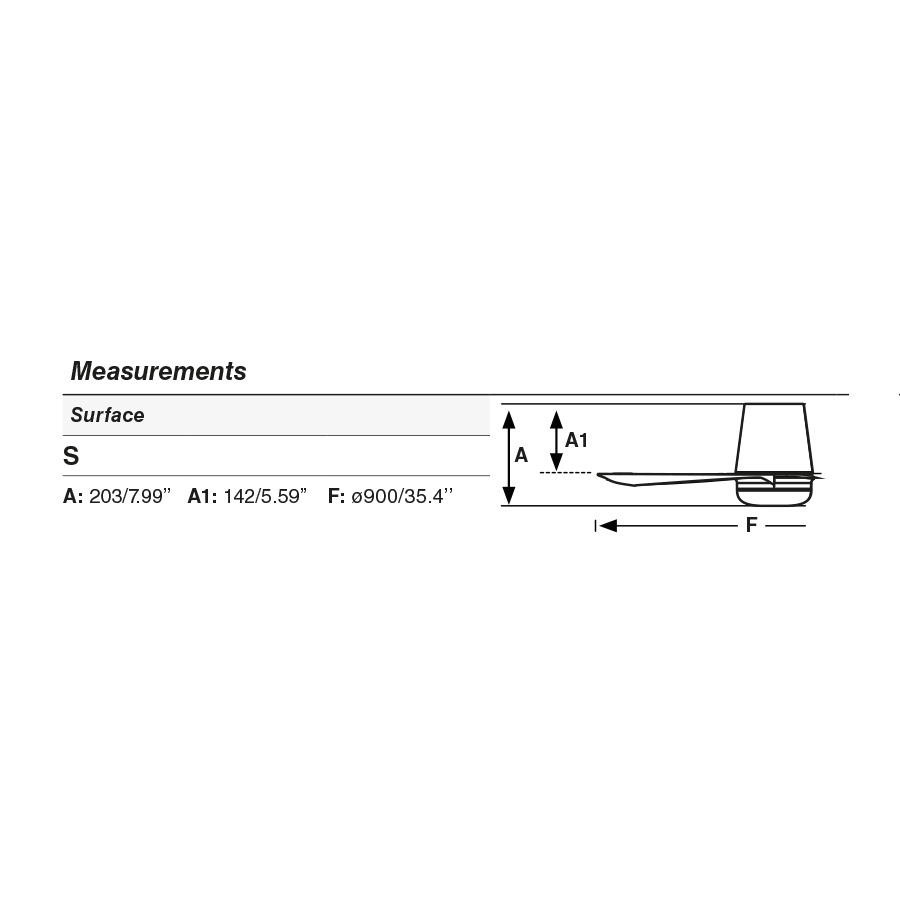

Measures
See 3D projection
