Home Collection CEILING FANS WITHOUT LIGHT Ceiling MINI INDUS S White fan 110V
MINI INDUS S White fan 110V
Ref: 33011-110
Favourite
Ceiling fan without light suitable for rooms up to 13m2. Motor made from steel and blades from steel. The color of blades are white, not reversible. Operated by wall control,( included) setted up with 5 dimmable speeds 183-225-272-299-330 rpm which correspond to the following consumptions of 10-13-17-22-43w.
scroll to see more
Reverse function
Thanks to the reverse function, you can change the direction of the fan blades and use it both in summer and in winter. In summer, it will help achieve a cool atmosphere and in winter it will improve the efficiency of the heating system by making the hot air that accumulates in the ceiling circulate.
How to activate the fan
It has a wall controller, which is undoubtedly one of the most robust mechanisms and always locatable.
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “S” size fan is ideal for rooms smaller than 13 m².
Installation for sloping ceilings
Suitable for sloping ceilings, which enables the shank to fall vertically so that the fan is always flat with respect to the ceiling and ensures the best operation and comfort.
Technical features
View technical sheet Download technical sheet
Specifications
General characteristics
Driver
General characteristics
Fixation: Ceiling
Type: I
IP: 20
voltage: 110V
Hertz: 50/60Hz
Fan Power (W): 10-16-21-27-37
Airflow (m3/min): 75
Airflow (CFM): 2648
RPM: 150-212-263-312-355
Reverse function: Yes
Engine type: AC
No. of blades: 3
Reversible blades: No
Pitched ceiling: Yes
Downrod diameter: 21
Material
Body/Structure: Steel
Blade material: Steel
Finish
Body/Structure: White
Blade finish: White
Driver
Driver included: No
Additional information
Optional downrod model: No dispone

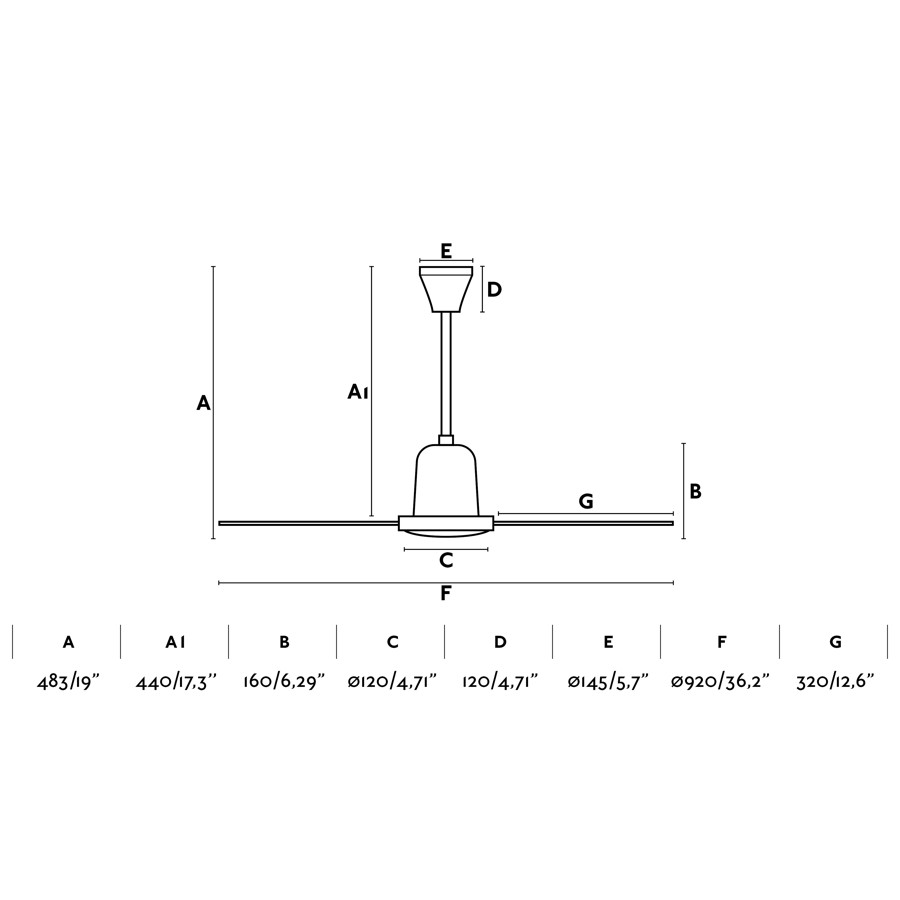

Measures
