MARINE is a ceiling fan with oak-finish blades in size M. It is suitable for damp areas. Equipped with a DC motor, it offers 6 adjustable speeds, features a reverse function, and is suitable for sloped ceilings.
Related products
Catalog
Reverse function
Thanks to the reverse function, you can change the direction of the fan blades and use it both in summer and in winter. In summer, it will help achieve a cool atmosphere and in winter it will improve the efficiency of the heating system by making the hot air that accumulates in the ceiling circulate.
How to activate the fan
It has a remote control which will allow you to control your fan in a more comfortable and simpler way. Discover here how to sync it.
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “M” size fan is ideal for rooms between 140 and 17.6 ft².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Installation for sloping ceilings
Suitable for sloping ceilings, which enables the shank to fall vertically so that the fan is always flat with respect to the ceiling and ensures the best operation and comfort.
Technical features
View technical sheet
Download technical sheet
Instructions
General characteristics
Driver
General characteristics
Fixation:
Ceiling
voltage:
100V-120V
Hertz:
50/60Hz
Fan Power (W):
4-6-9-14-20-27
Airflow (m3/min):
67-83-108-121-150-174
Airflow (CFM):
2372-2948-3823-4479-5305-6142
RPM:
86-121-146-175-198-222
IK:
03
Engine type:
DC
No. of blades:
3
Maximum tilt (º):
12
Downrod diameter:
26
Control system:
0-10V Compatible
Fan memory:
Yes
Confirmation sound on/off:
Yes
Remote control lock on/off:
Yes
Location:
Suitable for damp locations
US Certification:
cETLus
Location (US only):
Suitable for damp locations
Material
Body/Structure:
Steel
Blade material:
ABS
Finish
Body/Structure:
Dark Brown
Blade finish:
Oak
Additional information
Length of the included rods :
100
Optional downrod model:
Universal 26mm seaside

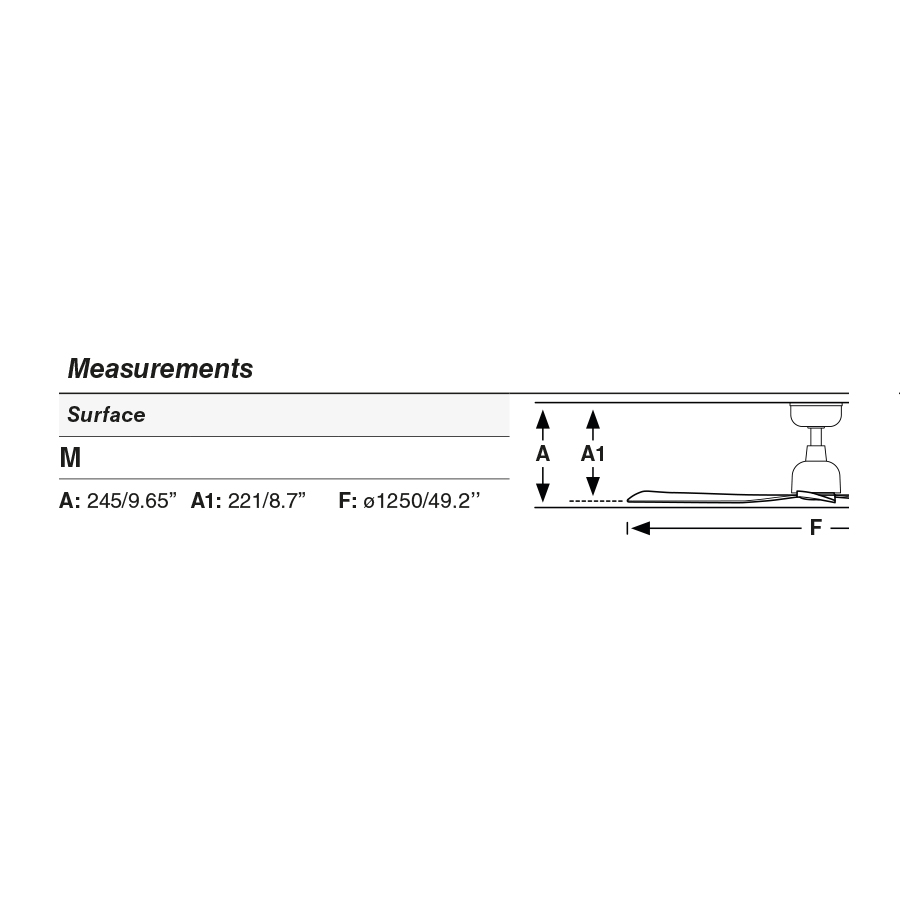

Measures
