LOX is a round aluminium recessed light. Its minimalist design is ideal for commercial and contract spaces.
Related products
Catalog
Technical features
View technical sheet
Download technical sheet
Instructions
Specifications
Recommended electrical equipment
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
III
IP:
20
Power supply current:
250 mA
Hertz:
50/60Hz
Type of load:
5V
Flush box dimensions :
270x270x75
Max. Power:
9W
Cutting size:
ø55mm
Minimum recessed height:
75mm
Material
Body/Structure:
Aluminium + PC
Finish
Body/Structure:
White
Lighting characteristics
Light source included:
Yes
Light source:
COB LED
Dimmable:
Yes
Maximum ceiling thickness:
25mm
Temperature:
2700K
Lumens:
473lm
CRI:
80
Lumen maintenance / LED lifespan:
50.000h L70 B10
Degrees of light aperture:
36º
Energy classification:
F
Tilt angle:
40
Type of lighting:
ACENTO
Incandescent filament:
650
Driver
Driver included:
No

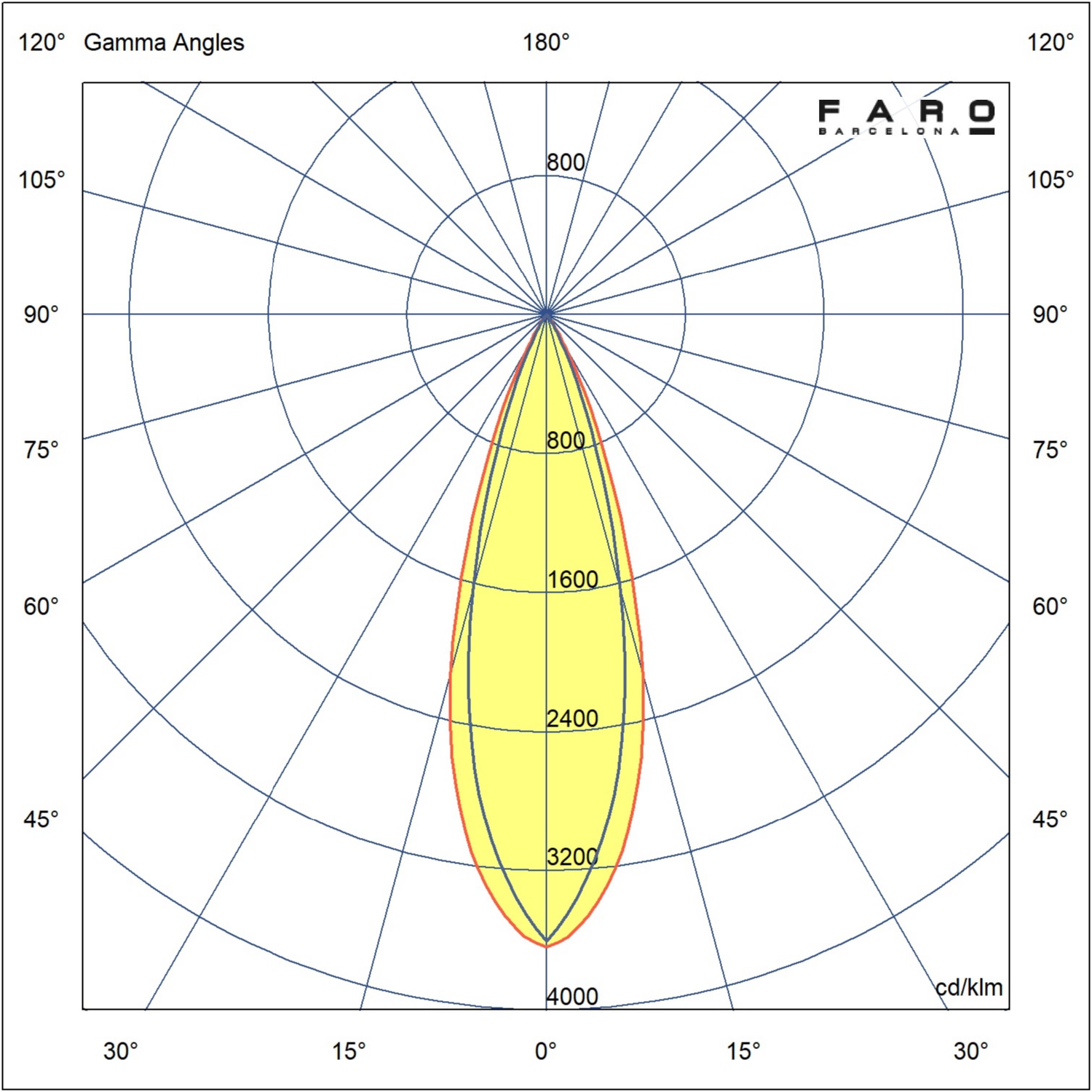

Dimensions and photometrics
