Home Collection OUTDOOR SURFACE Floor LOTUS 350 Dark grey beacon lamp
LOTUS 350 Dark grey beacon lamp
By Estudi Ribaudí
Ref: 71224
Favourite
LOTUS is a modern outdoor collection designed by Estudi Ribaudí and inspired by this flower’s leaves. The beacon lamp is made from aluminium and polycarbonate, and is ideal for lighting pathways and circulation areas, and, thanks to its design, also as a decorative element. It has IP65. The LOTUS collection has been awarded the iF Design Award, an important recognition of design and innovation.
Awards
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Floor
Type: I
IP: 65
voltage: 100V-240V
Hertz: 50/60Hz
Max. Power: 18W
IK: 08
Material
Body/Structure: Aluminium
Diffuser: PC
Finish
Body/Structure: Dark Grey
Diffuser: Opal
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Temperature: 3000K
MacAdam Steps: >5 SDCM
Lumens: 1120lm
CRI: >80
Light direction: Indirect lighting
Energy classification: F
Driver
Driver included: Yes
Dimensions and photometrics
See 3D projection
Load interactive experience
Download files
Download files
Instructions
Technical data sheet
Instructions
Images

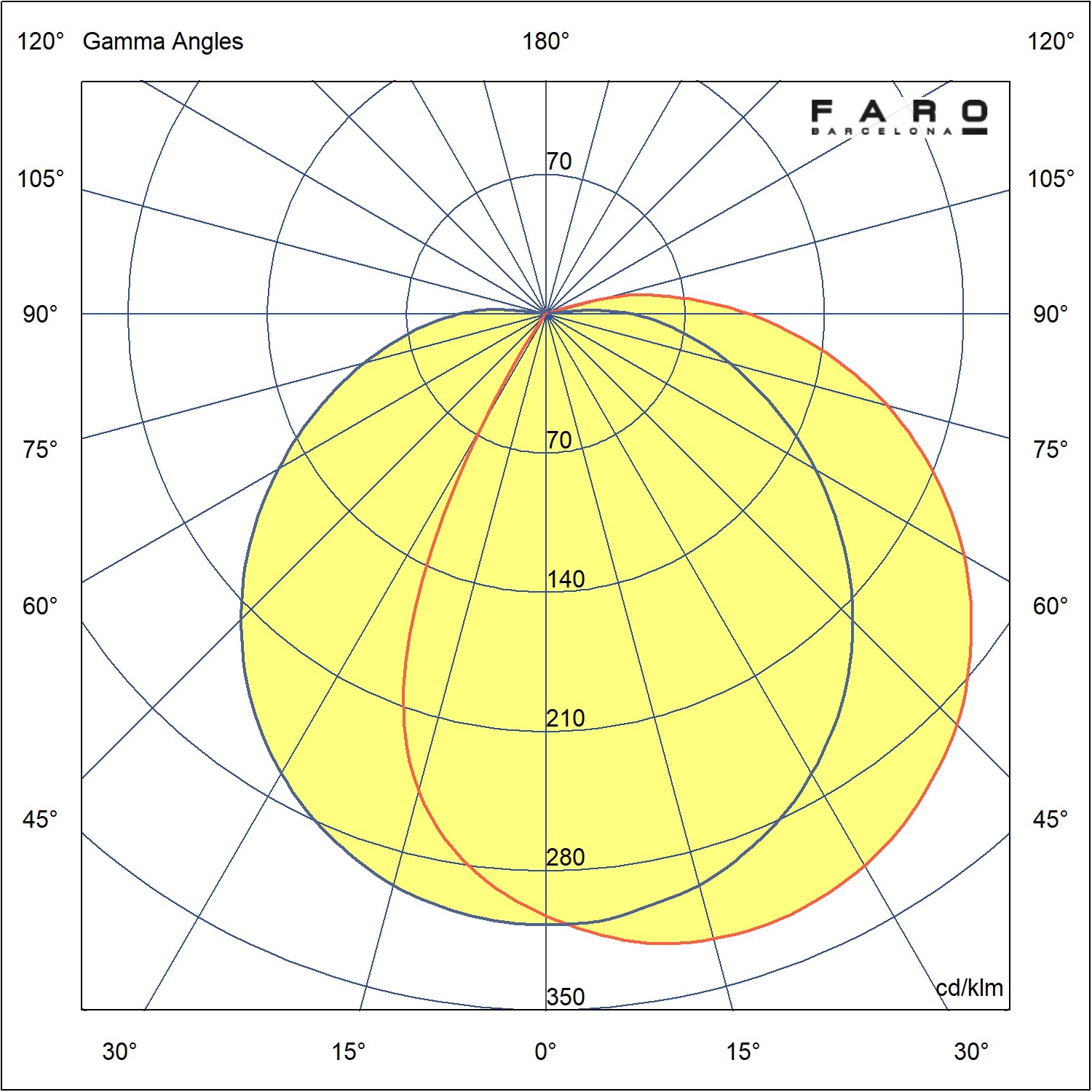

Photometric
Technical Files
2D / 3D
BIM
Energy label
