Ref: 03902T2721D
Favourite
LINSE RECESSED is a white recessed spotlight with 24° optics, THRIVE LED, 2700K and CRI90. Compatible with DALI.
Related products
Catalog
Technical features
View technical sheet
Download technical sheet
Instructions
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
II
IP:
20
voltage:
220V-240V
Hertz:
50/60Hz
Max. Power:
20W
Cutting size:
ø 40mm
Control system:
DALI
Minimum recessed height:
55mm
Material
Body/Structure:
Aluminium + Aluminium
Diffuser:
PC
Finish
Body/Structure:
Black+Black
Diffuser:
Transparent
Lighting characteristics
Light source included:
Yes
Light source:
COB LED
Dimmable:
Yes
Maximum ceiling thickness:
30mm
Temperature:
2700K
MacAdam Steps:
2 SDCM
Lumens:
1449lm
CRI:
97
Lumen maintenance / LED lifespan:
50.000h L90 B10
Degrees of light aperture:
24º
Light direction:
Direct
Energy classification:
F
Tilt angle:
90
Rotation angle 1:
355
Driver
Driver included:
Yes
Power factor:
0.8
Dimensions and photometrics
Download files
Download files
Technical data sheet
Instructions
Images

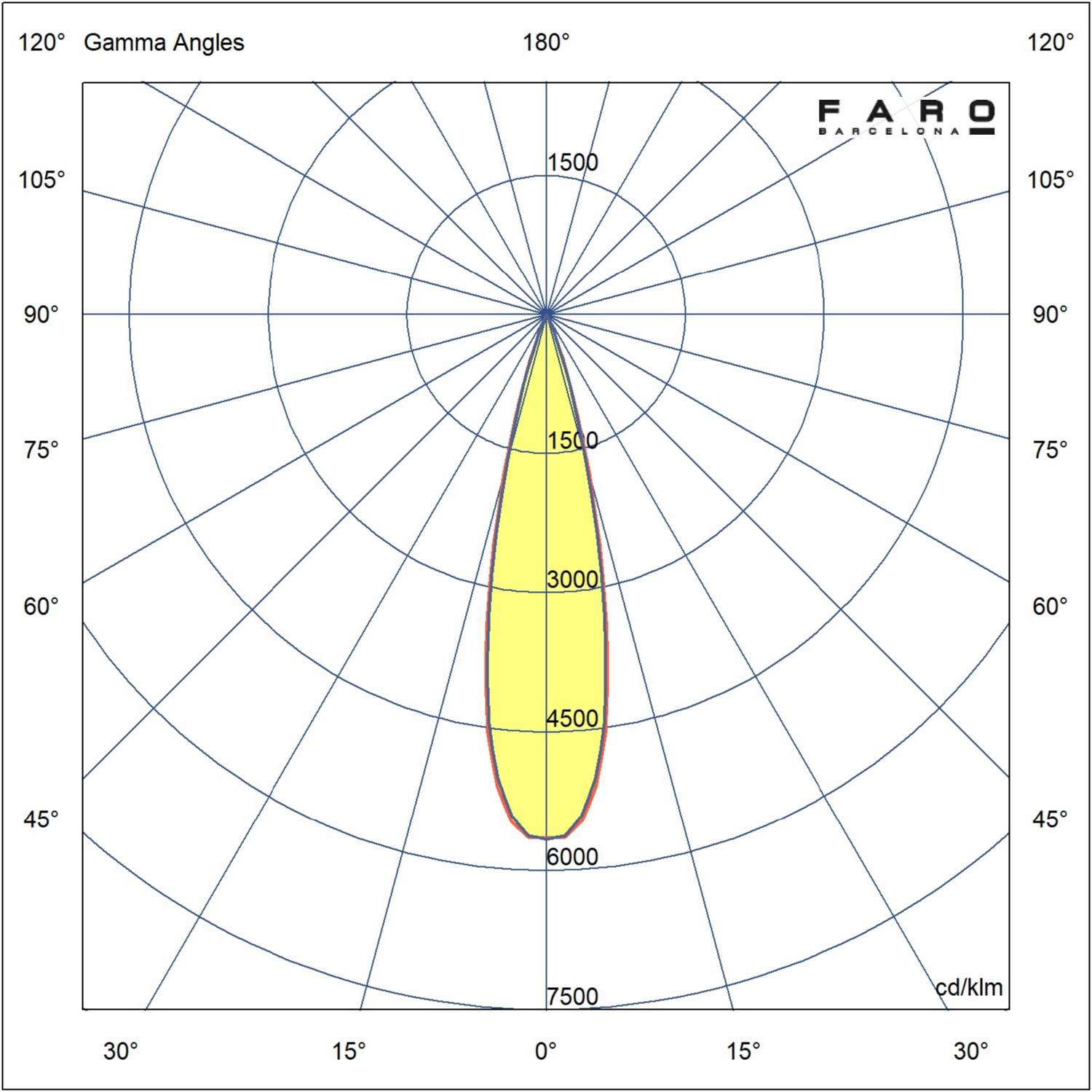

Photometric
