LINSE RECESSED 10W white 50º 2700K CRI90 DALI
Ref: 0390192751D
Favourite
LINSE RECESSED is a white recessed spotlight with 50° optics, 2700K and 10W. Compatible with DALI system.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: II
IP: 20
voltage: 220V-240V
Hertz: 50/60Hz
Max. Power: 10W
Cutting size: ø 40mm
Control system: DALI
Minimum recessed height: 55mm
Material
Body/Structure: Aluminium + Aluminium
Diffuser: PC
Finish
Body/Structure: Black+Black
Diffuser: Transparent
Lighting characteristics
Light source included: Yes
Light source: COB LED
Dimmable: Yes
Maximum ceiling thickness: 30mm
Temperature: 2700K
Lumens: 944lm
CRI: 90
Lumen maintenance / LED lifespan: 50.000h L90 B10
Degrees of light aperture: 50º
Light direction: Direct
Energy classification: F
Tilt angle: 90
Rotation angle 1: 355
Driver
Driver included: Yes
Power factor: 0.97
Dimensions and photometrics
Download files
Download files
Instructions
Technical data sheet
Instructions
Images

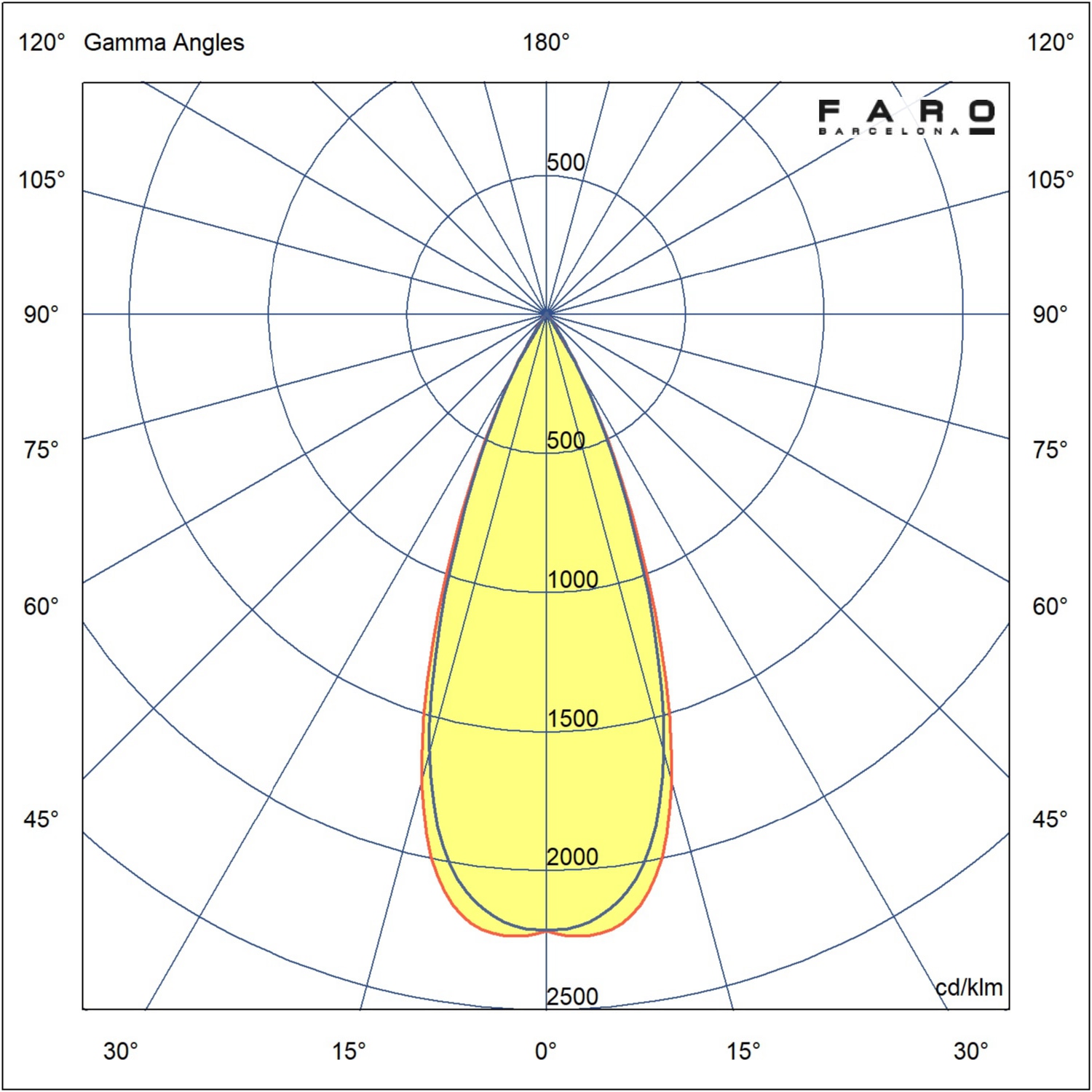

Photometric
