KOBO white downlight 27W 2700K CRI90 UGR

Related products

KOBO white downlight 27W 2700K CRI90 UGR<19 60° IP65 DALI

Ref: 035492761D

Favourite

KOBO is an IP65 downlight for general lighting with UGR<19 and color white, with a color temperature of 2700K, a CRI90 and a power of 25W.It also has a DALI control system. This downlight is ideal for lighting in hospitals, clinics, gyms and even spas.

scroll to see more

Technical features

View technical sheet Download technical sheet Instructions

Specifications

General characteristics

Lighting characteristics

Driver

General characteristics

Fixation: Ceiling

Type: II

IP: 65

voltage: 220V-240V

Power supply current: 700 mA

Hertz: 60Hz

Max. Power: 27W

Cutting size: ø 195mm

Control system: DALI

Minimum recessed height: 130mm

Material

Body/Structure: Aluminium + Glass

Diffuser: Glass

Finish

Body/Structure: White+Transparent

Diffuser: Transparent

Lighting characteristics

Light source included: Yes

Light source: SMD LED

Dimmable: Yes

Maximum ceiling thickness: 35mm

Temperature: 2700K

Lumens: 2394lm

CRI: 90

Lumen maintenance / LED lifespan: 50.000h L70 B10

Degrees of light aperture: 60º

Light direction: Direct-Indirect

Eficiencia: 90

Type of lighting: AMBIENTAL

Incandescent filament: 650

Driver

Driver included: Yes

Driver regulation: DALI 2

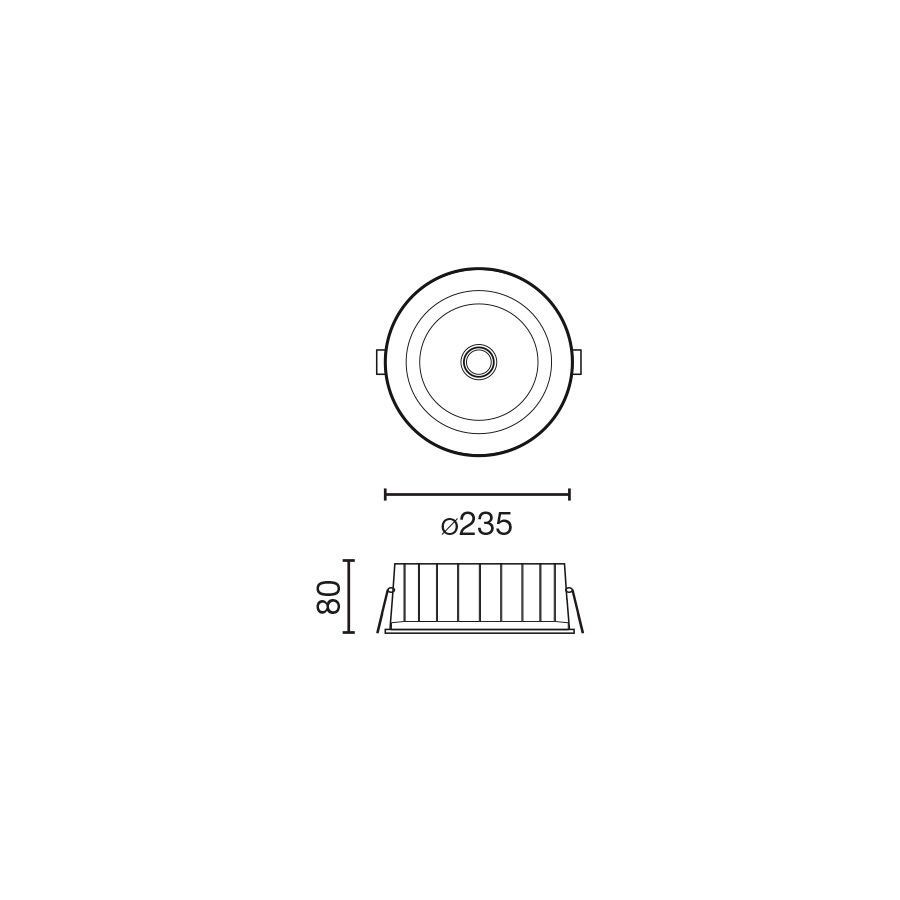

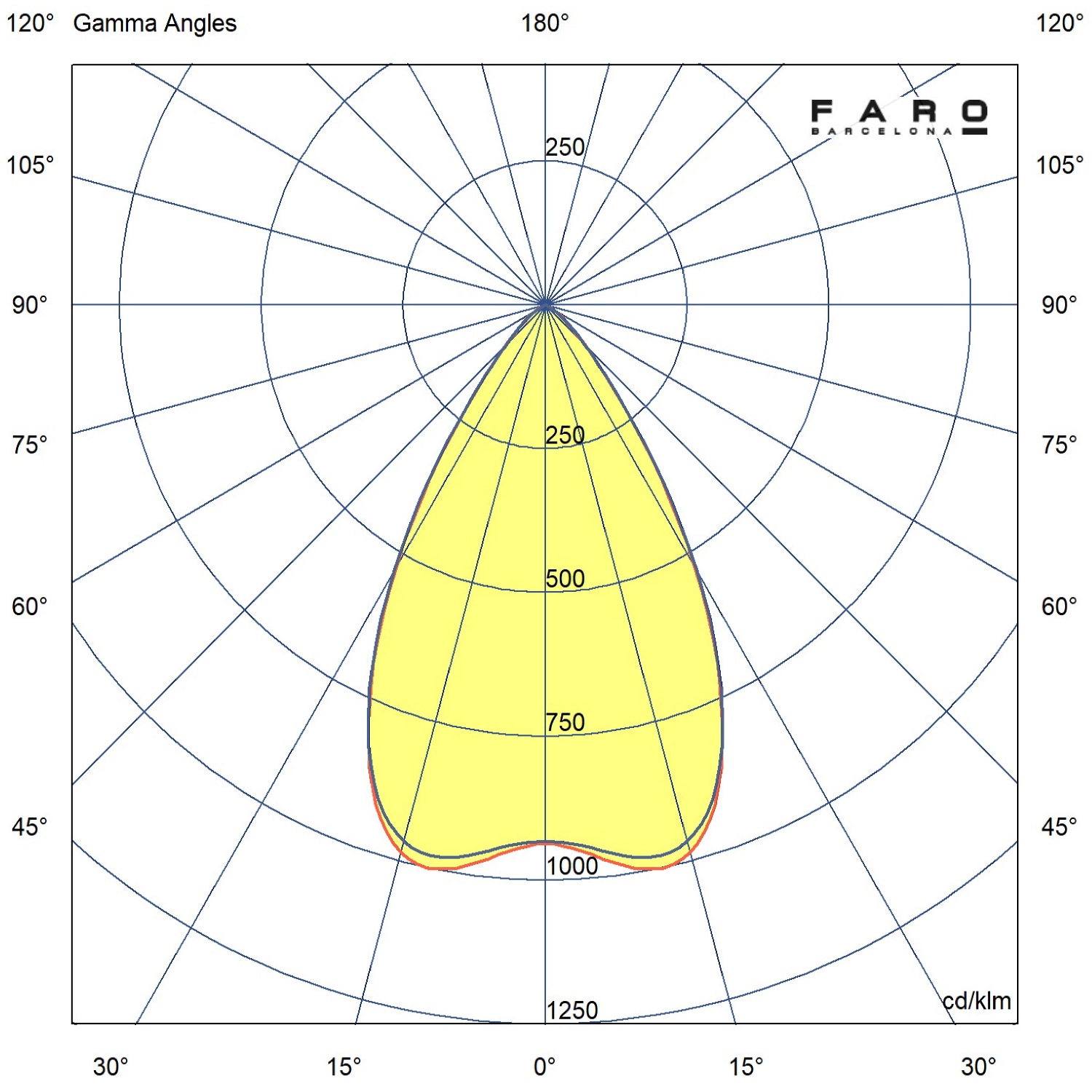

Dimensions and photometrics
