Home >  Collection >  ARCHITECTURAL >  RECESSED LAMP >  Ceiling >  KIRA PINHOLE White ORIENTABLE IP65 6W 36º 2700K TRIAC
KIRA PINHOLE White ORIENTABLE IP65 6W 36º 2700K TRIAC
Ref: 03756692731C
Favourite
KIRA is a white orientable recessed pinhole downlight 15W in white finish with IP65 protection. KIRA offers 36° optics for precise and focused lighting with 2700K color temperature. Compatible with TRIAC control system for smart and versatile indoor lighting management.
scroll to see more
Technical features
View technical sheet Download technical sheet
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: II
IP: 65
voltage: 220V-240V
Hertz: 50/60Hz
Max. Power: 7W
Cutting size: 60mm
Control system: TRIAC
Minimum recessed height: 100mm
UGR: 19
Material
Body/Structure: Aluminium
Diffuser: PMMA
Finish
Body/Structure: White
Lighting characteristics
Light source: LED MODULE
Maximum ceiling thickness: 22mm
Temperature: 2700K
Lumens: 510lm
CRI: 90
Lumen maintenance / LED lifespan: 50.000h L70 B10
Degrees of light aperture: 36º
Light direction: Direct
Energy classification: F
Tilt angle: 30
Driver
Driver included: Yes
Power factor: 0.95
Dimensions and photometrics

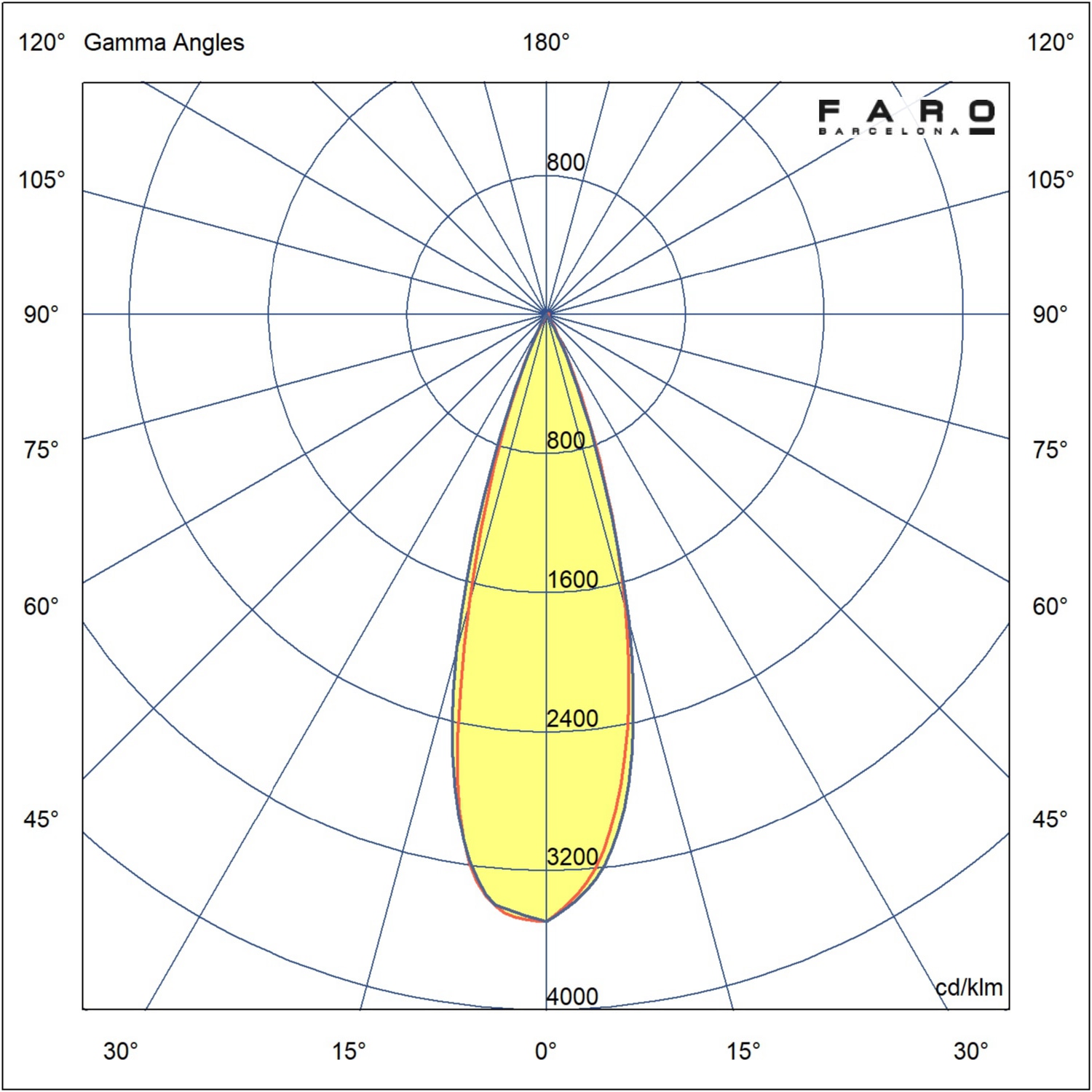

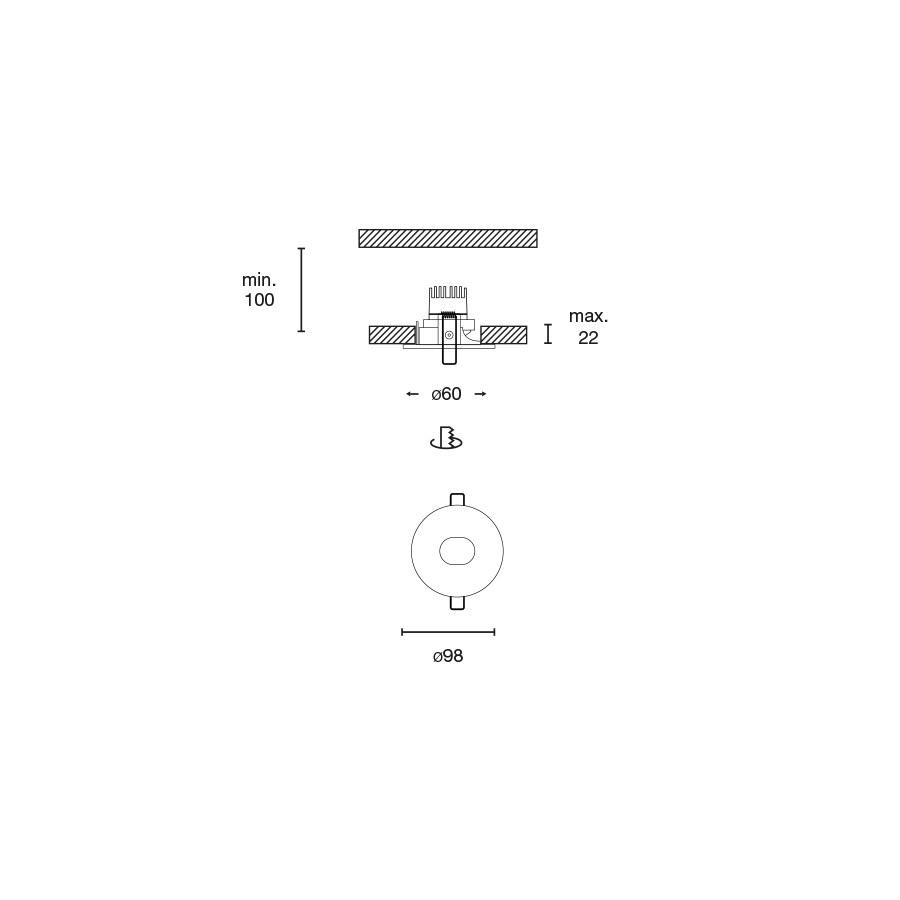

Technical drawing Photometric
