KIRA PINHOLE ORIENTABLE IP20 6W black 36º 4000K TRIAC
Ref: 03752694032C
Favourite
KIRA is a orientable recessed pinhole downlight 6W in black finish with IP20 protection. KIRA offers 36° optics for precise and focused lighting with 4000K color temperature. Compatible with TRIAC control system for smart and versatile indoor lighting management.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: II
IP: 20
voltage: 220V-240V
Hertz: 50/60Hz
Max. Power: 7W
Cutting size: 60mm
Control system: TRIAC
Minimum recessed height: 100mm
UGR: 19
Material
Body/Structure: Aluminium
Diffuser: PMMA
Finish
Body/Structure: Black
Lighting characteristics
Light source: LED MODULE
Maximum ceiling thickness: 22mm
Temperature: 4000K
Lumens: 602lm
CRI: 90
Lumen maintenance / LED lifespan: 50.000h L70 B10
Degrees of light aperture: 36º
Light direction: Direct
Energy classification: E
Tilt angle: 30
Driver
Driver included: Yes
Power factor: 0.95
Dimensions and photometrics

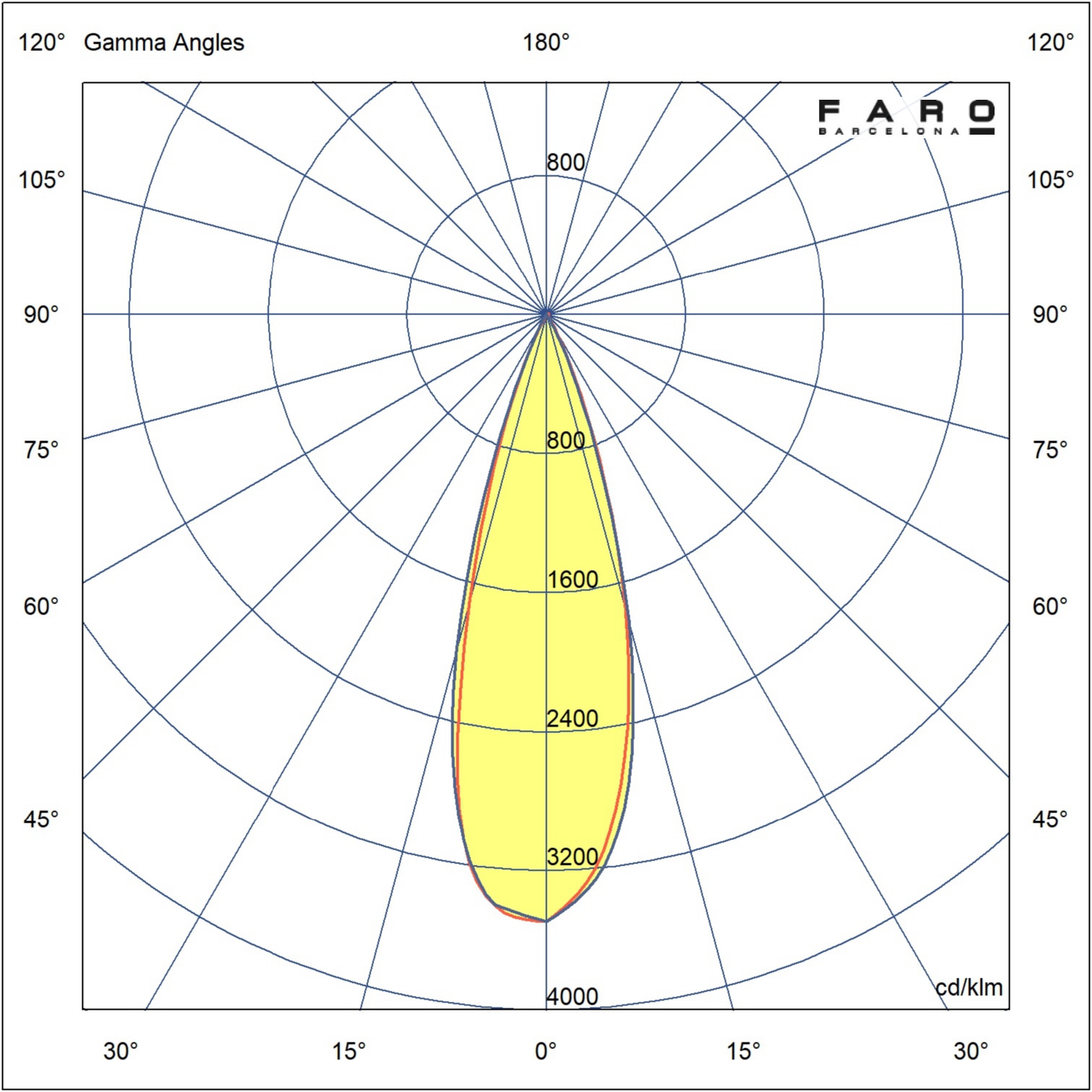

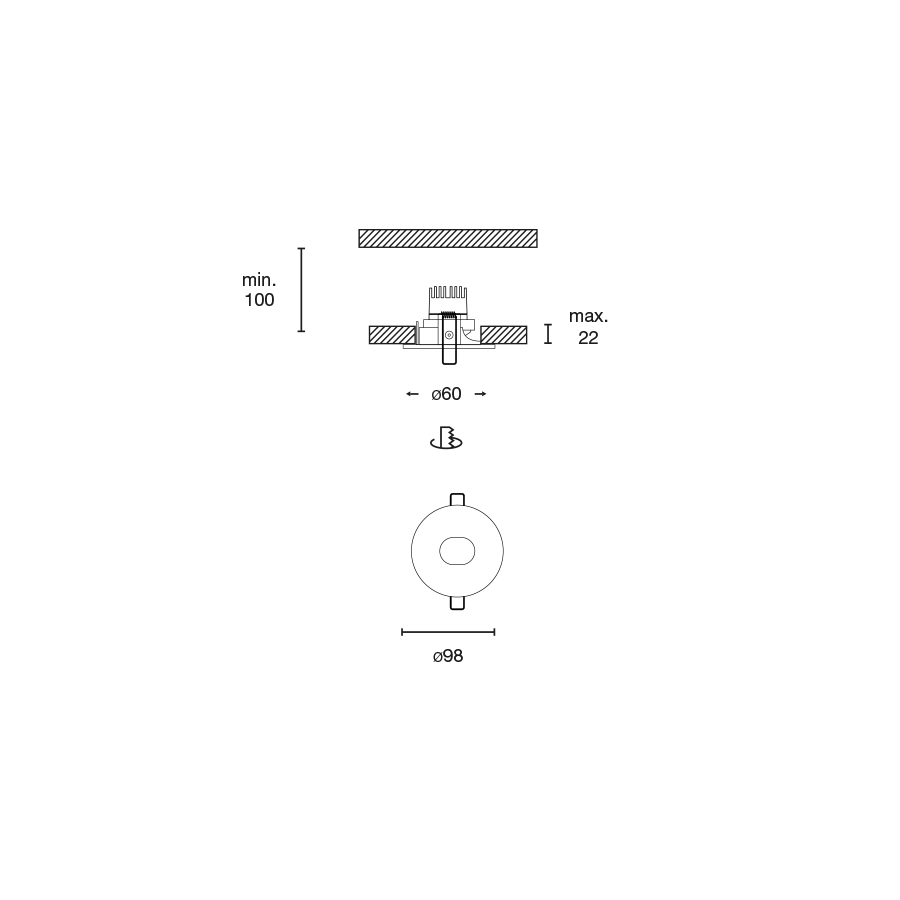

Technical drawing Photometric
