KIRA PINHOLE FIX IP65 15W black 24º 3000K
Ref: 03746593022
Favourite
KIRA is a fixed recessed pinhole downlight 15W in black finish with IP65 protection. KIRA offers 24° optics for precise and focused lighting with 3000K color temperature. With an ON/OFF control system.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: II
IP: 65
voltage: 220V-240V
Hertz: 50/60Hz
Max. Power: 15W
Cutting size: 60mm
Control system: On/off
Minimum recessed height: 100mm
UGR: 19
Material
Body/Structure: Aluminium
Diffuser: PMMA
Finish
Body/Structure: Black
Lighting characteristics
Light source: LED MODULE
Maximum ceiling thickness: 22mm
Temperature: 3000K
Lumens: 803lm
CRI: 90
Lumen maintenance / LED lifespan: 50.000h L70 B10
Degrees of light aperture: 24º
Light direction: Direct
Energy classification: F
Driver
Driver included: Yes
Power factor: 0.95
Dimensions and photometrics

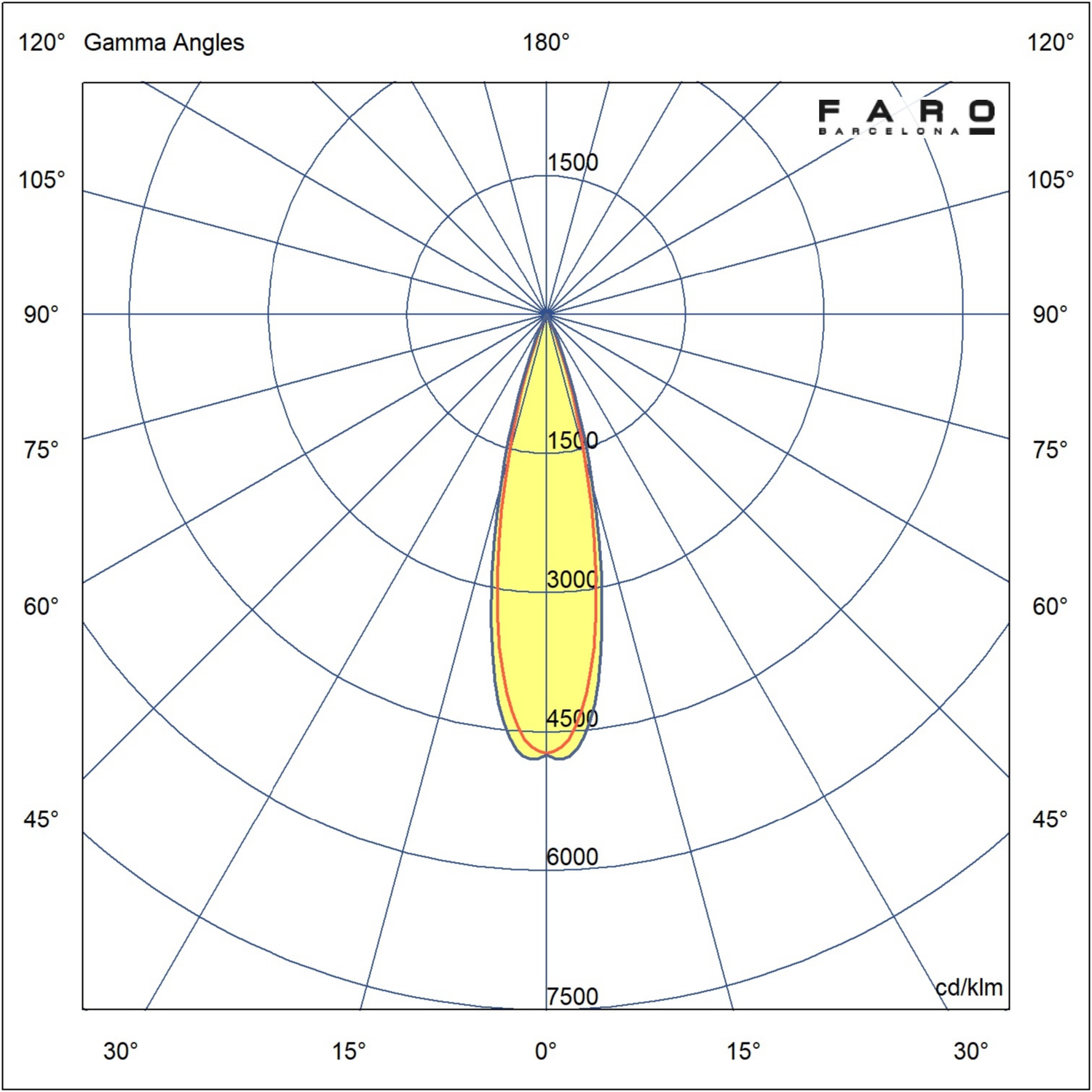

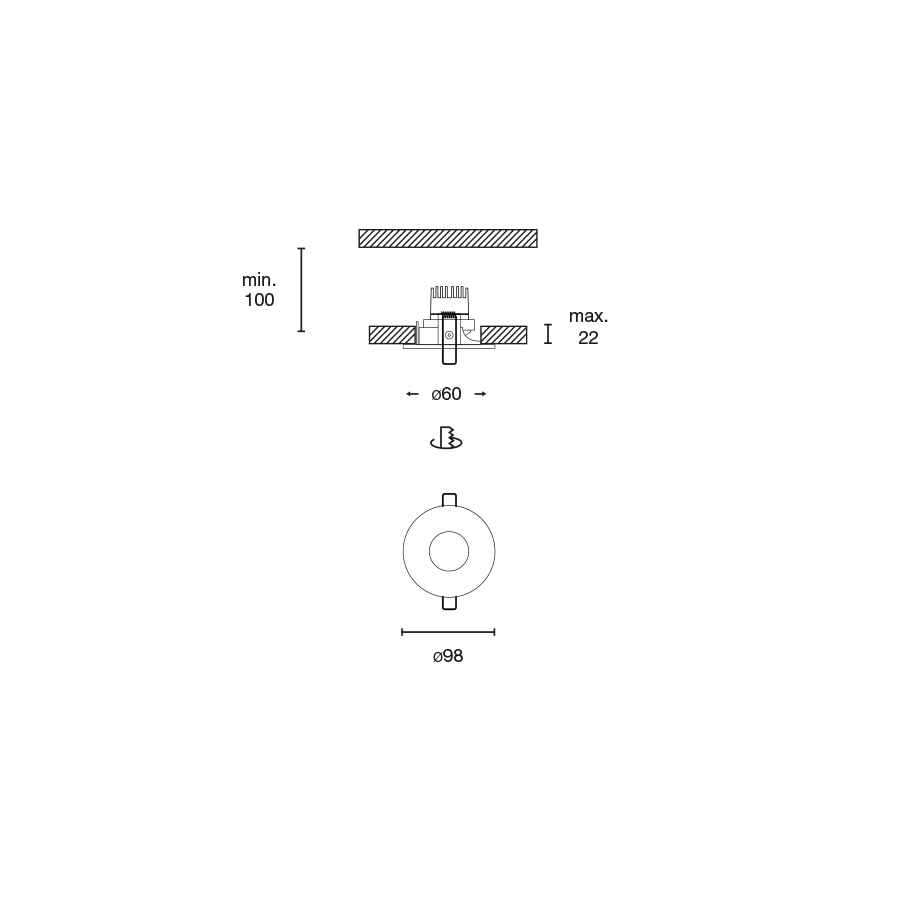

Technical drawing Photometric
