Home >  Collection >  ARCHITECTURAL >  RECESSED LAMP >  Ceiling >  KIRA PINHOLE FIX IP65 10W white 24º 4000K
KIRA PINHOLE FIX IP65 10W white 24º 4000K
Ref: 03746194021
Favourite
KIRA is a fixed recessed pinhole downlight 10W in white finish with IP65 protection. KIRA offers 24° optics for precise and focused lighting with 4000K color temperature. With an ON/OFF control system.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: II
IP: 65
voltage: 220V-240V
Hertz: 50/60Hz
Max. Power: 10W
Cutting size: 60mm
Control system: On/off
Minimum recessed height: 100mm
UGR: 19
Material
Body/Structure: Aluminium
Diffuser: PMMA
Finish
Body/Structure: White
Lighting characteristics
Light source: LED MODULE
Maximum ceiling thickness: 22mm
Temperature: 4000K
Lumens: 667lm
CRI: 90
Lumen maintenance / LED lifespan: 50.000h L70 B10
Degrees of light aperture: 24º
Light direction: Direct
Energy classification: E
Driver
Driver included: Yes
Power factor: 0.95
Dimensions and photometrics

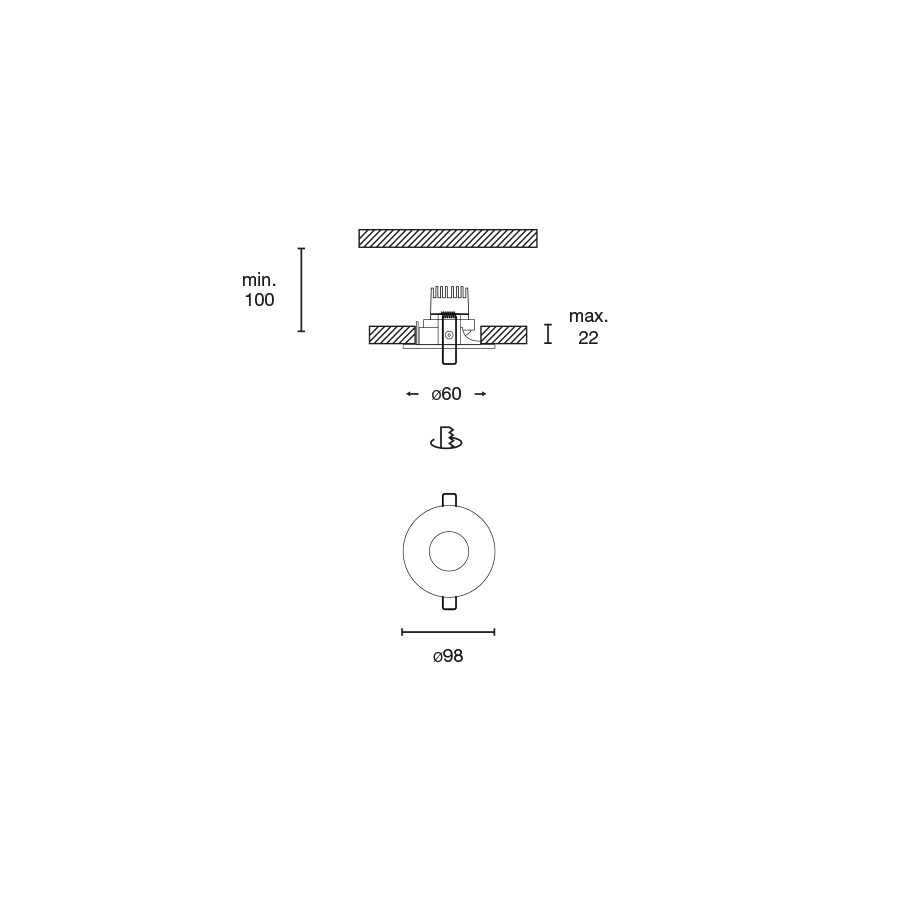

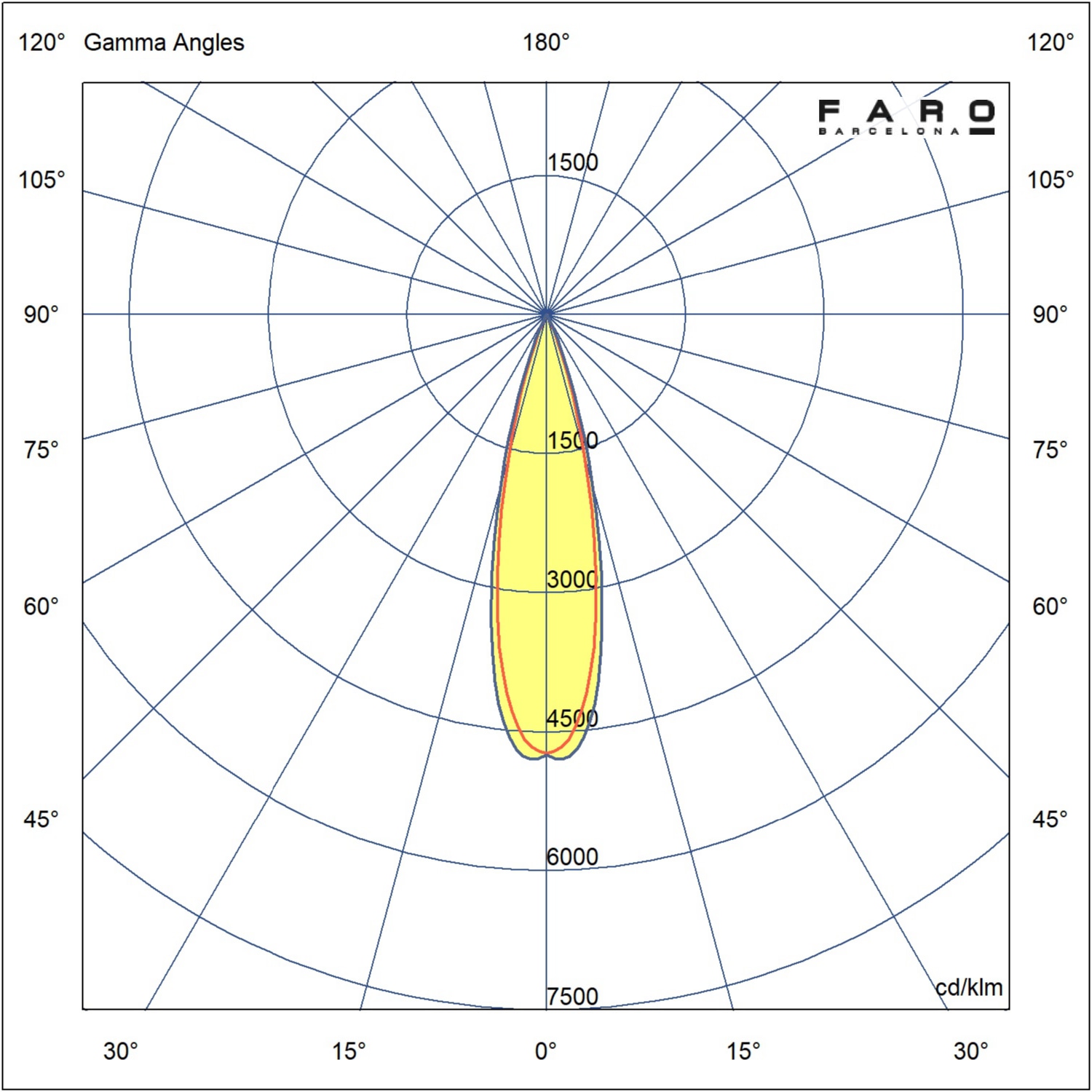

Technical drawing Photometric
