KIRA PINHOLE FIX IP20 6W white 24º 4000K

Related products

Ref: 03742694021

Favourite

KIRA is a fixed recessed pinhole downlight 6W in white finish with IP20 protection. KIRA offers 24° optics for precise and focused lighting with 4000K color temperature. With an ON/OFF control system.

scroll to see more

Technical features

View technical sheet Download technical sheet Instructions

Specifications

General characteristics

Lighting characteristics

Driver

General characteristics

Fixation: Ceiling

Type: II

IP: 20

voltage: 220V-240V

Hertz: 50/60Hz

Max. Power: 7W

Cutting size: 60mm

Control system: On/off

Minimum recessed height: 100mm

UGR: 19

Material

Body/Structure: Aluminium

Diffuser: PMMA

Finish

Body/Structure: White

Lighting characteristics

Light source: LED MODULE

Maximum ceiling thickness: 22mm

Temperature: 4000K

Lumens: 482lm

CRI: 90

Lumen maintenance / LED lifespan: 50.000h L70 B10

Degrees of light aperture: 24º

Light direction: Direct

Energy classification: E

Driver

Driver included: Yes

Power factor: 0.95

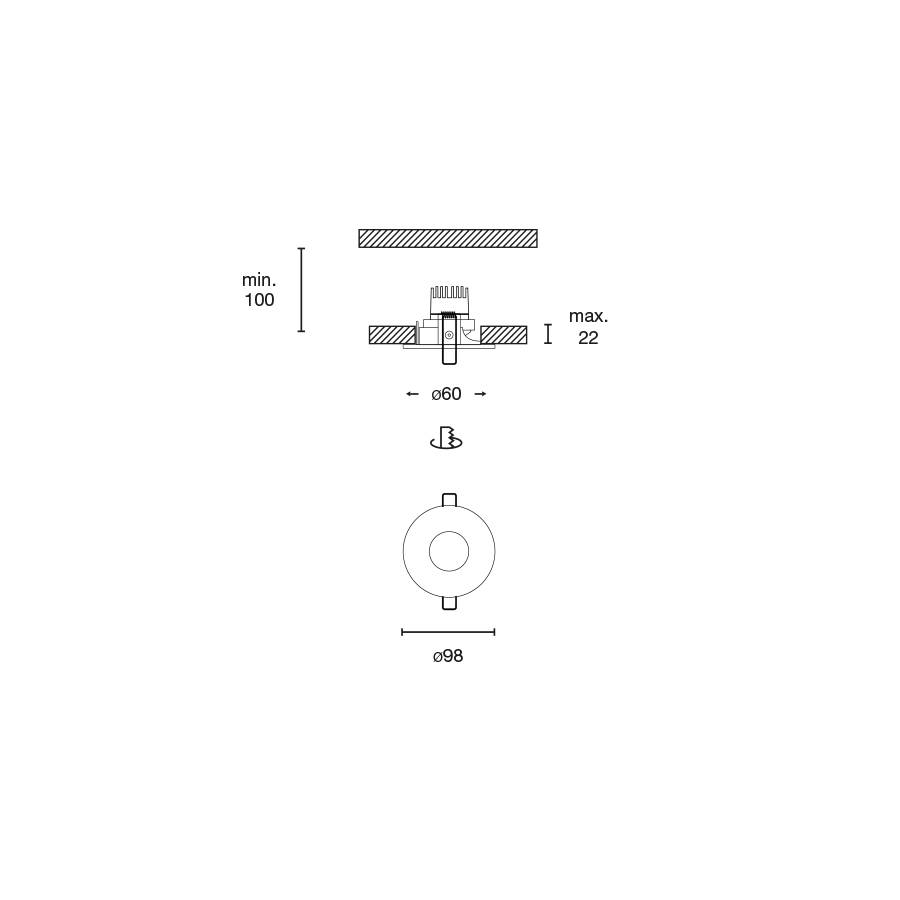

Dimensions and photometrics

Download files

Instructions

Technical data sheet

Instructions

Images

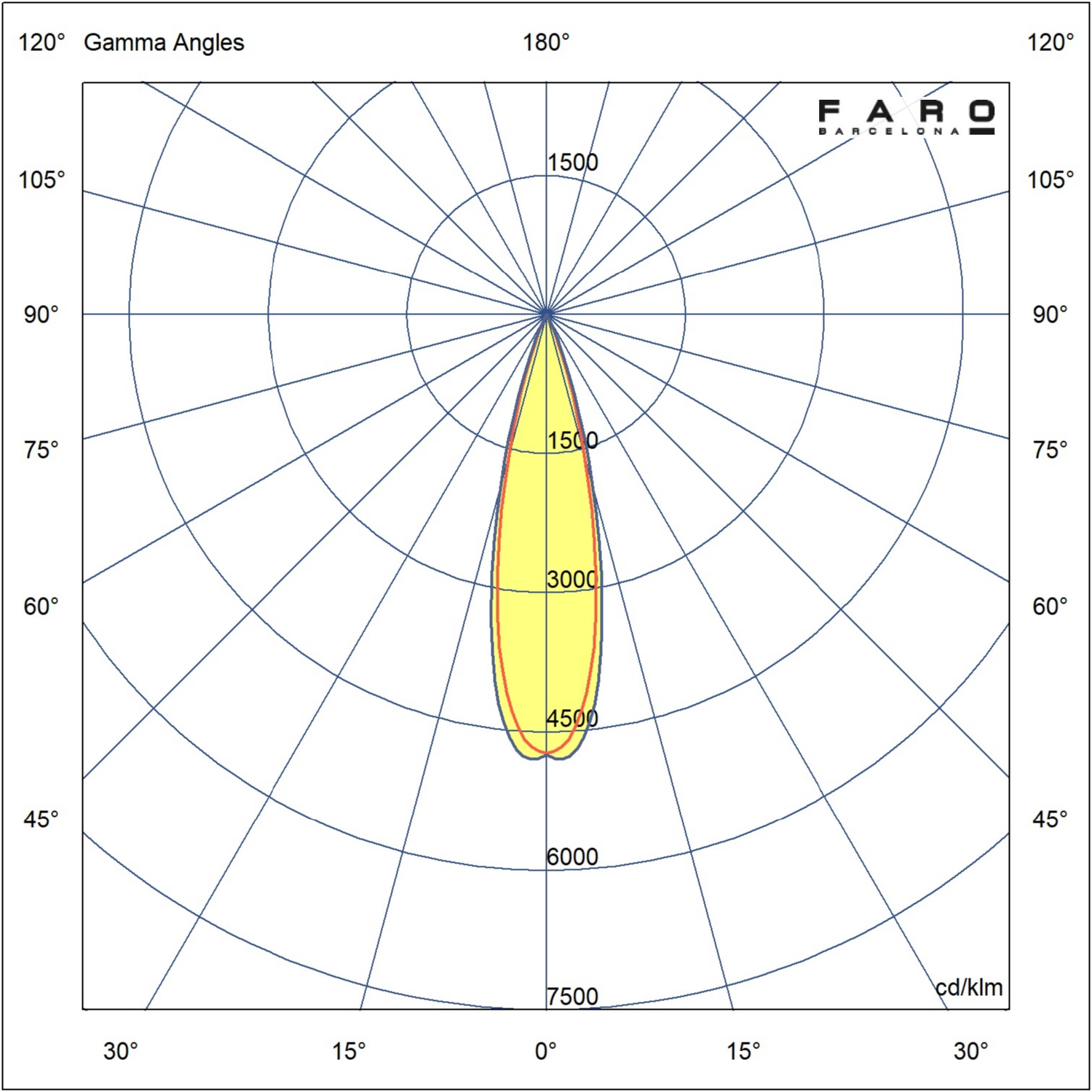

Photometric
