Ref: 090092711C
Favourite
IZAR is a collection of technical luminaires with adjustable tilt levels. This makes it an ideal choice for projects requiring precise control of the light focus.
Related products
Catalog
Technical features
View technical sheet
Download technical sheet
Instructions
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
II
IP:
20
voltage:
220V-240V
Power supply current:
500 mA
Hertz:
50/60Hz
Flush box dimensions :
275x275x447
Max. Power:
6W
Cutting size:
ø 75mm
Control system:
TRIAC
Minimum recessed height:
92mm
Material
Body/Structure:
Aluminium + Aluminium
Finish
Body/Structure:
White+Black
Lighting characteristics
Light source included:
Yes
Light source:
COB LED
Dimmable:
Yes
Maximum ceiling thickness:
25mm
Temperature:
2700K
Lumens:
228lm
CRI:
90
Lumen maintenance / LED lifespan:
50.000h L70 B10
Degrees of light aperture:
35º
Type of lighting:
ACENTO
Incandescent filament:
650
Driver
Driver included:
Yes
Power factor:
0.8

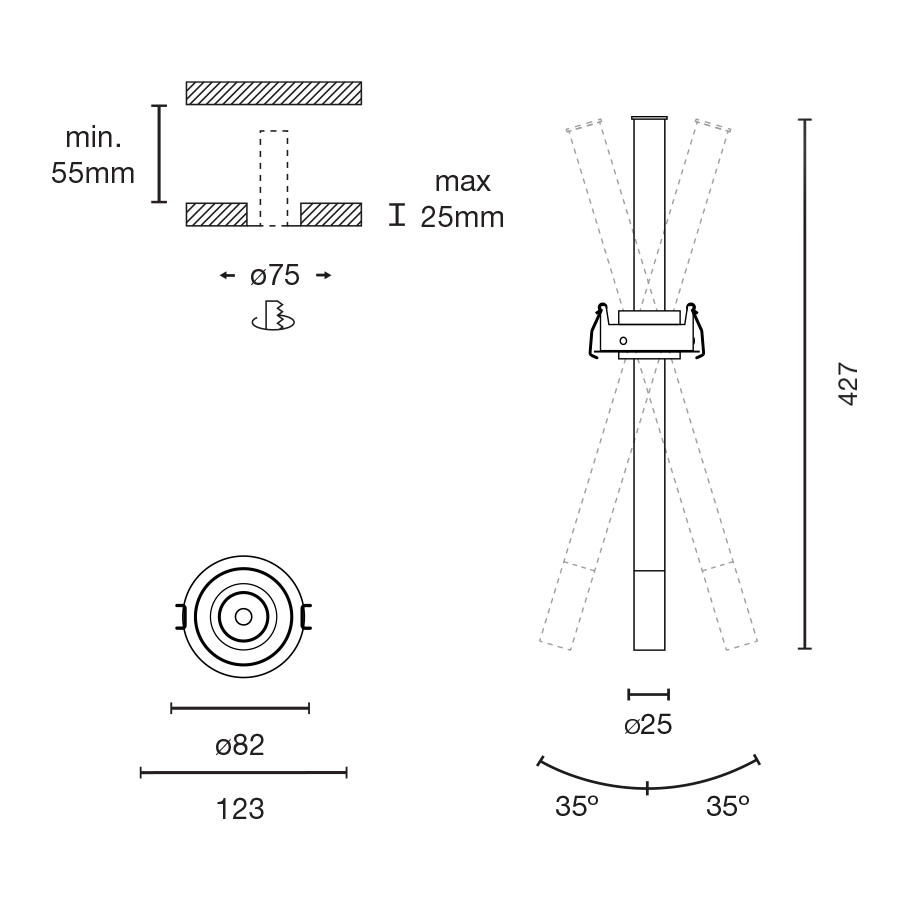

Dimensions and photometrics
See 3D projection
Load interactive experience
Download files
Download files
Technical data sheet
Instructions
Images

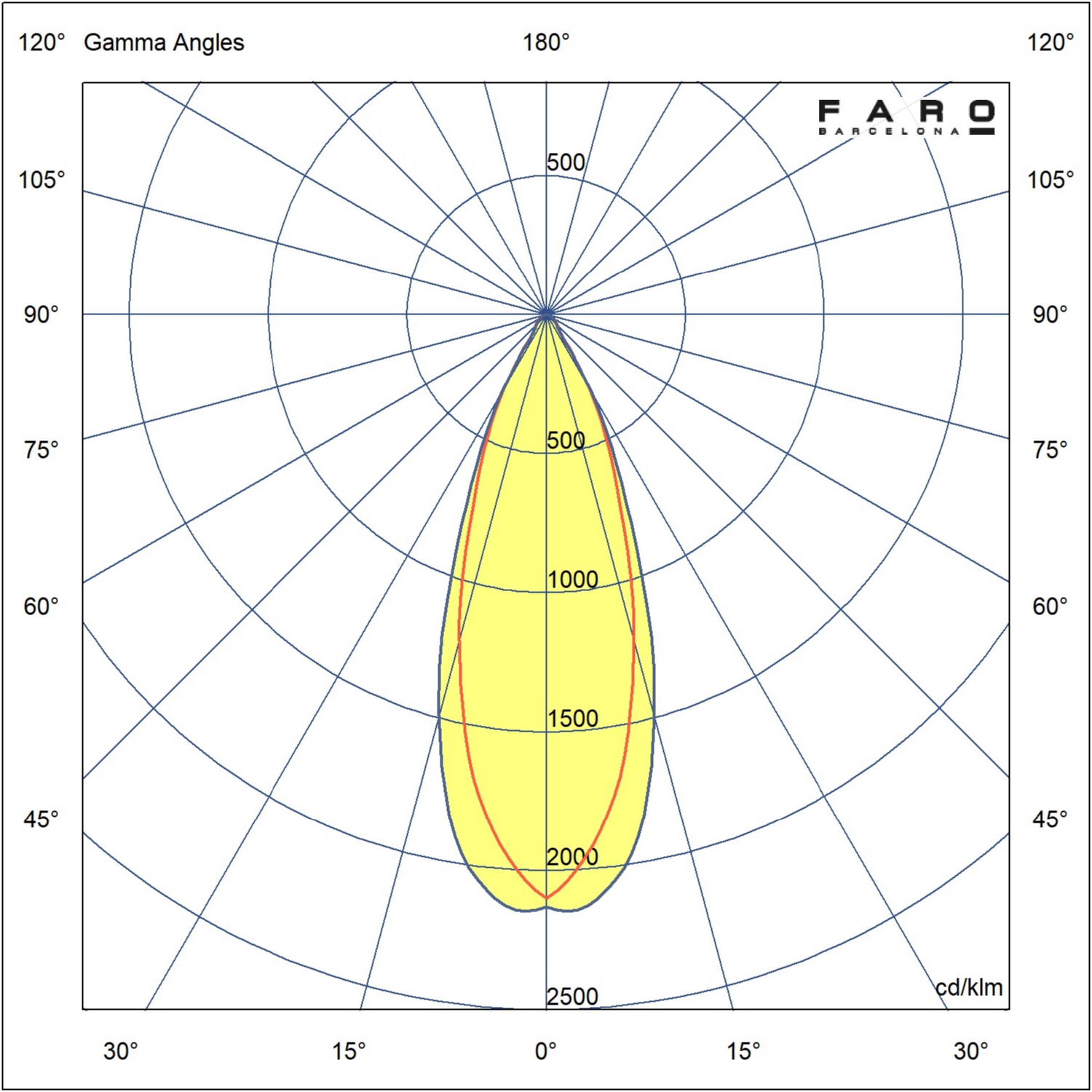

Photometric
