ICE is a designer fan by Estudi Ribaudí, which includes a LED light kit and speaker (frequency range 20Hz-20KHz, Max 4Ω 13W 90DB), ideal for rooms over 17m2. The light source of this ceiling fan is SMD LED 12W of warm light (included). Motor built in steel, reversible PLYWOOD blades finished in white and maple, and glass diffuser. Operated on remote control, included. ICE offers 3 adjustable speeds. This fan comes with a reverse function, so you can also use it in winter, improving the efficiency of your heating system. Suitable for incling room.
Reverse function
Thanks to the reverse function, you can change the direction of the fan blades and use it both in summer and in winter. In summer, it will help achieve a cool atmosphere and in winter it will improve the efficiency of the heating system by making the hot air that accumulates in the ceiling circulate.
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “L” size fan is ideal for rooms between 17.6 and 28 m².
Speeds
This fan has 3 speeds, which allows it to always find the most suitable one according to the need at the time, with different consumption and revolutions per minute according to speed (consult in the technical characteristics).
How to activate the fan
It has a remote control which will allow you to control your fan in a more comfortable and simpler way.
Colour temperature
This fan has a colour temperature of 3000K, which will provide you with a warm light.
Installation for sloping ceilings
Suitable for sloping ceilings, which enables the shank to fall vertically so that the fan is always flat with respect to the ceiling and ensures the best operation and comfort.
Technical features
Technical data sheet
Instructions
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
I
IP:
20
voltage:
220V-240V
Hertz:
50Hz
Max. Power:
15W
Fan Power (W):
13-25-55
RPM:
75-135-180
Airflow (m3/min):
157.52
Reverse function:
Yes
Engine type:
AC
No. of blades:
3
Reversible blades:
Yes
Pitched ceiling:
Yes
Can be installed without seat post:
No
Type of control included:
Remote control
Downrod diameter:
21
Material
Body/Structure:
Steel
Diffuser:
Glass
Blade material:
MDF
Finish
Diffuser:
Opal
Blade finish:
White
Blade finish 2:
Maple
Lighting characteristics
Light source included:
Yes
Light source:
SMD LED
Temperature:
3000K
LM:
800lm
CRI:
>80
Energy classification:
E
Additional information
Optional downrod model:
No disponible

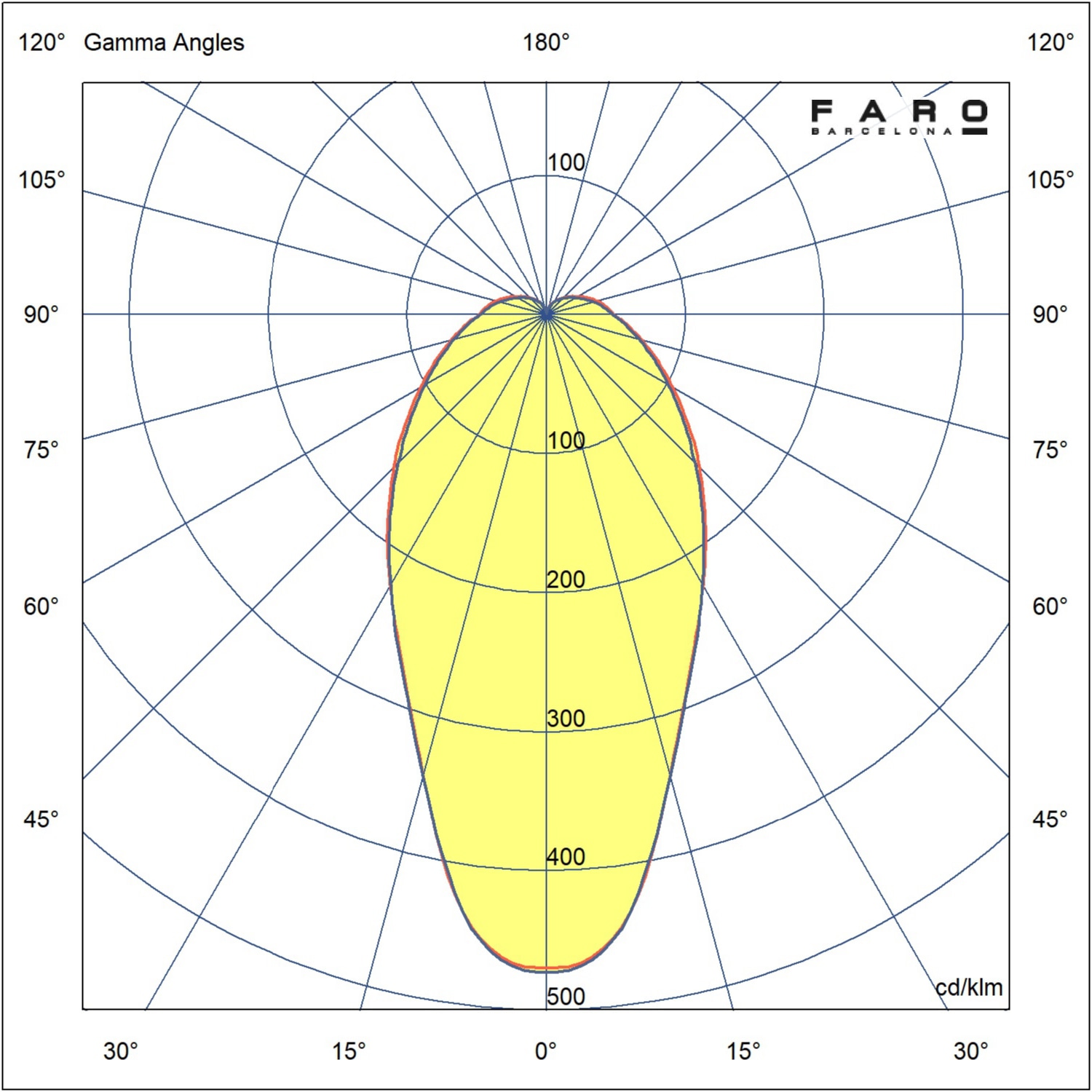

Dimensions and photometrics
