Home >  Collection >  OUTDOOR >  RECESSED >  Floor >  FALLS 290 Orientable downlight 9W 25º
FALLS 290 Orientable downlight 9W 25º
Ref: 71730
Favourite
Discontinued
FALLS is a built-in with transparent diffuser perfect for all types of projects. It has IP65 which gives it high protection against rain and solid bodies. Adjustable option.
scroll to see more
Detachable and recyclable
Our products can be disassembled to facilitate the recycling of their components. Each component can be separated to ensure proper sorting and recycling. We contribute to a more sustainable future by promoting environmentally friendly practices from design to final disposal.
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Recommended electrical equipment
Specifications
General characteristics
Lighting characteristics
General characteristics
Fixation: Floor
Type: III
IP: 67
voltage: 24VDC
Flush box dimensions : 310x52x100mm
Max. Power: 8W
IK: 09
Cutting size: 310x52mm
Material
Body/Structure: Stainless Steel 316L
Diffuser: Glass
Finish
Body/Structure: Satin Stainless
Diffuser: Transparent
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Temperature: 3000K
Lumens: 672lm
CRI: ≥90
Degrees of light aperture: 25º
Weight supported: 1000kg
Energy classification: G
Recommended electrical equipment
POWER SUPPLY 24VDC 120W 5A Casambi See more
Architectural
POWER SUPPLY 24VDC 120W 5A Casambi
Reference: 98324599
DRIVER UNIVERSAL 24Vdc 1-20 (10) W See more
Architectural
DRIVER UNIVERSAL 24Vdc 1-20 (10) W
Reference: 98324020U
Dimensions and photometrics
See 3D projection

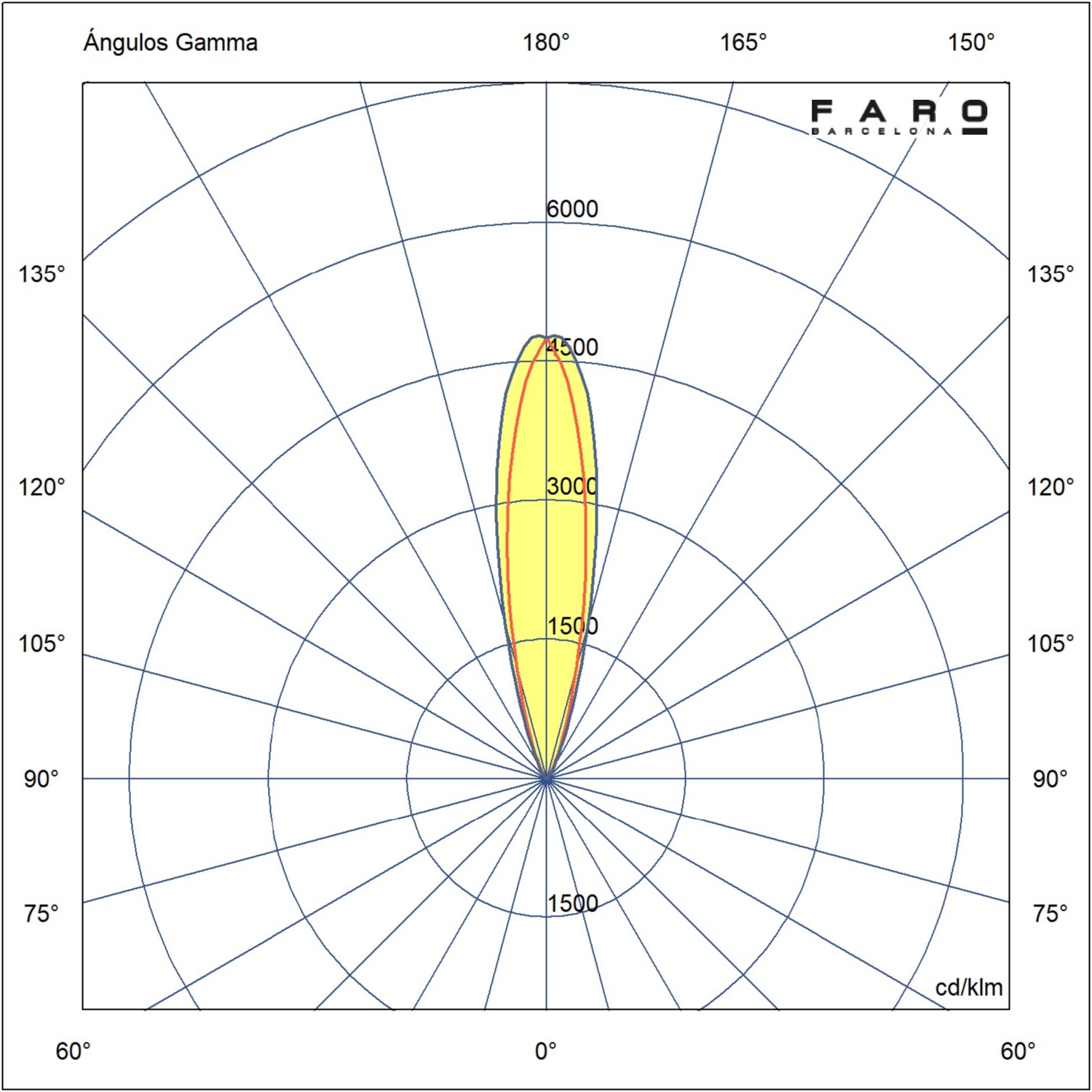

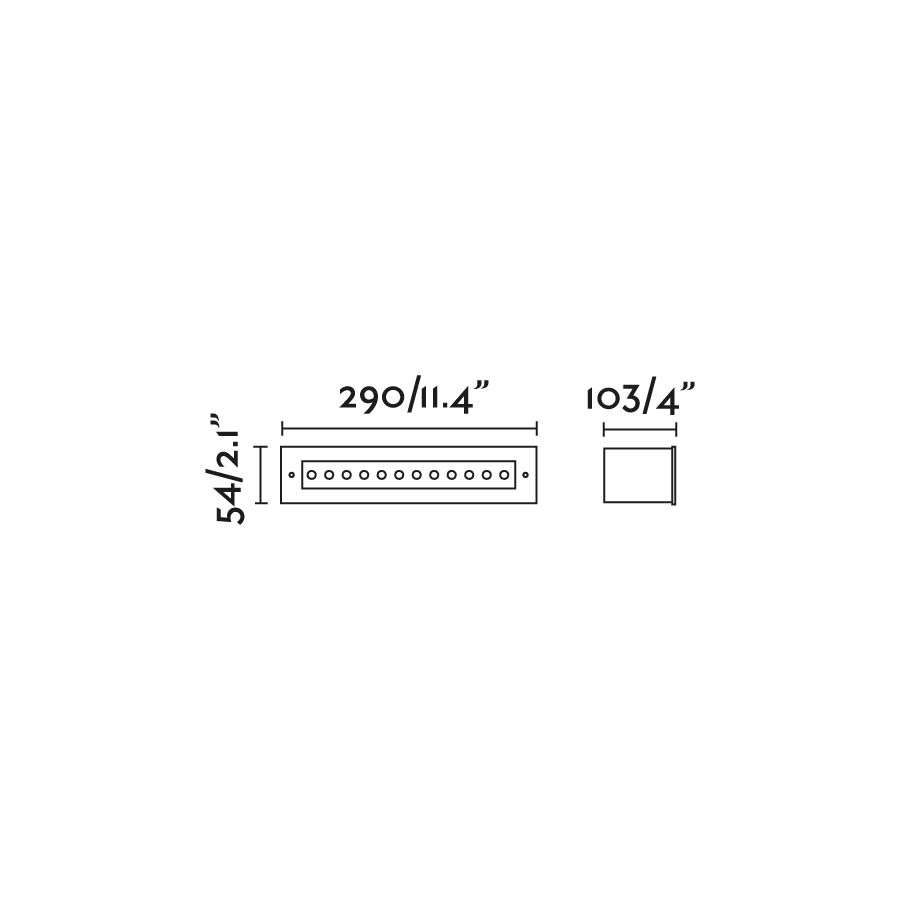

Technical drawing Photometric
