The ETERFAN ceiling fan is the perfect fusion of industrial style and sinuous design. Bright red version with light kit and integrated Smart WiZ system. Its elegant and versatile structure allows you to combine body and blade colours, transforming any space into a modern and functional environment.
Related products
Catalog
Reverse function
Thanks to the reverse function, you can change the direction of the fan blades and use it both in summer and in winter. In summer, it will help achieve a cool atmosphere and in winter it will improve the efficiency of the heating system by making the hot air that accumulates in the ceiling circulate.
How to activate the fan
It has a programmable remote control which will allow you to control your fan in a more comfortable and simpler way.
Fan with intelligent control
Control your fan with the WiZ application. This intelligent control has the same functionalities as a remote control. It operates with 2.4 GHz WIFI. It is compatible with Alexa, Google Assistant and Siri. Discover its advantages here.
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “M” size fan is ideal for rooms between 13 and 17.6 m².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Colour temperature
This fan has a colour temperature of 3000K, which will provide you with a warm light.
Technical features
View technical sheet
Download technical sheet
Specifications
Accesories
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
I
IP:
20
voltage:
220V-240V
Hertz:
50/60Hz
Max. Power:
16W
Fan Power (W):
4-6-9-13-22-32
Airflow (m3/min):
145
Airflow (CFM):
5143
RPM:
51-77-103-129-155-185
Reverse function:
Yes
Engine type:
DC
No. of blades:
3
Reversible blades:
No
Pitched ceiling:
No
Downrod diameter:
26
Material
Body/Structure:
Steel + Glass
Diffuser:
Glass
Blade material:
PC
Finish
Body/Structure:
Gloss Red
Diffuser:
Opal
Blade finish:
Transparent
Lighting characteristics
Light source included:
Yes
Light source:
SMD LED
Dimmable:
No
Temperature:
3000K
Lumens:
709lm
CRI:
>80
Energy classification:
E
Additional information
Length of the included rods :
460
Optional downrod model:
No dispone

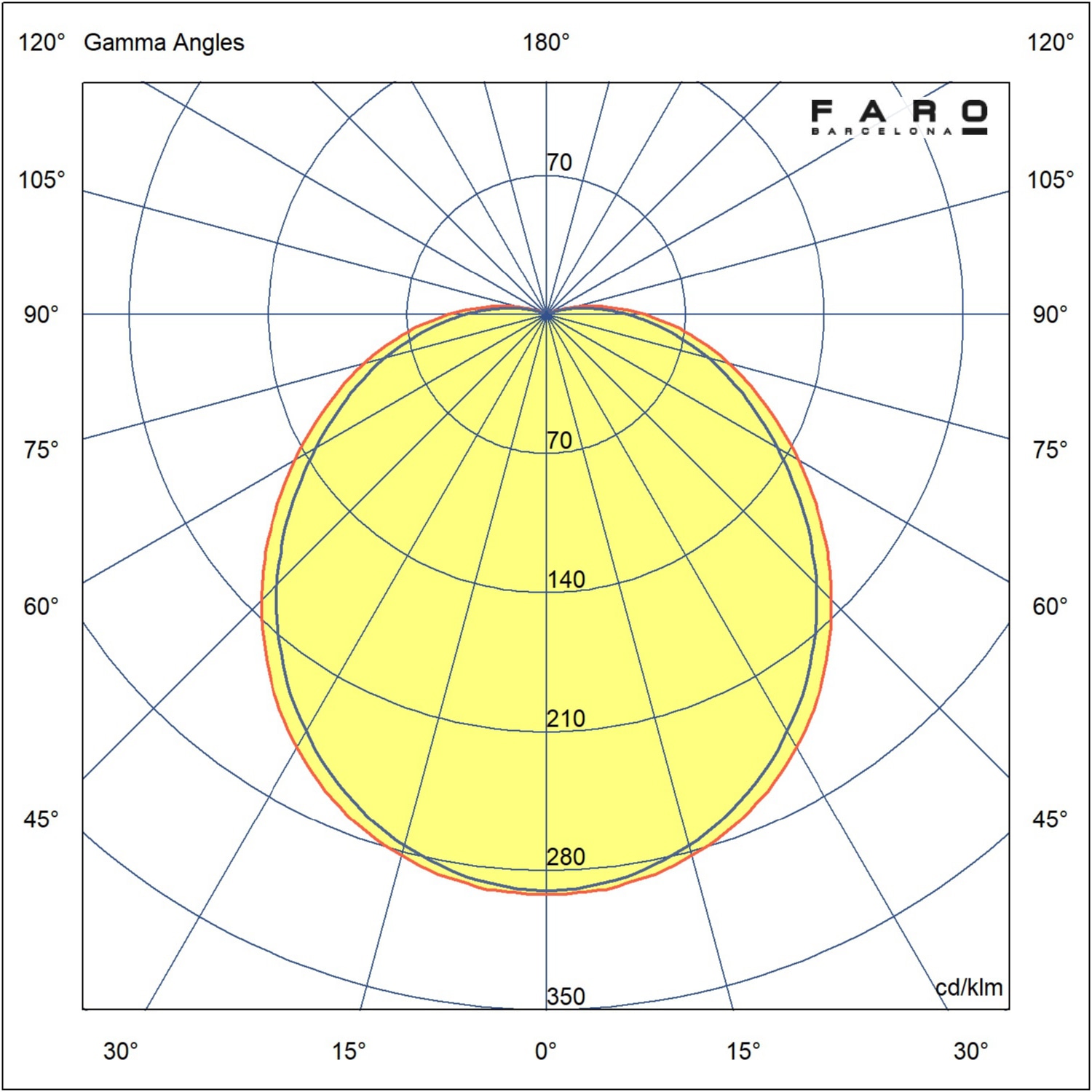

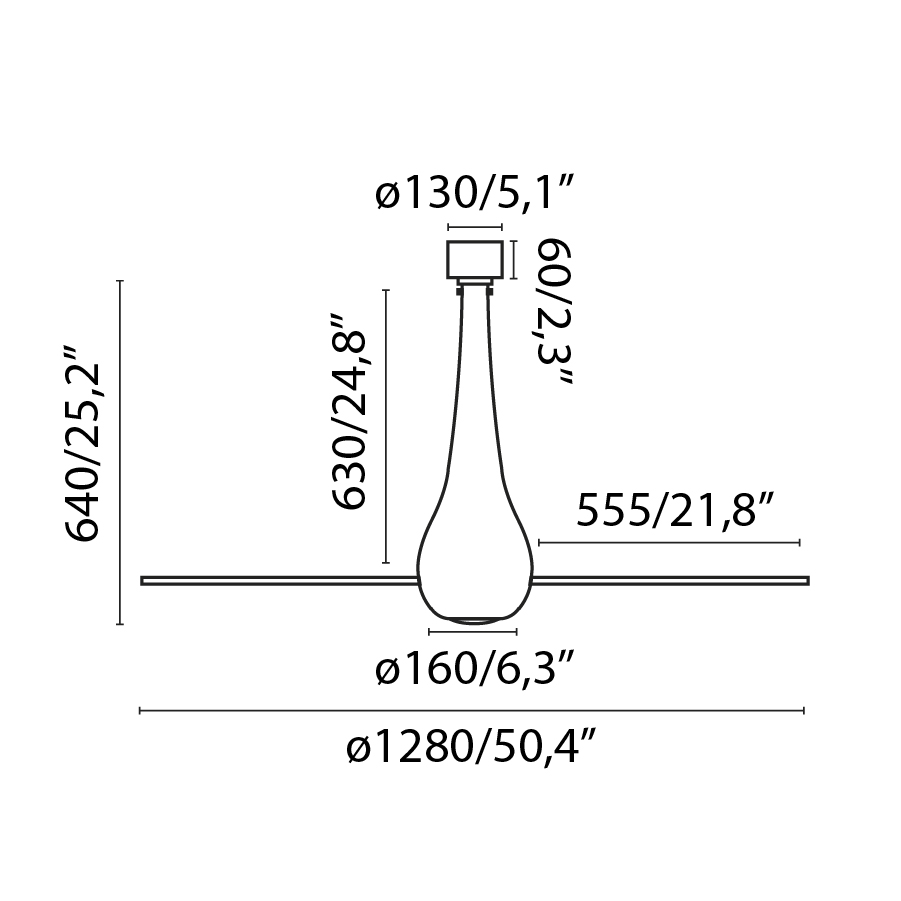

Dimensions and photometrics
See 3D projection
Load interactive experience
Download files
Download files
Technical data sheet
Images
Photometric
2D / 3D
BIM
