Home Collection ARCHITECTURAL RECESSED LAMP Ceiling ELIOS ORIENTABLE White module IP54 15W 15º 2700K
ELIOS ORIENTABLE White module IP54 15W 15º 2700K
Ref: 07015592711
Favourite
ELIOS is a versatile and adaptable collection of technical downlights. It incorporates advanced LED technology that combines high energy efficiency, visual comfort and CRI90. The ADJUSTABLE version allows you to direct its halo of light according to the needs of each space, with the option of rotating 365 degrees horizontally and 25 degrees vertically. It is necessary to purchase a frame to install the product. See under "Accessories".
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: II
IP: 54
voltage: 220V-240V
Power supply current: 350 mA
Hertz: 50/60Hz
Flush box dimensions : 275x275x115
Max. Power: 13,9W
Cutting size: ø 75mm
Control system: On/off
Minimum recessed height: 92mm
Material
Body/Structure: Aluminium + Aluminium
Finish
Body/Structure: Black+Black
Lighting characteristics
Light source included: Yes
Light source: COB LED
Dimmable: No
Maximum ceiling thickness: 25mm
Temperature: 2700K
Lumens: 477lm
CRI: 90
Lumen maintenance / LED lifespan: 50.000h L70 B10
Degrees of light aperture: 15º
Energy classification: F
Eficiencia: 62,09
Type of lighting: ACENTO
Incandescent filament: 650
Driver
Driver included: Yes
Power factor: 0.8
Accesories

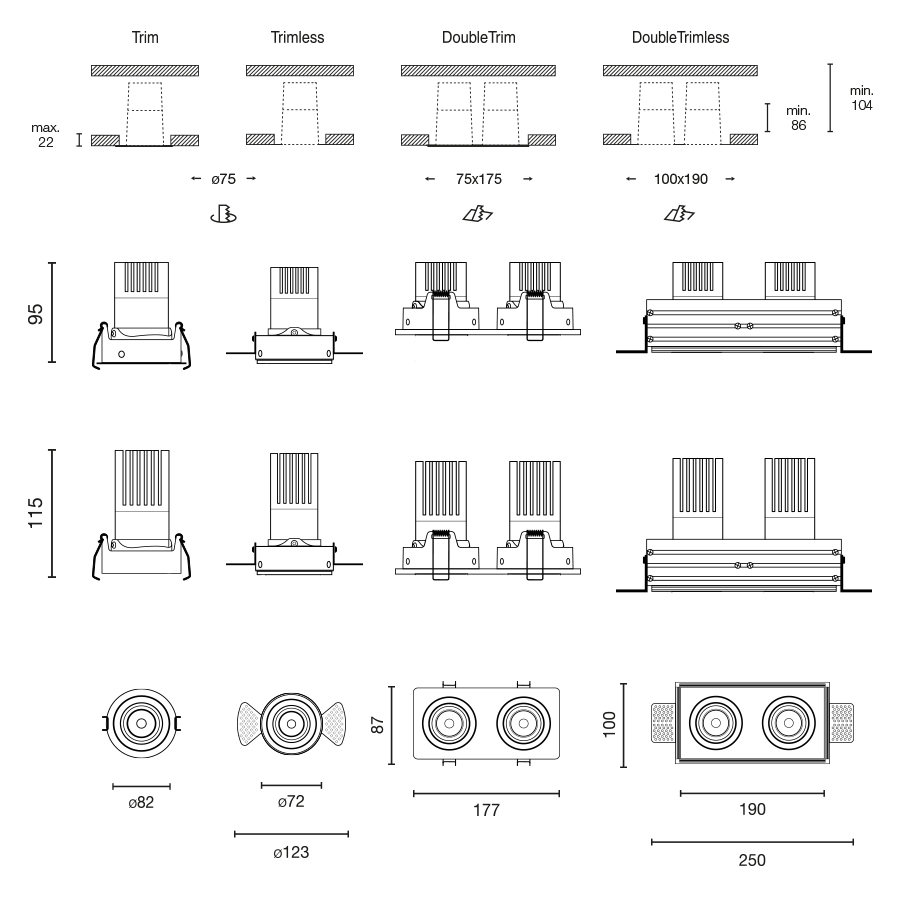

Dimensions and photometrics
See 3D projection
Load interactive experience
Download files
Download files
Instructions
Technical data sheet
Instructions
Images

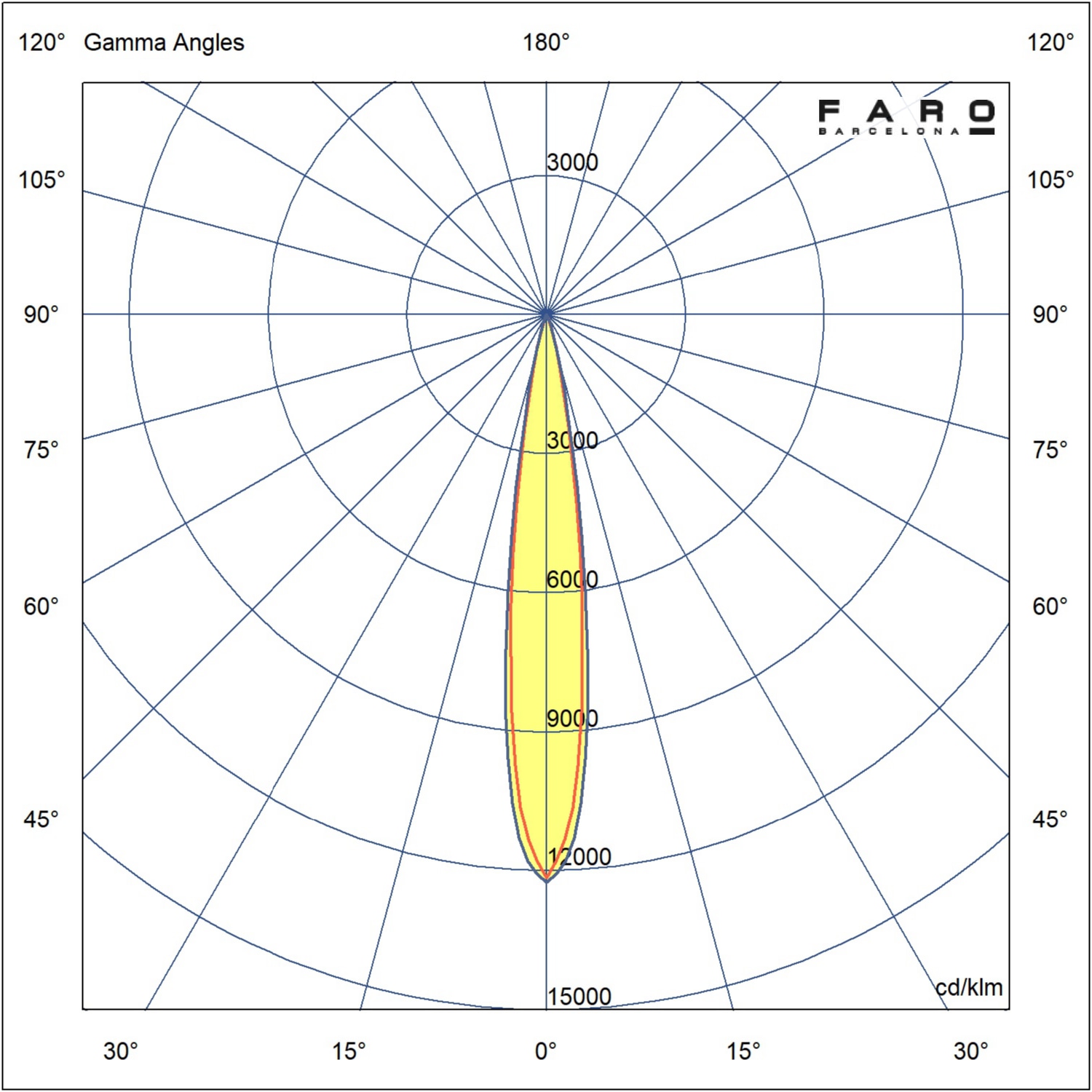

Photometric
