ELIOS FIX White module IP20 15W 50º 3000K

Related products

Ref: 07002593051

Favourite

ELIOS is a versatile and adaptable collection of technical downlights. It incorporates advanced LED technology that combines high energy efficiency, visual comfort and CRI90. The FIXED version is its simplest version, ensuring its stability. It is necessary to purchase a frame to install the product. See under "Accessories".

scroll to see more

Technical features

View technical sheet Download technical sheet Instructions

Specifications

Accesories

Specifications

General characteristics

Lighting characteristics

Driver

General characteristics

Fixation: Ceiling

Type: II

IP: 20

voltage: 220V-240V

Power supply current: 350 mA

Hertz: 50/60Hz

Flush box dimensions : 275x275x115

Max. Power: 13,9W

Cutting size: ø 75mm

Control system: On/off

Minimum recessed height: 92mm

Material

Body/Structure: Aluminium + Aluminium

Finish

Body/Structure: Black+Black

Lighting characteristics

Light source included: Yes

Light source: COB LED

Dimmable: No

Maximum ceiling thickness: 25mm

Temperature: 3000K

Lumens: 893lm

CRI: 90

Lumen maintenance / LED lifespan: 50.000h L70 B10

Degrees of light aperture: 50º

Energy classification: F

Eficiencia: 85,4

Type of lighting: ACENTO

Incandescent filament: 650

Driver

Driver included: Yes

Power factor: 0.8

Accesories

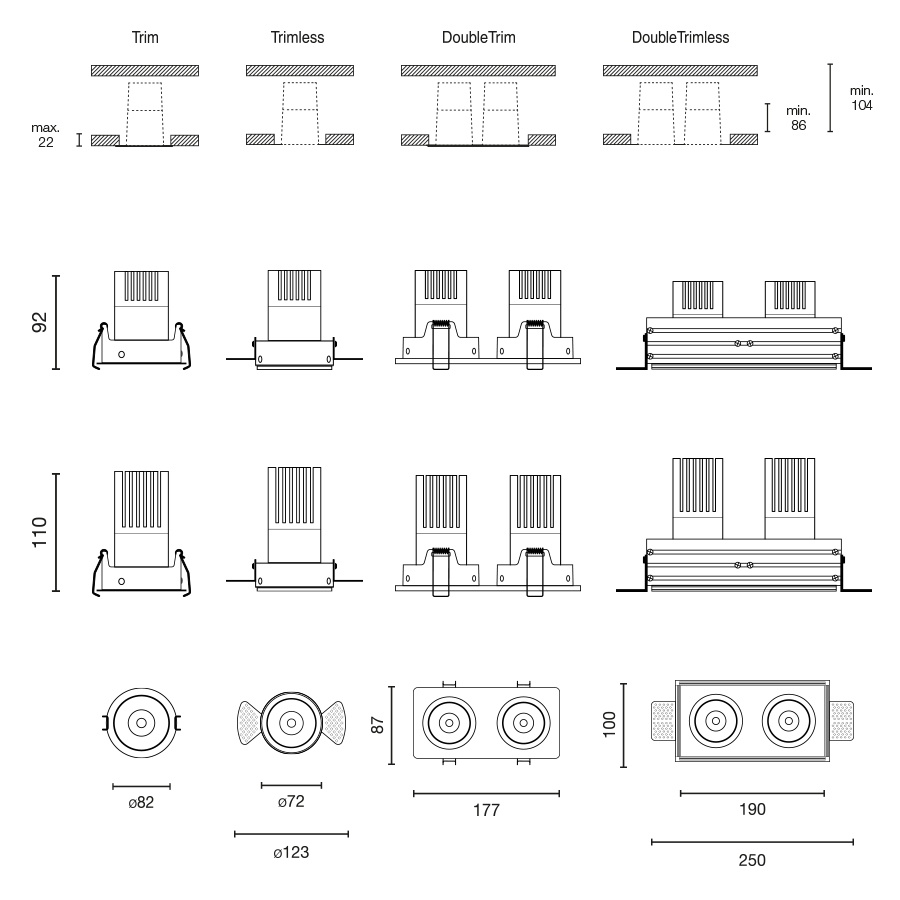

Dimensions and photometrics

See 3D projection

Load interactive experience

See now

Download files

Instructions

Technical data sheet

Instructions

Images

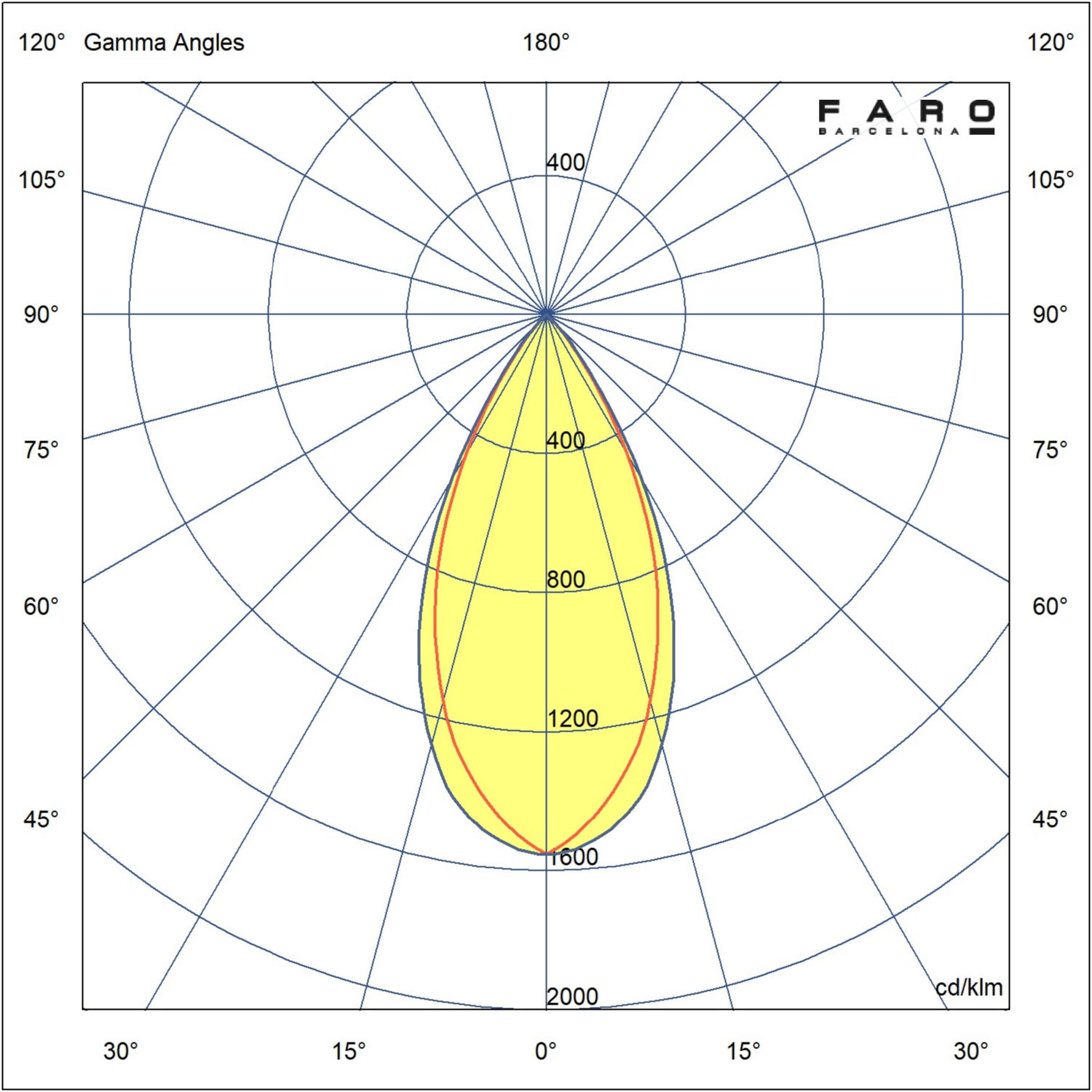

Photometric
