DEEP60 Downlight square without frame white 36° 2700K honeycomb

Related products

Ref: 3043592731H

Favourite

Square trimless white downlight. DEEP is a series of recessed luminaires designed for lighting retail and work spaces. 36º version. The Honeycomb diffuser allows a light projection with less glare.

scroll to see more

Technical features

View technical sheet Download technical sheet Instructions

Specifications

Recommended electrical equipment

Specifications

General characteristics

Lighting characteristics

Driver

General characteristics

Fixation: Ceiling

Type: III

IP: 23

voltage: 36V

Power supply current: 350 mA

Hertz: 50/60Hz

Flush box dimensions : 120x120x145

Max. Power: 11W

Cutting size: ø 85mm

Minimum recessed height: 150mm

Material

Body/Structure: Aluminium + Aluminium

Finish

Body/Structure: White

Lighting characteristics

Light source included: Yes

Light source: COB LED

Dimmable: Yes

Maximum ceiling thickness: 30mm

Temperature: 2700K

Lumens: 339lm

CRI: 90

Lumen maintenance / LED lifespan: 50.000h L90 B10

Degrees of light aperture: 36º

Type of lighting: ACENTO

Incandescent filament: 650

Driver

Driver included: No

Power factor: 0.8

Recommended electrical equipment

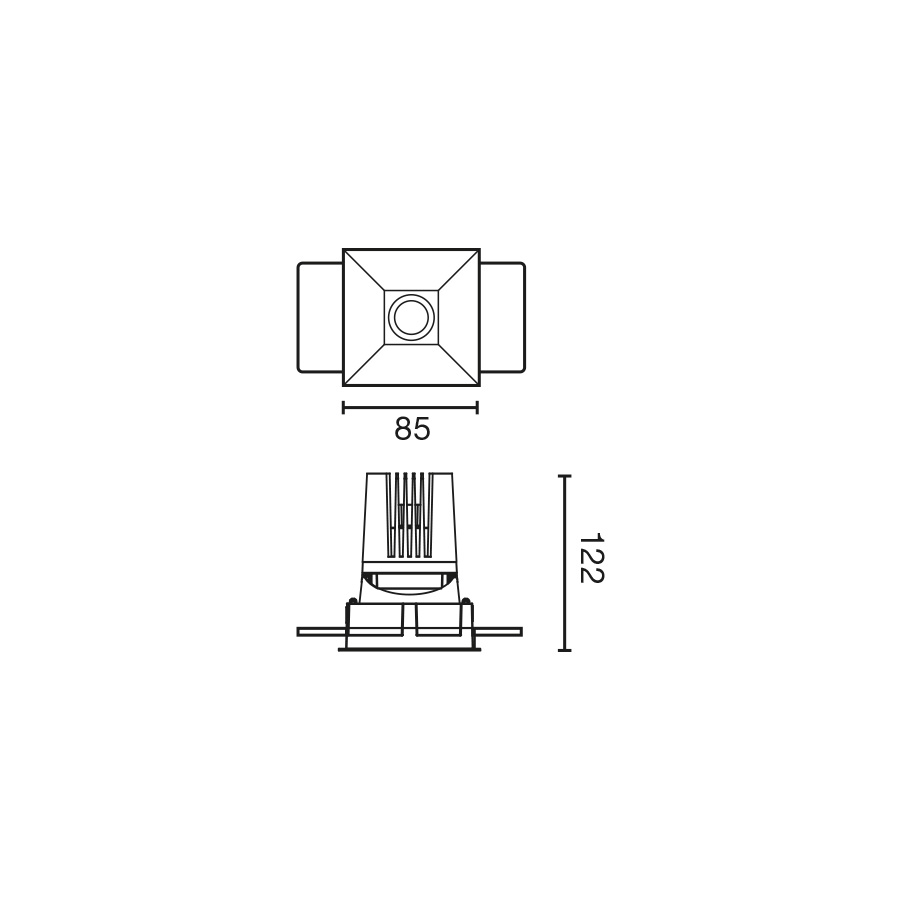

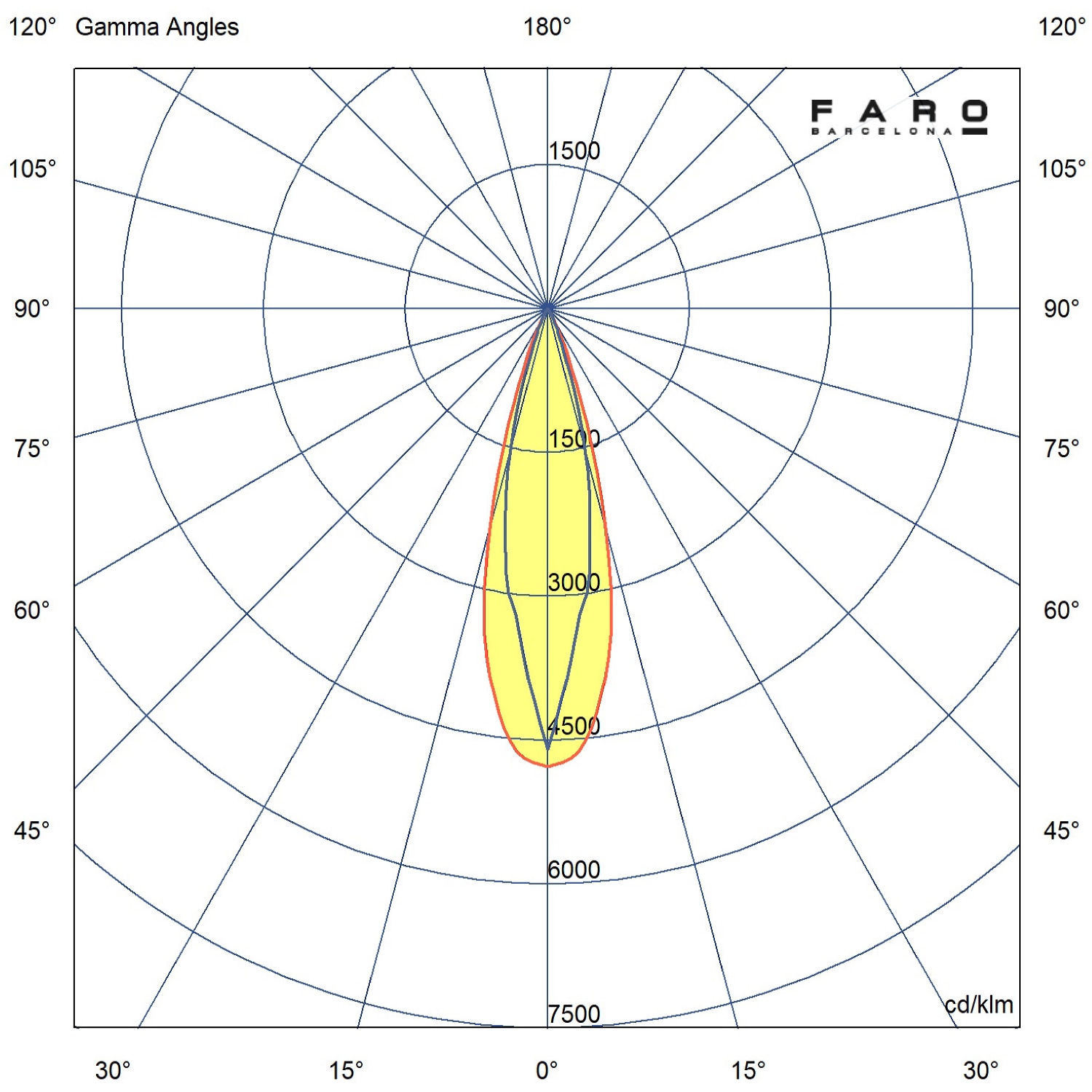

Dimensions and photometrics
