Home >  Collection >  ARCHITECTURAL >  RECESSED LAMP >  Ceiling >  DEEP60 Downlight square white 36° 2700K honeycomb
DEEP60 Downlight square white 36° 2700K honeycomb
Ref: 3033592731H
Favourite
Square white downlight. DEEP is a series of recessed luminaires designed for lighting retail and work spaces. 36º version. The Honeycomb diffuser allows a light projection with less glare.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Recommended electrical equipment
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: III
IP: 23
voltage: 36V
Power supply current: 350 mA
Hertz: 50/60Hz
Flush box dimensions : 120x120x145
Max. Power: 11W
Cutting size: ø 85mm
Minimum recessed height: 150mm
Material
Body/Structure: Aluminium + Aluminium
Finish
Body/Structure: White
Lighting characteristics
Light source included: Yes
Light source: COB LED
Dimmable: Yes
Maximum ceiling thickness: 30mm
Temperature: 2700K
Lumens: 339lm
CRI: 90
Lumen maintenance / LED lifespan: 50.000h L90 B10
Degrees of light aperture: 36º
Type of lighting: ACENTO
Incandescent filament: 650
Driver
Driver included: No
Power factor: 0.8
Recommended electrical equipment
DRIVER 3-38W 300-1050mA DC10-54V Casambi See more
Architectural
DRIVER 3-38W 300-1050mA DC10-54V Casambi
Reference: 98310538
0.38-36W 350mA 2.5-50VDC DALI IND driver See more
Architectural
0.38-36W 350mA 2.5-50VDC DALI IND driver
Reference: 98310136D
Driver 6-8W 200mA DC 29-40V TRIAC C See more
Architectural
Driver 6-8W 200mA DC 29-40V TRIAC C
Reference: 98310509C
Driver 10-14W 350mA DC 29-40V TRIAC C See more
Architectural
Driver 10-14W 350mA DC 29-40V TRIAC C
Reference: 98310114C

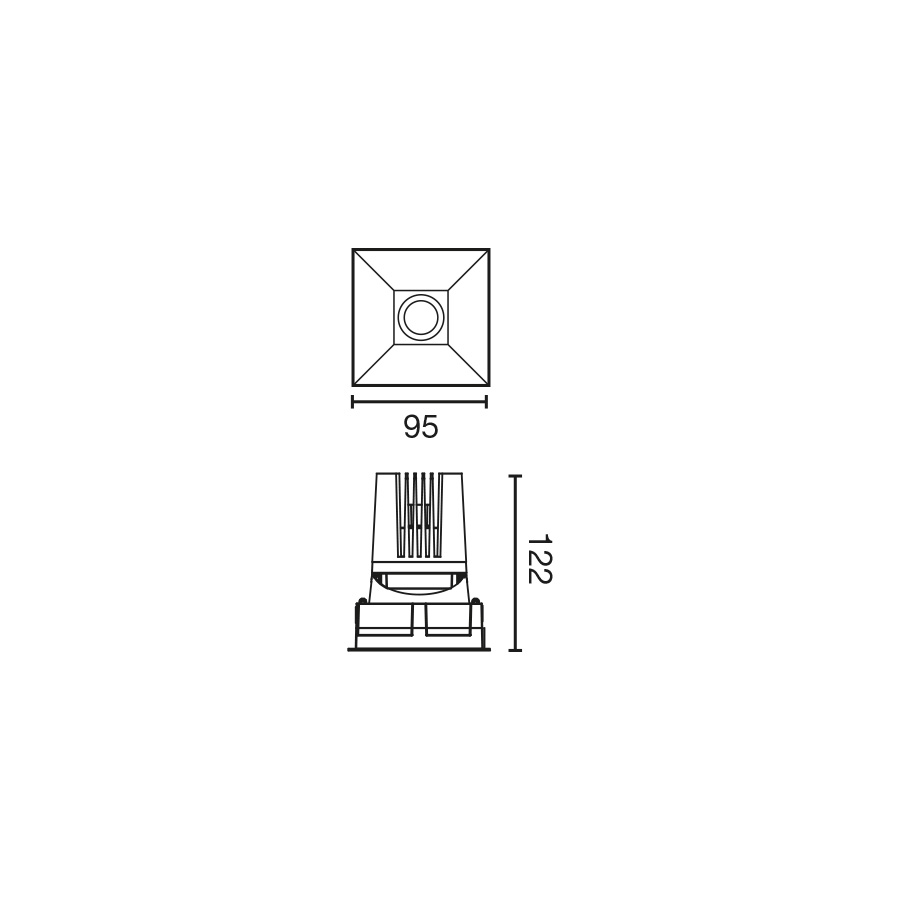

Dimensions and photometrics

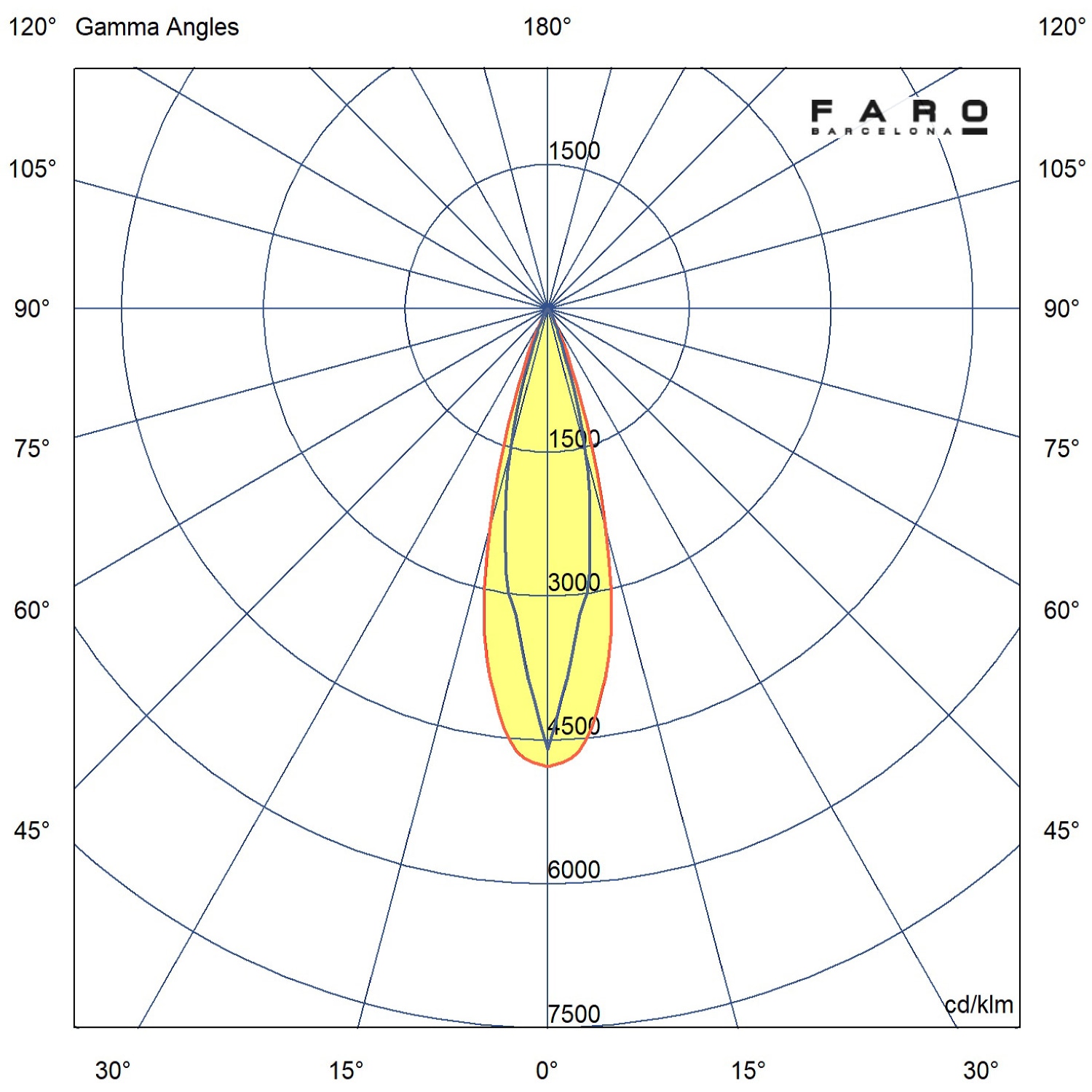

Technical drawing Photometric
