Ref: 3033592712
Favourite
Square black downlight. DEEP is a series of recessed luminaires designed for lighting retail and work spaces. The 15° version is ideal for spot lighting.
Related products
Catalog
Technical features
View technical sheet
Download technical sheet
Instructions
Specifications
Recommended electrical equipment
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
III
IP:
23
voltage:
36V
Power supply current:
350 mA
Hertz:
50/60Hz
Flush box dimensions :
120x120x145
Max. Power:
11W
Cutting size:
ø 85mm
Minimum recessed height:
150mm
Material
Body/Structure:
Aluminium + Aluminium
Finish
Body/Structure:
Black
Lighting characteristics
Light source included:
Yes
Light source:
COB LED
Dimmable:
Yes
Maximum ceiling thickness:
30mm
Temperature:
2700K
Lumens:
466lm
CRI:
90
Lumen maintenance / LED lifespan:
50.000h L90 B10
Degrees of light aperture:
15º
Type of lighting:
ACENTO
Incandescent filament:
650
Driver
Driver included:
No
Power factor:
0.8

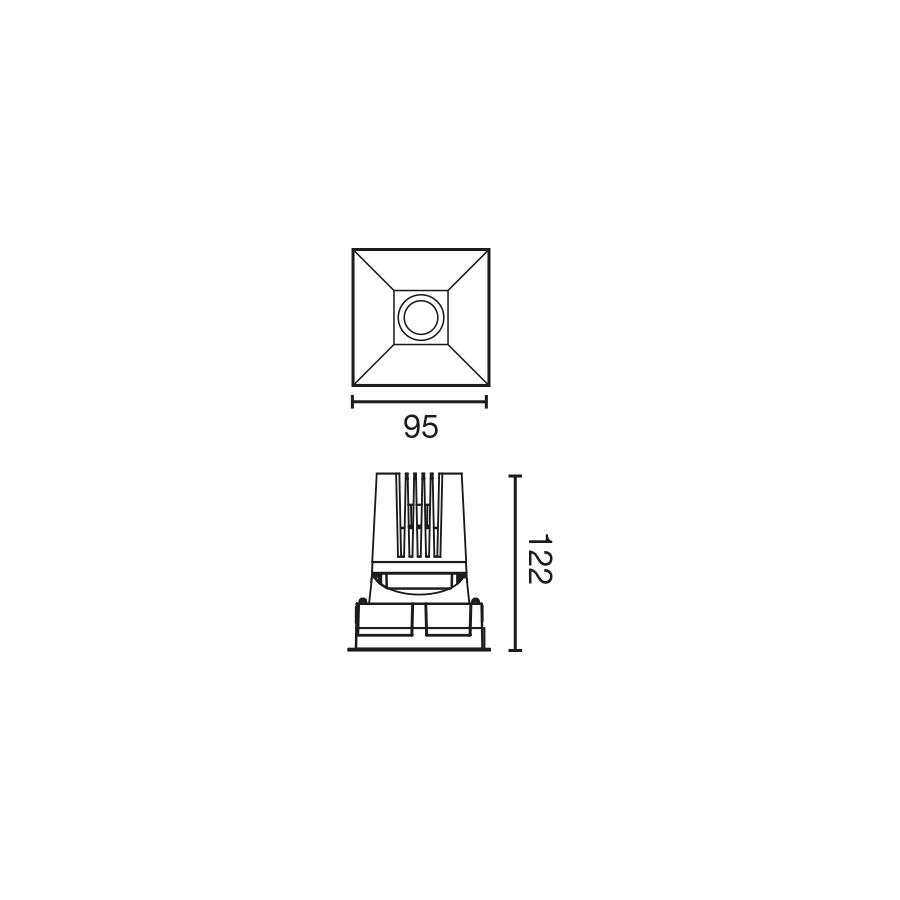

Dimensions and photometrics
Download files
Download files
Technical data sheet
Instructions
Images

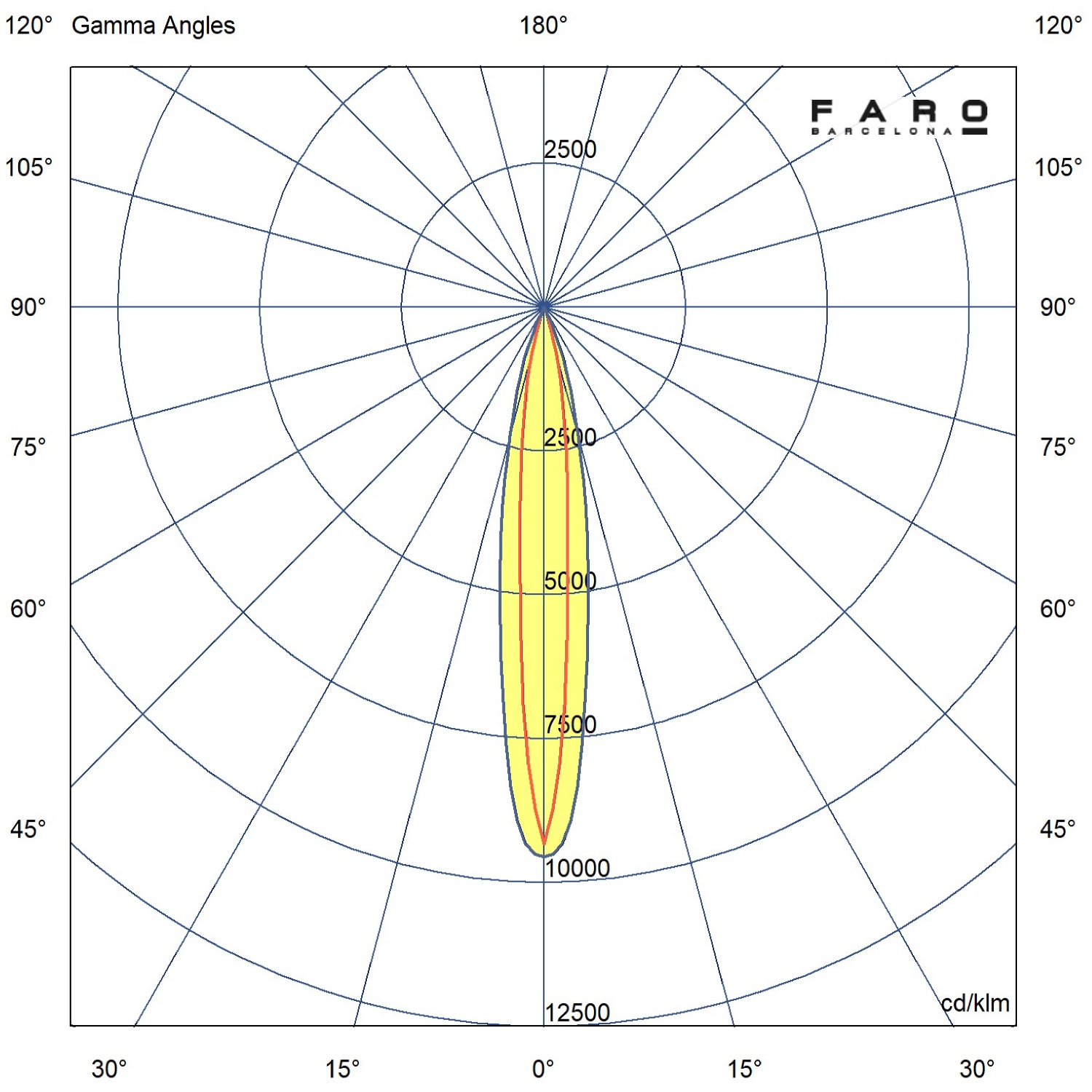

Photometric
