Cruiser is a ceiling fan surface in blade finish aluminum, with size L. Equipped with a motor DC, it offers 5 adjustable speeds and is suitable for sloped ceilings. Includes white wall control for a comfortable and functional 5‑speed operation. Ermöglicht die Auswahl und Fixierung der Farbtemperatur des integrierten LED‑Lichts.
Related products

Catalog
Wall controller white
Wired white rotary wall controller with 5 speeds. Direct control for fans without RF. Quick and reliable installation. Ask about the receiver compatible with your fan. For more information.
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “L” size fan is ideal for rooms between 17.6 and 28 m².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Installation for sloping ceilings
Suitable for sloping ceilings, which enables the shank to fall vertically so that the fan is always flat with respect to the ceiling and ensures the best operation and comfort.
Selectable color temperature and adjustable intensity
This fan includes a switch integrated into the light kit that allows you to set one of the 3 light color temperatures (2700K, 3000K or 4000K) at the time of installation. The intensity can be adjusted via a TRIAC control system.
Technical features
View technical sheet
Download technical sheet
Instructions
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
I
IP:
20
voltage:
220V-240V
Hertz:
50/60Hz
Max. Power:
20W
Fan Power (W):
4-6-10-17-24
Airflow (m3/min):
71-95-115-135-158
Airflow (CFM):
2524-3355-4052-4785-5584
RPM:
86-110-140-164-185
Reverse function:
No
Engine type:
DC
No. of blades:
3
Reversible blades:
No
Pitched ceiling:
Yes
Maximum tilt (º):
20
Downrod diameter:
26
Control system:
TRIAC
Light kit model:
Estándar
Material
Body/Structure:
Aluminium
Diffuser:
PMMA
Blade material:
Aluminium
Finish
Body/Structure:
Matt Black
Diffuser:
Opal
Blade finish:
Aluminium
Lighting characteristics
Light source:
SMD LED
Temperature:
2700/ 3000/ 4000K
Lumens:
806lm
CRI:
>80
Lumen maintenance / LED lifespan:
50.000h
Light direction:
Direct
Energy classification:
F
Additional information
Length of the included rods :
100
Optional downrod model:
Universal 26mm

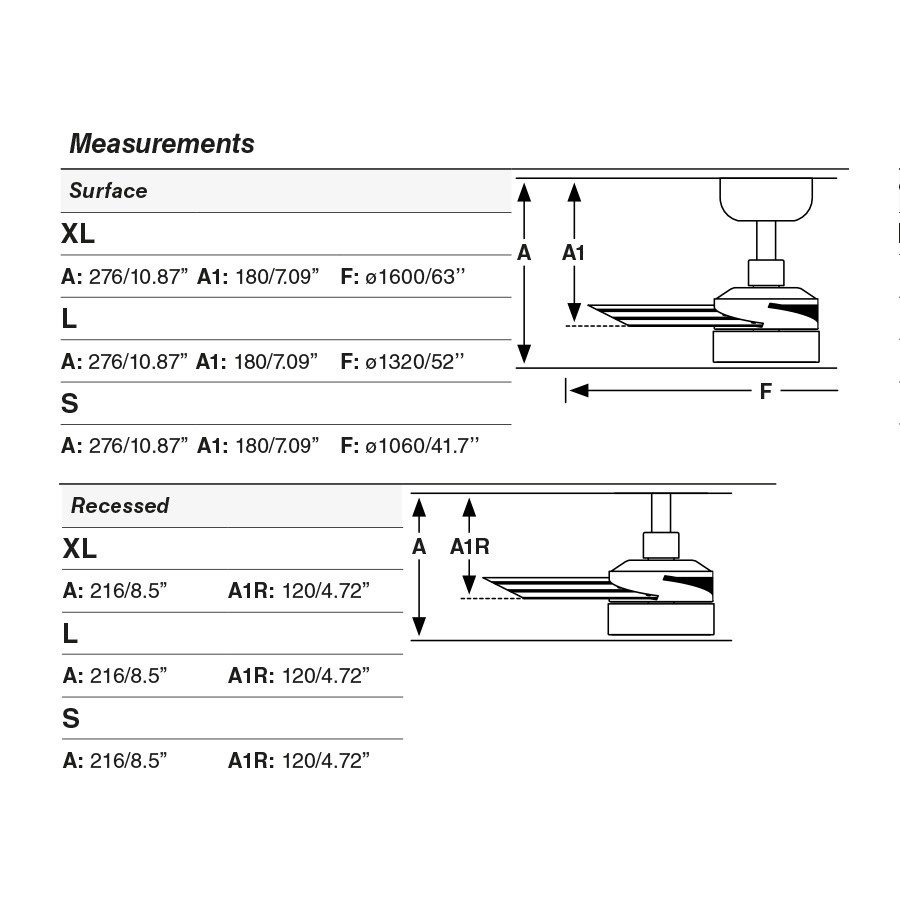

Measures
