BIGWOOD 24 is a ceiling fan surface in blade finish walnut, with size XXL. Equipped with a motor DC and it offers 5 adjustable speeds. Includes white wall control for a comfortable and functional 5‑speed operation.
Related products
Catalog
Wall controller white
Wired white rotary wall controller with 5 speeds. Direct control for fans without RF. Quick and reliable installation. Ask about the receiver compatible with your fan. For more information.
FSC wood certification
Its blades are made of FSC wood, which guarantees that it comes from responsibly managed forests.
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “XXL” size fan is ideal for rooms larger than 39 m².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Technical features
View technical sheet
Download technical sheet
Instructions
General characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
I
IP:
20
voltage:
220V-240V
Hertz:
50/60Hz
Fan Power (W):
7-11-18-26-38
Airflow (m3/min):
207-264-338-380-401
Airflow (CFM):
7314-9330-11944-13423-15563
RPM:
32-46-60-73-80
Reverse function:
No
Engine type:
DC
No. of blades:
5
Reversible blades:
No
Pitched ceiling:
No
Maximum tilt (º):
20
Downrod diameter:
26
FSC/PEFC Wood with certificate:
Si
Material
Body/Structure:
Steel
Blade material:
Pine Wood
Finish
Body/Structure:
Matt Black
Blade finish:
Dark Walnut
Additional information
Length of the included rods :
100
Optional downrod model:
Universal 26mm

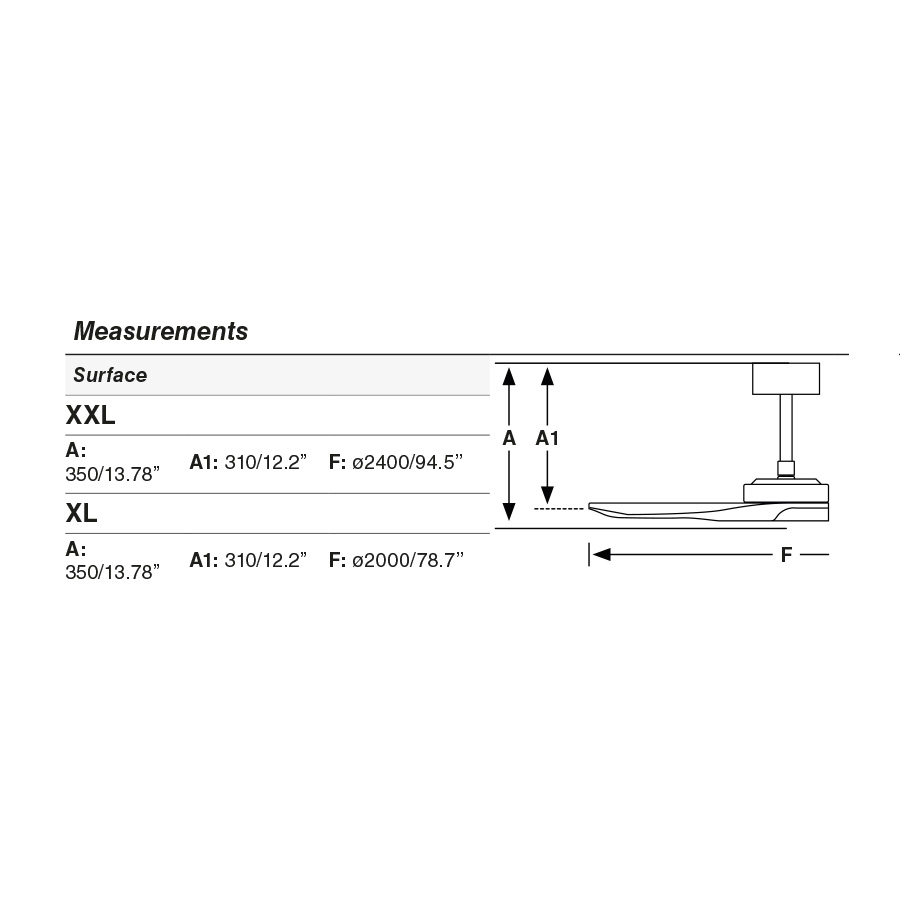

Measures
