Home Collection CEILING FANS WITHOUT LIGHT Ceiling ANDROS XXL Black fan
ANDROS XXL Black fan
Ref: 33414A
Favourite
Large ceiling fan with 6 aerodynamic blades which increase the feeling of freshness and a ground-breaking design. ANDROS is a modern black ceiling fan, ideal for the ventilation of rooms over 39m2. Activated by remote control. This ceiling fan with DC motor has 6 adjustable speeds. This fan comes with a reverse function summer-winter, so you can also use it in winter, improving the efficiency of your heating system. Airflow: 406.40 m3 min / 14352 CFM. This ceiling fan is suitable for inclining roof.
scroll to see more
Reverse function
Thanks to the reverse function, you can change the direction of the fan blades and use it both in summer and in winter. In summer, it will help achieve a cool atmosphere and in winter it will improve the efficiency of the heating system by making the hot air that accumulates in the ceiling circulate.
How to activate the fan
It has a remote control which will allow you to control your fan in a more comfortable and simpler way.
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “XXL” size fan is ideal for rooms larger than 39 m².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Installation for sloping ceilings
Suitable for sloping ceilings, which enables the shank to fall vertically so that the fan is always flat with respect to the ceiling and ensures the best operation and comfort.
Technical features
View technical sheet Download technical sheet Instructions
Specifications
General characteristics
Driver
General characteristics
Fixation: Ceiling
Type: I
IP: 20
voltage: 220V-240V
Hertz: 50/60Hz
Fan Power (W): 4-6-10-15-22-35
Airflow (m3/min): 406
Airflow (CFM): 14337
RPM: 30-41-53-64-74-88
Reverse function: Yes
Engine type: DC
No. of blades: 6
Reversible blades: No
Pitched ceiling: Yes
Maximum tilt (º): 15
Downrod diameter: 26
Additional rod including cable: No
Material
Body/Structure: Steel
Blade material: Aluminium
Finish
Body/Structure: Matt Black
Blade finish: Matt Black
Additional information
Length of the included rods : 230
Optional downrod model: Andros

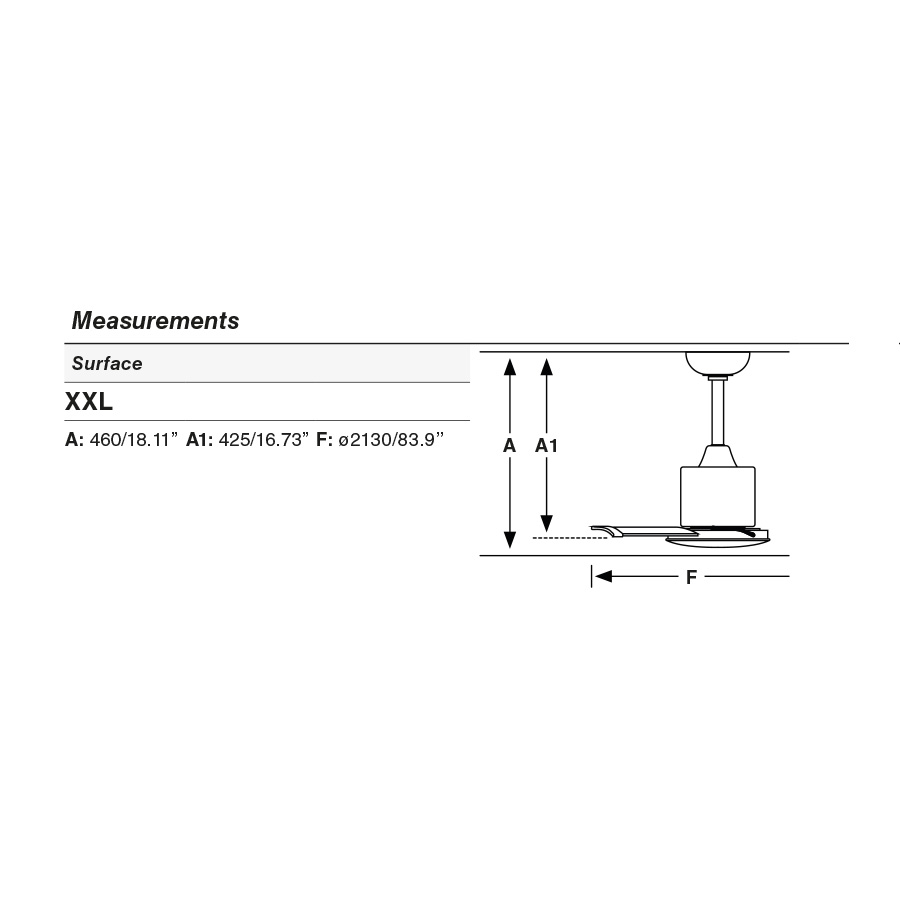

Measures
