ALO RECESSED LED L Ceiling fan white/pine TUYA 20W SWT
Ref: 33727DCSRWT
Favourite
Alo is a ceiling fan surface in blade finish pine, with size L. Equipped with a motor DC, it offers 6 adjustable speeds, features a reverse function and is suitable for sloped ceilings. Compatibility with TUYA systems allows its integration via home‑automation and remote‑control solutions. Allows selecting and setting the colour temperature of the integrated LED light.
scroll to see more
Reverse function
Thanks to the reverse function, you can change the direction of the fan blades and use it both in summer and in winter. In summer, it will help achieve a cool atmosphere and in winter it will improve the efficiency of the heating system by making the hot air that accumulates in the ceiling circulate.
How to activate the fan
Control your fan with the TUYA application. This intelligent control has the same functionalities as a remote control. It operates with 2.4 GHz WIFI. It is compatible with Alexa and Google Assistant. Discover its advantages here.
FSC wood certification
Its blades are made of FSC wood, which guarantees that it comes from responsibly managed forests.
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “L” size fan is ideal for rooms between 17.6 and 28 m².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Installation for sloping ceilings
Suitable for sloping ceilings, which enables the shank to fall vertically so that the fan is always flat with respect to the ceiling and ensures the best operation and comfort.
Selectable color temperature
This fan incorporates a switch integrated into the light kit that allows you to set one of the 3 light color temperatures (2700K, 3000K or 4000K) at the time of installation.
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: I
IP: 20
voltage: 220V-240V
Hertz: 50/60Hz
Max. Power: 20W
Fan Power (W): 6-10-13-19-26-35
Airflow (m3/min): 111-135-157-178-207-222
Airflow (CFM): 3943-4884-5554-6299-7312-7827
RPM: 97-120-136-158-179-196
Reverse function: Yes
Engine type: DC
No. of blades: 3
Reversible blades: No
Pitched ceiling: Yes
Maximum tilt (º): 20
Cutting size: 150mm
Downrod diameter: 26
Minimum recessed height: 160mm
FSC/PEFC Wood with certificate: Si
Fan memory: Yes
Confirmation sound on/off: Yes
Remote control lock on/off: Yes
Light kit model: Estándar
Material
Body/Structure: Steel
Diffuser: PMMA
Blade material: Pine Wood
Finish
Body/Structure: Matt White
Diffuser: Opal
Blade finish: Pine
Lighting characteristics
Light source: SMD LED
Maximum ceiling thickness: 26mm
Temperature: 2700/ 3000/ 4000K
Lumens: 806lm
CRI: >80
Lumen maintenance / LED lifespan: 50.000h
Light direction: Direct
Energy classification: F
Additional information
Length of the included rods : 100
Optional downrod model: Universal 26mm seaside
Accesories

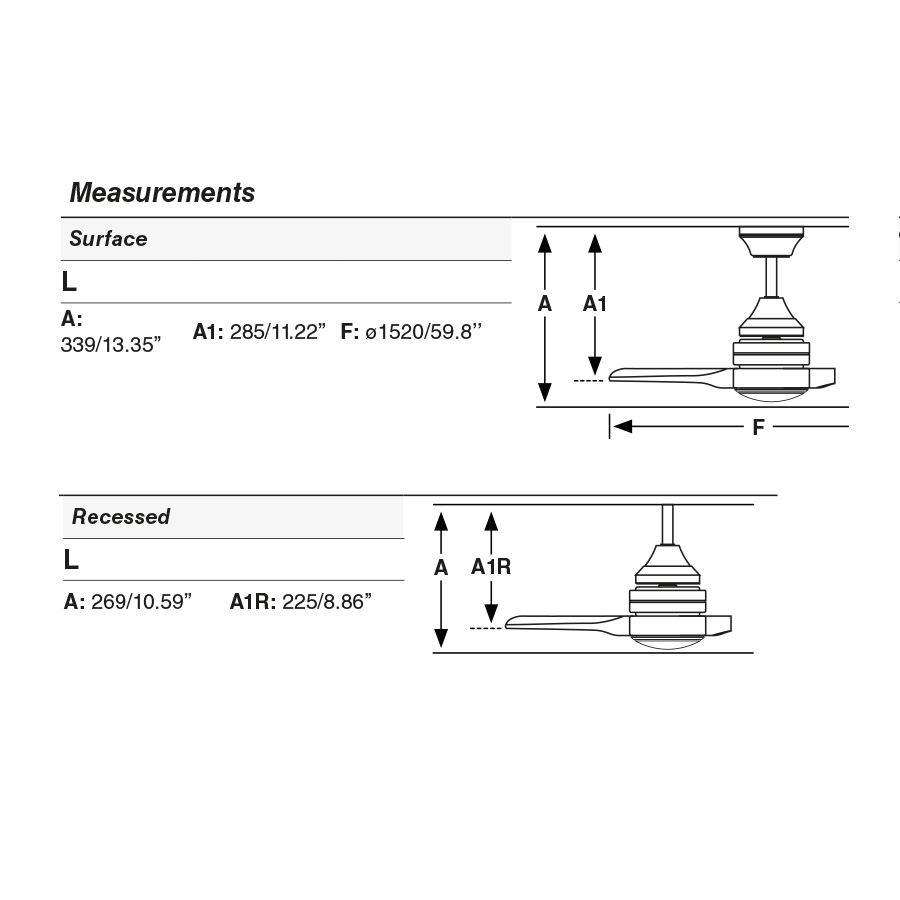

Measures
